ML-PS1

POWER SUPPLY

User manual

Table of Contents

Need help?

Do you have a question about the ML-PS1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Matrix Light ML-PS1

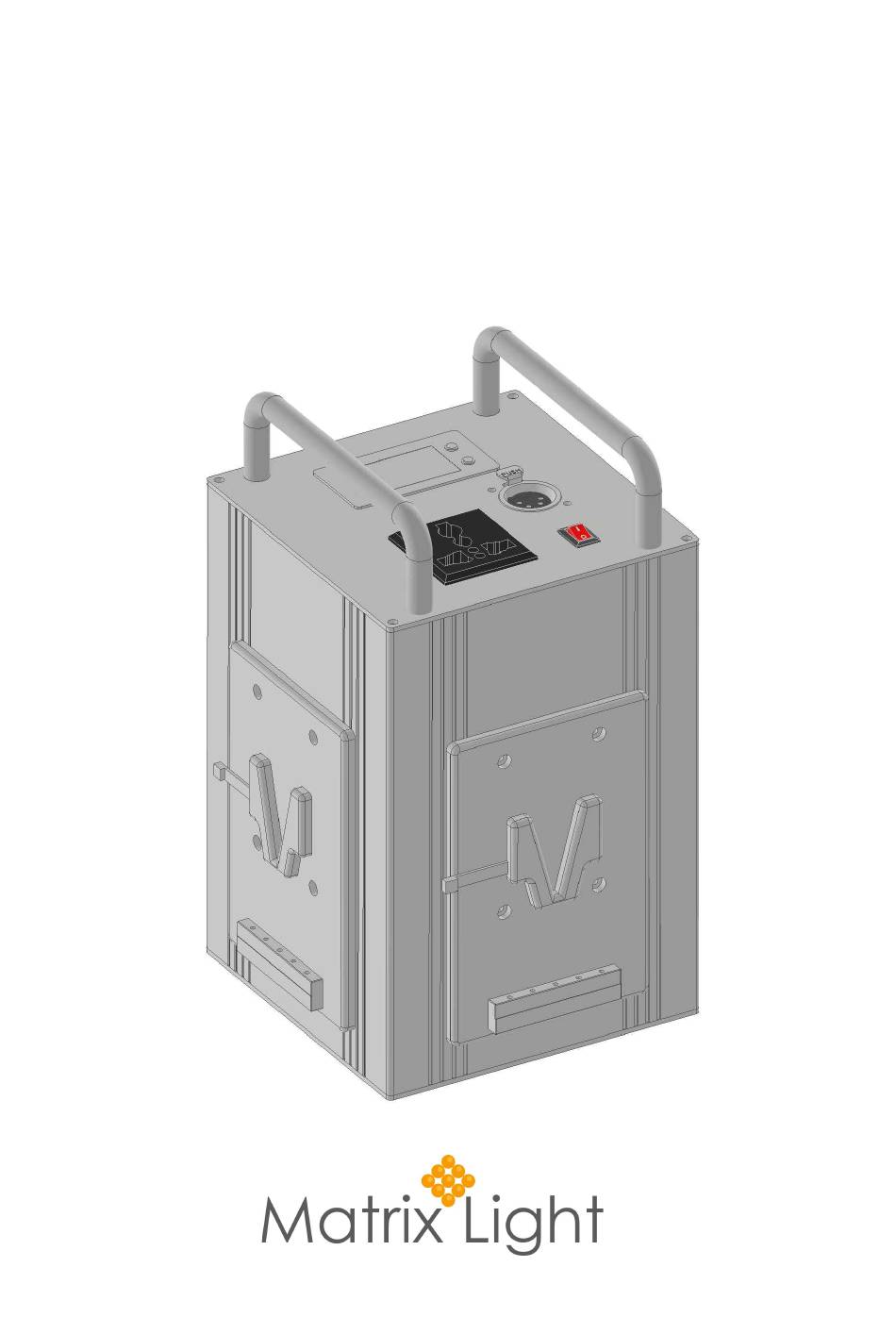

Page 1 ML-PS1 POWER SUPPLY User manual...
Page 2: Table Of Contents
02. BEFORE READING THE USER MANUAL ································································ 1 03. SAFETY AND WARNINGS ·························································································· 2 04. PACKAGE CONTENTS ································································································· 4 ML-PS1 FEATURES 01. ML-PS1 POWER SUPPLY FEATURES ········································································· 5 INSTALLING & OPERATION 01. ML-PS1 INSTALLATION & USAGE ············································································ 5 02. BATTERY DISPLAY SETTINGS ···················································································· 6 TROUBLESHOOTING 01.
Page 3: About Product
ML-PS1 allows Starlink™ satellite antennas to transmit breaking news from anywhere in the world at speeds of up to 25 Mbps. The ML-PS1 is designed to reliably power crucial broadcasting equipment anywhere, in any circumstance.
Page 4: Safety And Warnings
 Do not insert any metallic foreign objects into the DC connector of the ML-PS1. Risk of short circuit and damage to the connector.
Page 5  Exposure of the ML-PS1 to oil or moisture may cause electrical shock or fire.  Do not cover the bottom air vents of the ML-PS1 while it is operating. Doing so may shorten the lifespan of internal components and cause fires.
Page 6: Package Contents
Matrix Light ML-PS1 and fire.  Do not insert any objects into the air vents and power terminals of the ML-PS1. Risk of electric shock and fire. Power off and unplug all power connectors and accessories immediately if water or any foreign objects enter the ML-PS1. Then, contact the Matrix Light service center for repairs.
Page 7: Ml-Ps1 Features
When using four BP batteries at once, always replace either the 1st and 3rd or the 2nd and 4th batteries together when needed to ensure that the ML-PS1 continues to provide power via the remaining pair during the exchange.
Page 8: Battery Display Settings
Matrix Light ML-PS1 02. BATTERY DISPLAY SETTINGS ••• Battery Level Display Menu Setting 1. Press and hold the "set" button on the upper right corner of the battery level display for 2 seconds to enter the main menu. ☜ 2. Press the "set" button two times to enter menu 3, then press the power button below the "set"...
Page 9 Matrix Light ML-PS1 5. Press the "set" button once more to enter menu 6: low voltage warning. This setting outputs a warning sound if the battery voltage drops below the set low voltage threshold. To change the low voltage threshold from the default value referenced from menu 4, press the power button to increase each digit.
Page 10: Troubleshooting
● Product damages caused by natural disasters or user negligence are not covered by warranty. ● To claim warranty, please send the defective product and purchase receipt to the Matrix Light head office or authorized dealer, or visit the Matrix Light service center in person.
Page 11: Product Specifications
Matrix Light ML-PS1 03. PRODUCT SPECIFICATIONS••• ML-PS1 Power Supply Power Supply Input Range 24V DC / 16A / 400W (In case of Connect 4 BP Batteries) Power Supply Output Range 14,4V DC / 4A / 48W MAX 220V AC / 2A / 400W Max...
Page 12: After Sales Service
Matrix Light ML-PS1 04. AFTER SALES SERVICE ••• ● Please visit www.matrixlight.com or call 010-7232-2888 for after sales service inquiries in South Korea. ● Please visit www.matrixlight.com or email csmatrixlight@gmail.com for international after sales service inquiries. ● Please make sure to detail the product serial number, purchase date & location, and issue with the product for a faster service.
