Summary of Contents for ST-Lab N-1150

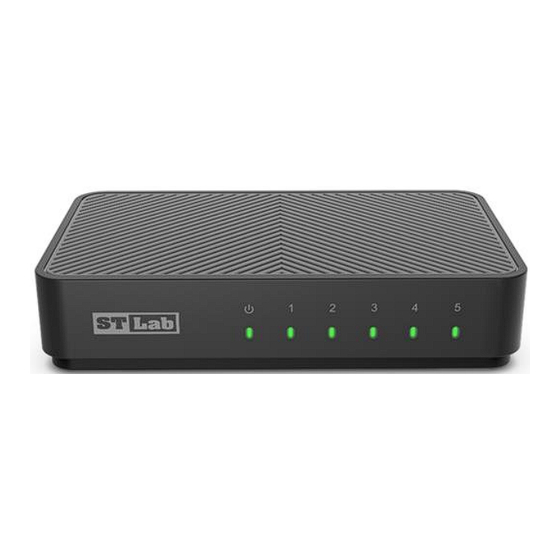

- Page 1 5-Port 2.5G 4-Speed Multi- Gigabit Unmanaged Switch User Manual Ver. 1.00 All brand names and trademarks are properties of their Respective owners.
-
Page 2: Features And Specification
Features & Specification Support jumbo frame up to 12KB Supports Auto-Negotiation for 10/100/1000/2500Mbps and duplex mode 16K-entry L2 MAC Address Table IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3bz、 IEEE802.3x 25Gbps switch capacity All- Plastic Housing Temperature : 0 ~ 40 C ;... -
Page 3: Package Contents
Package Contents 1 x 5-Port 2.5G 4-Speed Multi-Gigabit Unmanaged Switch 1 x AC/DC Power Adapter 1 x User Manual MN5000000117 Page 3... -
Page 4: Front And Back Panels
Front and Back Panels 5-Port 2.5G 4-Speed Multi-Gigabit Unmanaged Switch Front Panel LED Indicators The following table provides descriptions of the LED status and their meaning. Color Status Description Power Green The power of the Switch is ON A valid connecting with 2.5Gbps 2.5G Link/Act Green Blinking... -
Page 5: Hardware Installation
Hardware Installation This stand-alone device will work with all operating systems without requiring any manual configuration. This switch features auto MDI-X ports that intelligently detect the cable type connected to each port. Based on this detection, the switch automatically adjusts the port polarity to establish a link –...
