Summary of Contents for Jegs 80519

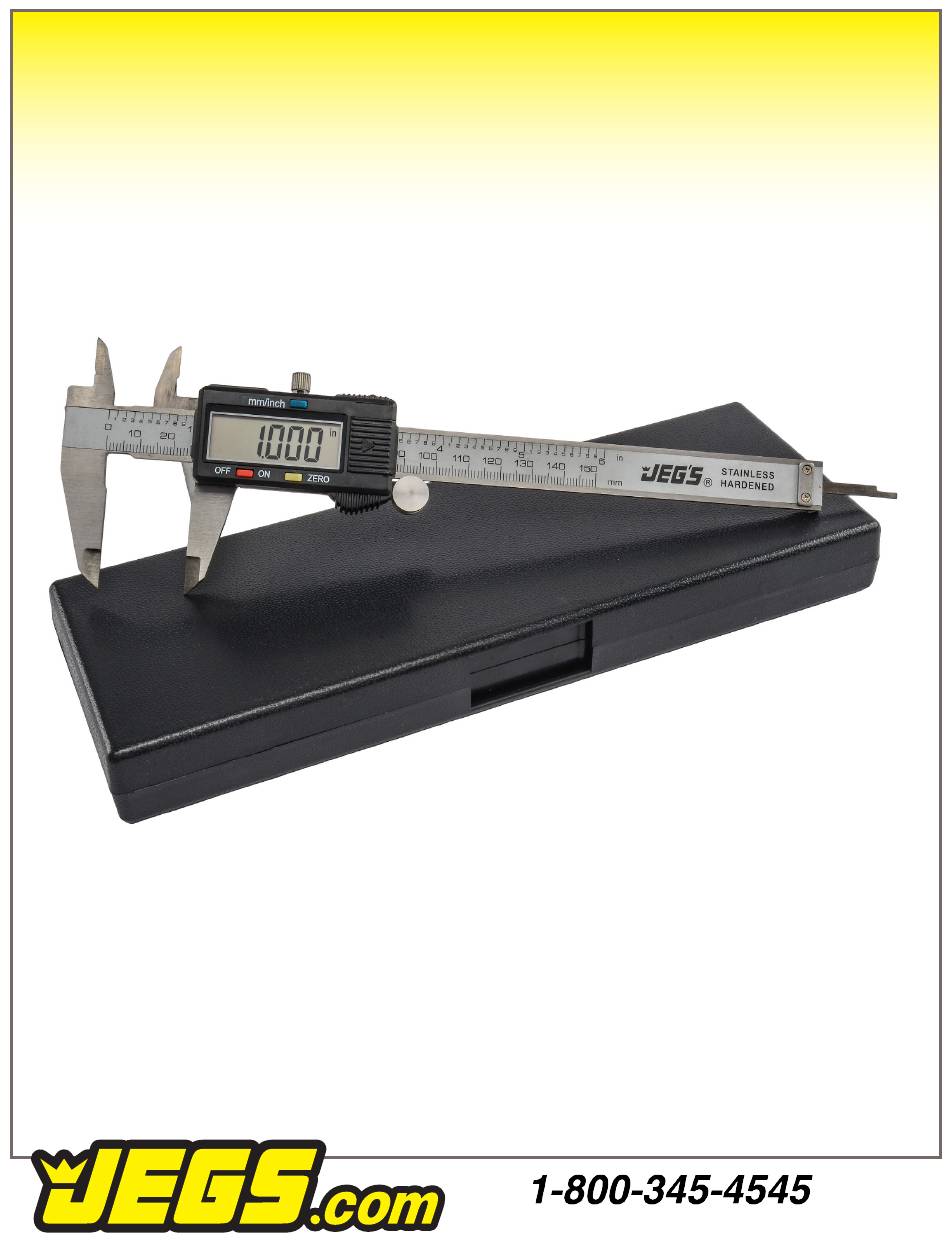

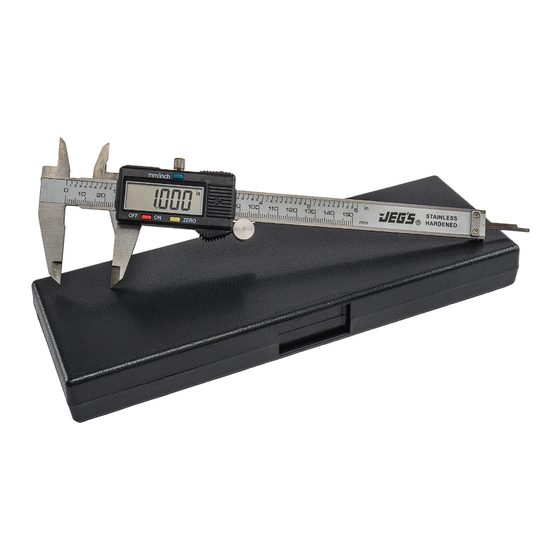

- Page 1 Installation Guide for 80519 Digital Caliper 6 in. (150 mm) Length...
- Page 2 Table of Contents Features..............02 Instructions............04 Read Before Installation........03 Battery Replacement........04 Technical Specifications.........03 Maintenance.............04 Troubleshooting..........03...
- Page 3 Features 14 10 External Measuring Jaws Output Connector Internal Measuring Jaws LCD Display Depth Blade Slider Clamp Screw Step Measuring Faces Thumb Roller ON/OFF Switch Beam Zero Switch SAE & Metric Scale SAE & Metric Conversion Switch Battery Compartment...
-
Page 4: Read Before Installation
Technical Specifications Read Before Installation Thank you for your purchase of this JEGS 6 in. Measuring Range: 0-6 in. (0-150 mm) digital caliper. Resolution: 0.0005 in. (0.01 mm) Before using, please be sure to verify that the cal- Accuracy: ±0.001 in. (±0.02 mm) iper is fully functional. -
Page 5: Battery Replacement
Instructions Outside Measurement Depth Measurement Battery Replacement A flashing display indicates a low battery. To replace the battery: Step Measurement • Remove the battery cover by sliding it in the direction of the arrow • Pop out the battery • Install new battery with the (-) negative terminal facing down •...
