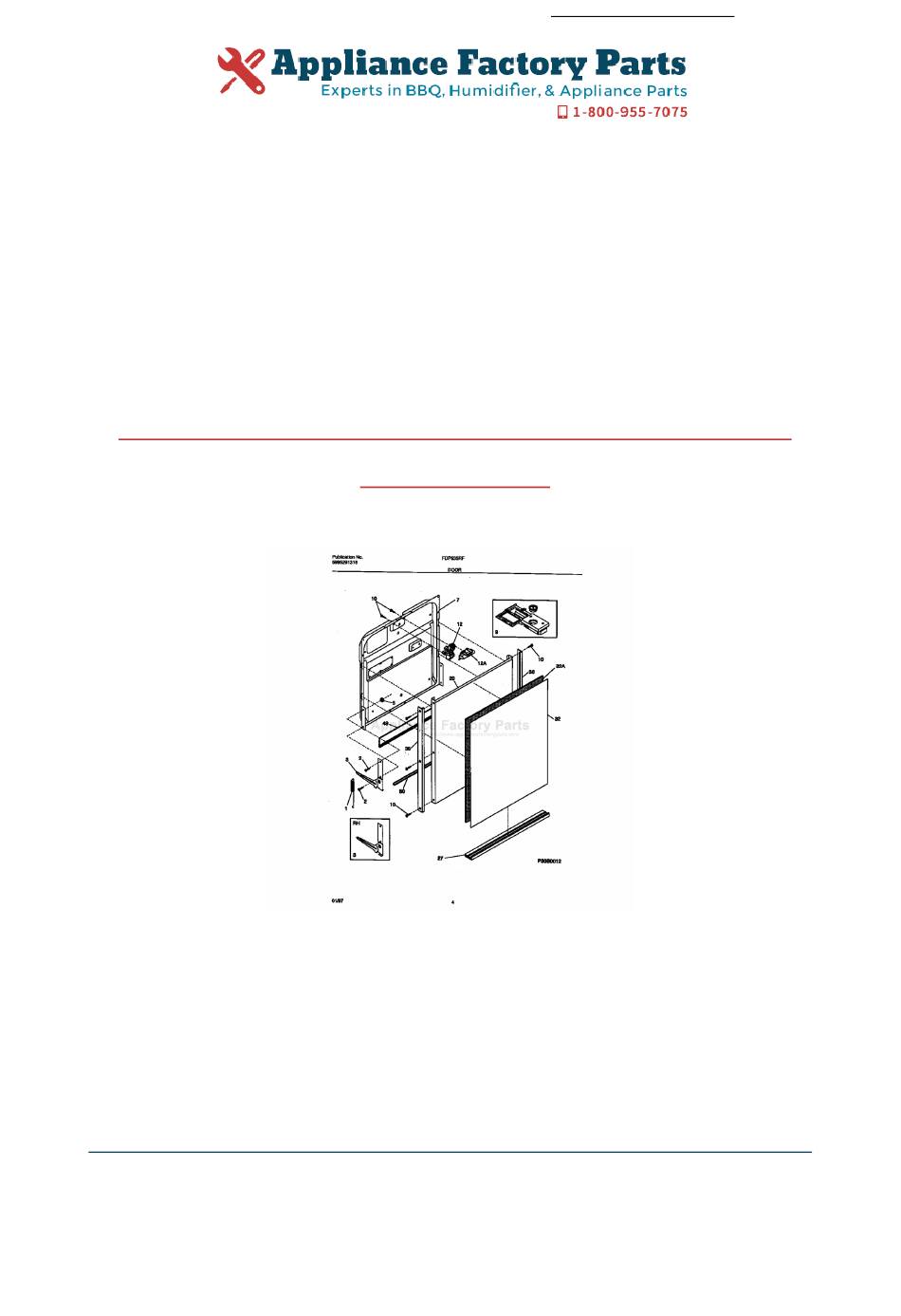

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Electrolux FDP635RFR1 Owner's Manual Shop genuine replacement parts for Electrolux FDP635RFR1 Find Your Electrolux Dishwasher Parts - Select From 406 Models -------- Manual continues below --------...
-
Page 2: Table Of Contents
(see Features page for location) Dishwashing Problems . 15-17 Questions?1-800-944-9044 Consumer Services (United States) 1-800-661-9913 Warranty & Service ......18-19 Versión en español ......18 (Canada) Visit Frigidaire Company's Web Site at http://www.frigidaire.com READ AND SAVE THESE INSTRUCTIONS P/N 154255602 (9704) -
Page 3: Important Safety Instructions
Important Safety Instructions • Use only detergents and rinse agents recommended for use in a dishwasher. This symbol will help alert you to such • Store dishwasher detergent and rinse dangers as personal injury, burns, fire and agents out of the reach of children. electrical shock. -
Page 4: Dishwasher Features
Dishwasher Features Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. Each cycle begins with a pre-drain. Next, the dishwasher fills with water covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water is pumped out and replaced with clean water. -
Page 5: Normal Operating Sounds
Operating Instructions Vent Latch Getting Started Very Important 1. Load dishwasher (See Preparing and Loading Dishes). Information— Read Before 2. Add detergent (See Dishwasher Dispenser & Detergents). Operating Your Dishwasher! 3. Add rinse aid, if needed (See Rinse Aid). 4. Turn dial clockwise to select cycle (See Wash Cycle Selections) or number of hours for delay Normal Operating start. -
Page 6: Operating Instructions
Operating Instructions (continued) • Turn dial to POTS & PANS/HEAVY WASH. dishwasher detergent to clean food grease and • Select HI-TEMP WASH ON option. soil from dishes. HI-TEMP WASH ON option • Select other desired OPTIONS. can be used with any cycle except RINSE/ HOLD. -
Page 7: Preparing And Loading Dishes
Preparing and Loading Dishes Dish Preparation Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuous filtered wash system will remove remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups. Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of... -
Page 8: Loading The Bottom Rack
Preparing and Loading Dishes (continued) Loading the Bottom Rack Make sure tall items do not block spray arm rotation. Place plates and platters so that they do not touch. Place bowls, casseroles and sauce pans with the soiled surface facing down or toward the center. -
Page 9: Dishwasher Dispenser And Detergents
Dishwasher Dispenser & Detergents • Use only fresh automatic dishwashing Filling the Detergent Dispenser detergent. Other types will cause The detergent dispenser has one covered and oversudsing. one uncovered cup. Detergent in the • Add detergent just before starting cycle. uncovered cup falls into the dishwasher when •... -
Page 10: Dishwasher Dispenser
Dishwasher Factors Affecting Dispenser & Performance Detergents (continued) Water Pressure Rinse Aid Rinse aid greatly improves drying and The hot water line to dishwasher must provide reduces water spots and filming. Water water pressure between 20 and 120 psi. "sheets" off dishes rather than forming water Low water pressure may occur when laundry or droplets that cling and leave spots. -
Page 11: Care And Cleaning
Care and Cleaning Overfill Protector keeps dishwasher from — overfilling and is located in the left front corner of the tub. Burn Hazard • Clean occasionally with household cleaner Allow heating element to cool containing vinegar or bleach to dissolve before cleaning the interior. - Page 12 Care and Cleaning (continued) Property Damage Hazard Freezing temperatures may cause water lines to rupture. Be sure all supply lines to and circulating lines within dishwasher are protected. Failure to do so could result in property damage. Winterizing A dishwasher left in an unheated place should be protected from freezing.
-
Page 13: Dishwasher
Connecting and Disconnecting the Portable/ Convertible Dishwasher The portable/convertible dishwasher must be connected to a faucet and electrical outlet each time it is used. Follow directions on this page to properly connect dishwasher. IMPORTANT: Make sure door is latched before moving dishwasher. - Page 14 Connecting and Disconnecting the Portable/ Convertible Dishwasher (continued) Getting Water While Dishwasher is Running You can get water from the faucet while the Avoid fire hazard or electrical shock. dishwasher is connected. However, avoid getting Do not use an adapter plug, extension water when the dishwasher is filling or draining.
-
Page 15: Changing Color Panels
Changing Color Panels STEP 1 Cut Hazard Metal door panels are sharp and should be handled with care. Wear gloves to protect Color hands. Panel(s) Failure to do so can result in injury. Some models come with reversible door panel Bottom inserts which offer three decorative colors. -
Page 16: Solutions To Common Dishwashing Problems
Solutions to Common Dishwashing Problems • Avoid overloading and improper loading. Before calling for service, review this list. It (See Preparing and Loading Dishes.) may save you both time and expense. This • Use fresh detergent. Old detergent is list includes common experiences that are ineffective. - Page 17 Solutions to Common Dishwashing Problems (continued) Etching Vapor at Vent • Using too much detergent in soft or • Water vapor escapes from the vent when the softened water causes this film that cannot dishwasher goes into the drying part of be removed.
- Page 18 Solutions to Common Dishwashing Problems (continued) Removing Spots and Film Hard water can cause lime deposit buildup on the interior of the dishwasher. Dishes and glasses may also get spots and film for a number of reasons. (See Glassware/Flatware Spotted or Cloudy section.) To remove buildup, spots and film, clean using the following instructions: 1.
-
Page 19: Consumer Services
• read and follow all warning/safety instructions in the Extended Limited 2nd Year Warranty For two years from date of purchase, Frigidaire Company will instruction manuals and on the product. provide a replacement (or functional equivalent), for any part in the •... - Page 20 The warrantor however reserves the right to charge transportation and travelling costs for distances in excess of 48 kilometres (30 miles) from the nearest FRIGIDAIRE PARTS AND SERVICE authorized service depot.
- Page 21 Notes...
