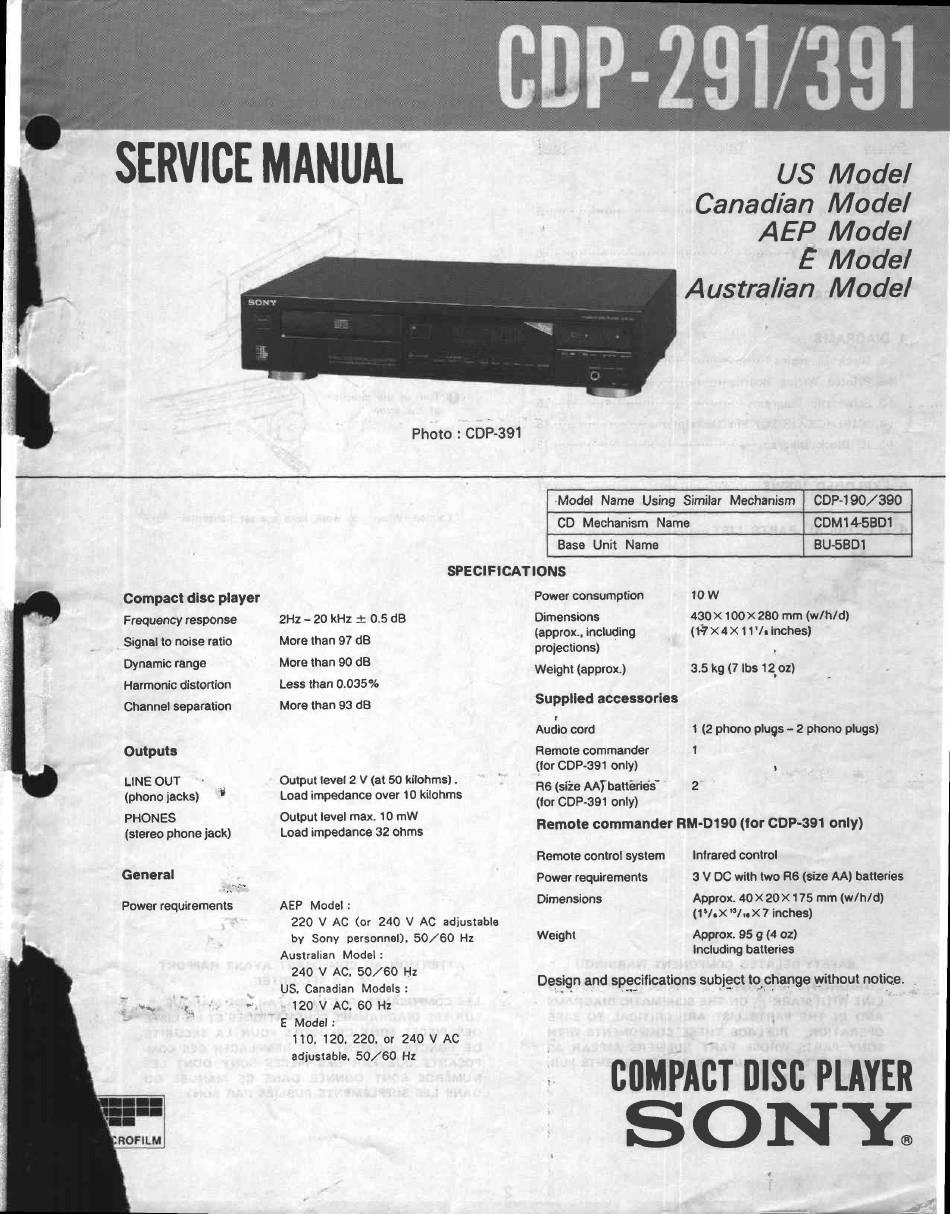

Sony CDP-291 Service Manual

SERIJICE
MANUAL
US Model
Canadian Model
AEP Model
E Model
Australian Model

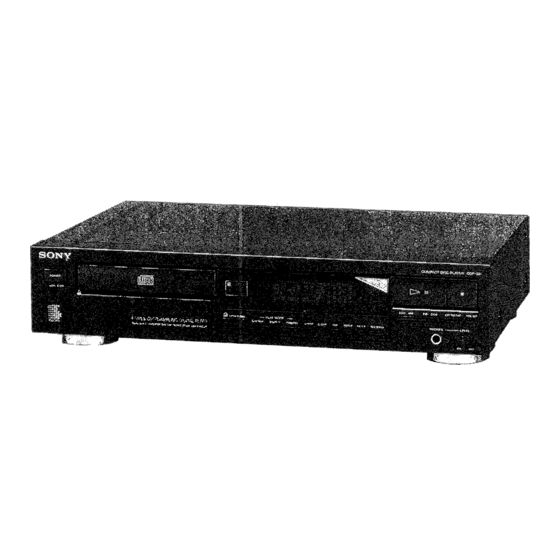

Photo : CDP-391
Model Name Using Similar Mechanism
cDP-l90,/390
CD Mechanism Name
CDM145BD1
Base Unit Name
BU.5BD1
SPECIFICATIONS
Compact disc plaYer
Freguency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Outputs
LINE OUT
(phonoiacks) il
PHONES
(stereo phone jack)
General
Power requirements
2Hz-2O kHz a 0.5 dB
More than 97 dB
More than 90 dB
Less than O.035"/"
More than 93 dB
Output levèl 2 V (at 50 kilohms).
Load impedance over 10 kilohms
Output level max. 10 mW
Load impedance 32 ohms
AEP Model :
220 V AC br 24Q V AC adiustable
by Sony personnel), 50,/60 Hz
Australian Model :
240 V AC, 50,260 Hz
US, Canadian Models :
120 V AC, 60 Hz
E Model :
1 1 0 , 1 2 0 . 2 2 0 , o r 2 4 0 V A C
adjusrable, 50/60 Hz
Power consumption
Dimensions
(approx., including
proiections)
Welght (approx.)
Supplied accessories
Audio cord
Remote commander
(lor CDP-391 only)
R6 (si2e Rnfuattêrie'd
(for CDP-391 only)
Remote commander RM-D190 (for CDP-391 only)
Remote control system
Power requirements
Dimensions
Weight
1 0 w
430x 100x280 mm (w/h/d)
1 t Z x a x l 1 ' / . i n c h e s )
3.5 kg (7 lbs 12 oz)
1 (2 phono plugs - 2 phono plugs)
1
t
2
Infrared control
3 V DC with two R6 (size AA) batteries
Approx. 40 x 20 X 1 75 mm (w/h/d)
(1tltX'tl'tX7 inches)
Approx. 95 g (4 oz)
Including batteries
Design and spccifications subiect to_..cltaftge
without notice.
COMPACT DISC PTAYE
SOI\TY
4:1.
