HEWITT 2000 Parts List And Installation Instructions

WARNING
Be sure power cord is unplugged from
electrical source when installing or
adjusting this product.
Remove load from winch prior to
beginning installation.
Hewitt Heavy Duty Electric Hoists are
designed only for use with Hewitt Lifts.
PARTS
(1) 20" Mounting Plate – LWHPMBS
(1) Small Gear Unit Only
with motor – LWHPGU2
(1) Cable Drum Spacer - LWHPCDS
(1) Cable Drum
For 2000lb. Lift – LWHPCD4000
(1) Replacement Motor
with Cord And Switch
For 110V 2000lb. Lift – LWHPM2000
For 24V 2000lb. Lfit - LWHPM6500-24
(1) Small Fiberglass Cover – LWHPCS
(1) Belt – LWHPB2
(1) Pulley – LWHPP
(1) Small Pulley 4500 – LWHPPS
HARDWARE BAG-LWHP2H
(2) Full Backing Plates – LWHPBPF
(2) 3/8" X 1-1/2" Carriage bolts – NB38112C
(2) 3/8" Washers – NW38FL
(2) 3/8" Nuts – NN38S
(4) 1/2" X 3-1/2" Bolts – NB12312G
(4) 1/2" X 4" Bolts – NB124G
(8) 1/2" Washers – NW12FL
(8) 1/2" Nuts – NN12S
(1) 5/16" Cable Clamp – L1CC5/16
(1) Instruction Sheet – NAASSYWHP2
STEP 2
Attach gear unit to mounting plate with two
3/8" x 1-1/2" carriage bolts, 3/8" washer,
and 3/8" nuts. (Side with gears faces away
from the lift).
STEP 3
Slide shaft of cable drum (with spacer tube)
into hole in center of gear unit and
fasten to mounting plate using
1/2" x 4" bolts, the small
backing plate, washers
and 1/2" nuts.
HEWITT MACHINE & MFG, INC.
Parts List/Installation Instructions

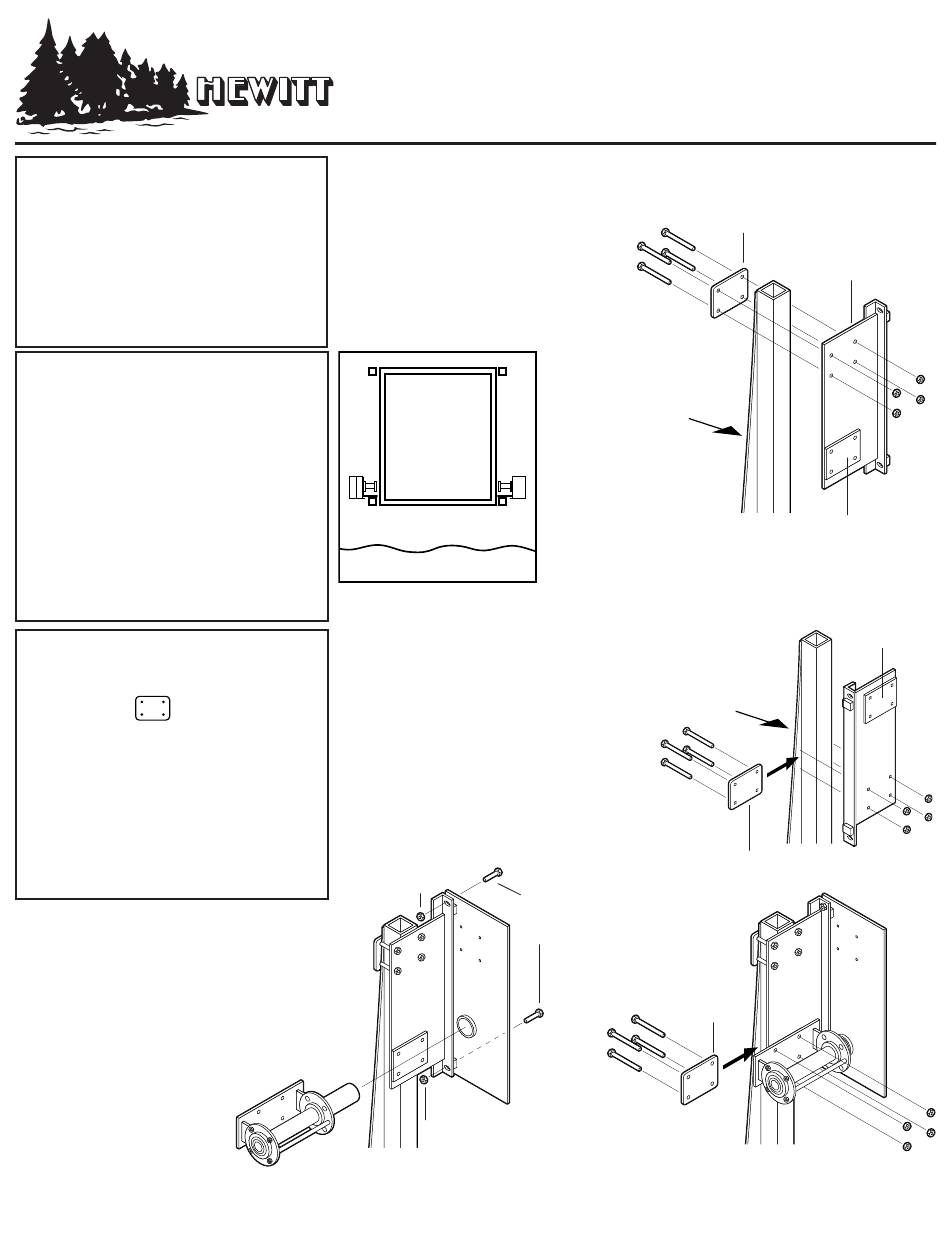

NOTE: Assembly diagrams show mounting for the left side of the lift.
STEP 1
(LEFT SIDE MOUNTING)
Place the Mounting Plate on the lift's
winch arm as illustrated, using the
small backing plate and four 1/2" x
3-1/2" bolts, 1/2" washers and nuts.
TOP VIEW
OF LIFT
LEFT
S H OR E
(RIGHT SIDE MOUNTING)
Installing the hoist on the right side of the lift is
basically the same, except the entire assembly is
turned 180°. Begin by positioning the mounting
plate as shown at right, with the reinforced sec-
tion at the top. Attach with small Backing plate,
four 1/2" x 3-1/2" bolts, 1/2" washers and nuts.
The small plate is at the top of the winch
arm, on top of the reinforcing bar.
For remaining steps, keep in mind that parts will
be turned 180° from what is shown in diagrams.
3/8" Nut
Gear
Unit
3/8" Nut
"Quality Since 1971"
Cable Drum
Box 111
www.hewitt-roll-a-dock.com
PAGE 1
NAASSYWHP2 | 1-14 | HOIST_2000 NAASSYWHP2.INDD
2000# Electric Hoist
Left Side
Winch Arm
(Shore side)
RIGHT SIDE
RIGHT
MOUNTING
ONLY ON HI-LIFT
VERTICAL LIFTS.
3/8" X 1-1/2" Carriage Bolt
3/8" X 1-1/2" Carriage Bolt
Nicollet, MN 56074
Small Backing Plate
Mounting Plate
Front
Reinforced
Section
Reinforced
Right Side
Winch Arm
Front
(Shore side)
Small Backing Plate
Small
Backing
Plate
(507) 225-3421
LWHP2
Section
