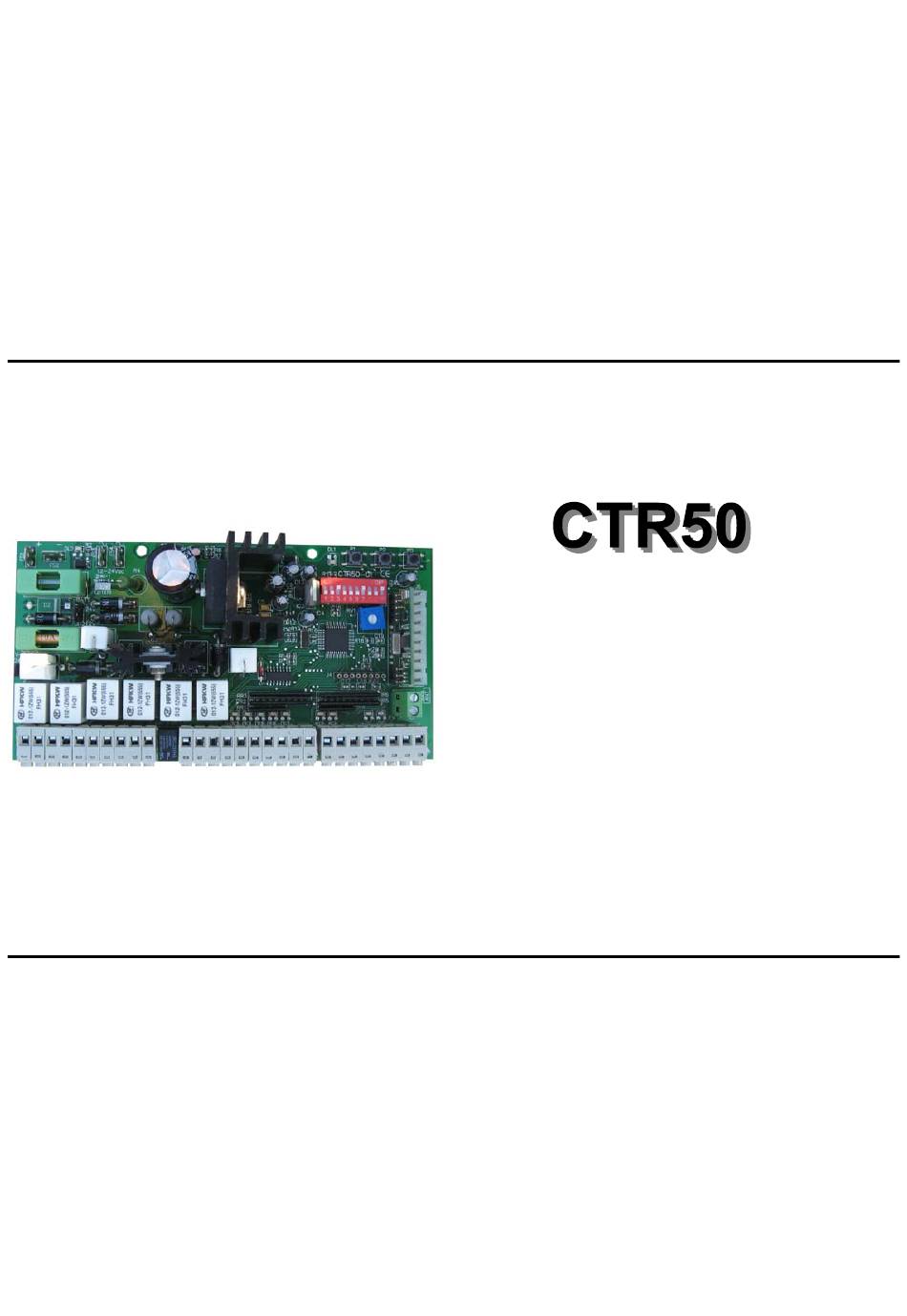

- Page 1 MANUALE D’ISTRUZIONI INSTRUCTIONS MANUAL MANUEL D’EMPLOI ANWEISUNGSHANDBUCH...
-
Page 2: Table Of Contents
ENGLISH TABLE OF CONTENTS Scope of the device Maintenance ……………………………. ……………………………………….. Limits to use ………………………………………. Conformity declaration ……………………….. Installation ………………………………………….. Board programming …………………………… Operation ……………………………………………. General diagram …………………………………. Controls…………………………………………………. Safety devices………………………………………….. Outputs………………………………………………….. Power supply…………………………………………… Accessory inputs/outputs……………………………… Optical signals………………………………………….. Trimmers………………………………………………... Dip switches…………………………………………….. Programming keys……………………………………... -
Page 3: A Scope Of The Device
ENGLISH A) – Scope of the device The electronic board controls one or two low voltage motors that operate at 12Vdc or 24Vdc for the electric gate automation. B) – Limits to use Caution : Before operating the electronic unit make sure the following operations have been carried out. Note 1 –... -
Page 4: Installation
ENGLISH C) – Installation Unscrew the screws of the cover and lift the cover. Check that the electronic unit is in good order. In case of doubt do not install the unit and ask for the intervention of qualified personnel. The container’s accessories (screws, round seal, cable glands) must not be left within the reach of children since they are a potential danger. -
Page 5: Outputs
ENGLISH 3) Definitions of Outputs Blinker Lamp’s on/off control. The lamp functions as a warning and optical signaller of potential danger for the gate’s motion. Motor 1 Outputs for the opening/closure control of the motor which drives the first gate wing during the closing phase. Motor 2 Outputs for the opening/closure control of the motor which drives the gate wing delayed during the closing phase. -
Page 6: Trimmers
ENGLISH DL6 – Photo-cell led (yellow) It signals the optical barrier’s state. The led goes off when the photo-cell is covered by persons or vehicles DL7 – Photostop led (yellow) It signals the optical barrier’s state. The led goes off when the photo-cell is covered by persons or vehicles. DL8 - Opening limit switch led (yellow) It signals the opening limit switch state for Motor 1. -
Page 7: Programming Keys
ENGLISH Dip switch 7 (Attention: Dip switch must be positioned obligatorily in ON if the photocells are not used) It excludes the photocells operation test before the gate departure. ON= Test OFF OFF= Test ON Dip switch 8 It chooses the sensibility of the Motor 1 Amperometric stop. ON= Low OFF= High Dip switch 9... -
Page 8: Technical Features
ENGLISH F1 – Services fuse (1A - Slow) It protects the electronic unit in case of short circuits or overcurrents on photo-cells or any other accessory devices connected to the card. 11) Technical features Power supply The electric power is supplied to the electronic card and the motors by means of an electric transformer fitted with a protection fuse. The appliance may be connected to an optional backup battery (12Vdc or 24Vdc / 7 Ah) for the automation system to work in case of absence of Mains power supply. -
Page 9: Operation Modes
ENGLISH Blinker The electronic card supplies an on/off control (flashing light) to the lamp. The logic of the blinking allows displaying the gate’s operating. Quick flashing light : it signals the opening phase Slow flashing light : it signals the closing phase Fixed light : it signals that the gate is blocked in wait that the obstacle that covers the photocell or photostop to be removed. - Page 10 ENGLISH “Automatic” mode After the power is supplied to the electronic card the first start command determines an opening cycle. During the slow-down phase, at the end of the two work times or after the Limit switches have operated for both motors, the gate stops. The pause period starts (blinker off). At the end of the pause period the gate closes automatically.
-
Page 11: Electrical And Mechanical Specifications
ENGLISH Pedestrian start: The pedestrian start command operates in the same way as the other start command, but in this case only the (M2) wing fitted with the electric lock will be opened or closed. The pedestrian start command has no effect during a start cycle and up to the end of the closing phase (closed gate). - Page 12 ENGLISH Terminal board J2 Terminal1 - Common terminal for all electric contacts of commands Terminal2 - Pedestrian start push-button’s normally open electric contact Terminal3 - Start push-button’s normally open electric contact Terminal4 - Common terminal for all electric contacts of stop push-button and photo-cell Terminal5 - Emergency push-button’s normally closed electric contact (stop) Terminal6 - Photo-cell’s normally closed electric contact Terminal7 - Common terminal for the electric contact of photostop...
- Page 13 ENGLISH Terminal board J3 Terminal1 - Motor 1 opening Limit switch normally closed electric contact Terminal2 - Motor 1 closing Limit switch normally closed electric contact Terminal3 - Motor 1 Encoder signal input Terminal4 - Common terminal for Motor 1 Limit switches and Encoder Terminal5 - Motor 2 opening Limit switch normally closed electric contact Terminal6 - Motor 2 closing Limit switch normally closed electric contact Terminal7 - Motor 2 Encoder signal input...
- Page 14 ENGLISH CTR50 - Connection of the devices Motor 1 – Terminals 5 and 6 on J1 Motor 2 – Terminals 7 and 8 on J1 Blinker – Terminals 3 and 4 on J1 Electric lock – Terminals 9 e 10 on J1 Photo-cells power supply –...
-
Page 15: Maintenance
Company name and registered office : Description of the appliance : Electronic board for the control of 1 or 2 low voltage motors for gate automation. Model : CTR50 Reference rules applied : EN 50081-1, EN 50082-1, EN 55014 Basic rules applied :... -
Page 16: Programming The Board
ENGLISH G) Programming the board Step-by-step logic 2nd wing delay reset (zero delay) 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 Set the dip switches 1 and 2 to OFF Set the dip switch 5 to ON The state of the other dip switches has no effect The dip switch 3 must be positioned in OFF... - Page 17 ENGLISH Automatic Setting of the work times Make sure the gate is completely opened. If not, position it manually. Position the trimmer RV1 to half race and then press once the key P2. After a few seconds the gate will perform a series of operations which will allow the equipment to automatically learn the work times. Attention : during the operations of the work times auto-learning all the safety devices are ignored.
-
Page 18: General Diagram
ENGLISH AERIAL CABLE Radio-Receiver M2 ENCODER SIGNAL 1 2 3 4 5 6 7 8 9 10 M2 CLOSING LIMIT SWITCH M2 OPENING LIMIT SWITCH M1 ENCODER SIGNAL M2 CLOSING L.S. M1 CLOSING LIMIT SWITCH M2 OPENING L.S. M1 OPENING LIMIT SWITCH M1 CLOSING L.S. - Page 19 FRANCAIS TABLE GENERALE Emploi de le tableau électronique Entretien ………. ………………………………………………. Les limitations d’emploi ……………………... Déclaration de conformité ……………………. Installation ………………………………………….. Programmation de la carte électronique Fonctionnement …………………………………. Schéma général …………………………………… Commandes……………………………………………. Dispositifs de sécurité…………………………………. Sorties…………………………………………………... Alimentations…………………………………………… Entrées/sorties accessoires…………………………… Signaux optiques………………………………………. Trimmer………………………………………………….
- Page 21 Wait times will vary dependent on local workloads. The cost is a service fee which includes the first half hour and the hourly rate thereafter. If any Automatic Solutions provided parts are found to be defective and within warranty these will be provided free of charge.
