ASG TX2 Manual

Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

English
Manual
Dansk
Brugsanvisning
TX2 Treadmill
2 - 21
22 - 42

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX2 and is the answer not in the manual?

Questions and answers

Pernille Bendtson
April 28, 2025

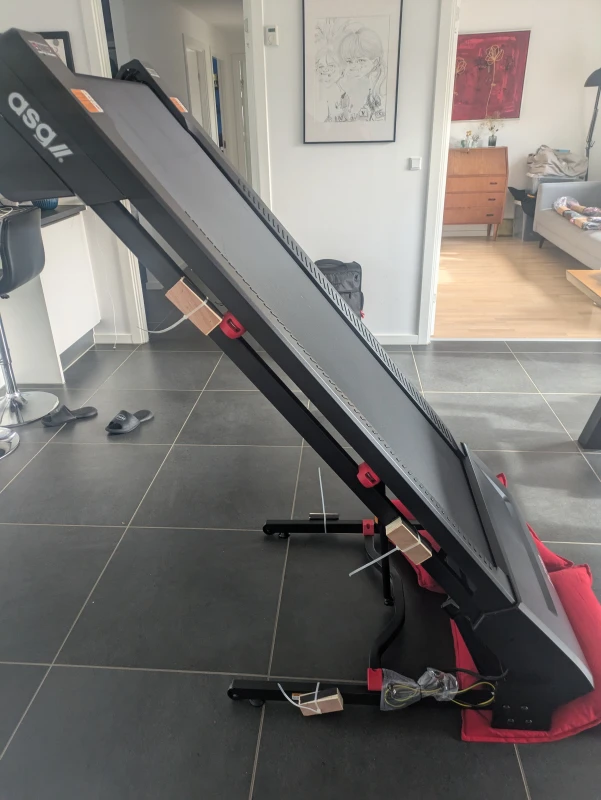

While lifting the new treadmill out of the packaging the incline jumped up - how to get it down?

User image 680f9782c020a
0
1 comments:
Mr. Anderson
May 15, 2025

To lower the incline on the ASG TX2 treadmill, press the incline minus button. If holding the button, the incline will decrease continuously.

This answer is automatically generated

0

Related Manuals for ASG TX2

Summary of Contents for ASG TX2

  • Page 1 TX2 Treadmill English Manual 2 - 21 Dansk Brugsanvisning 22 - 42...

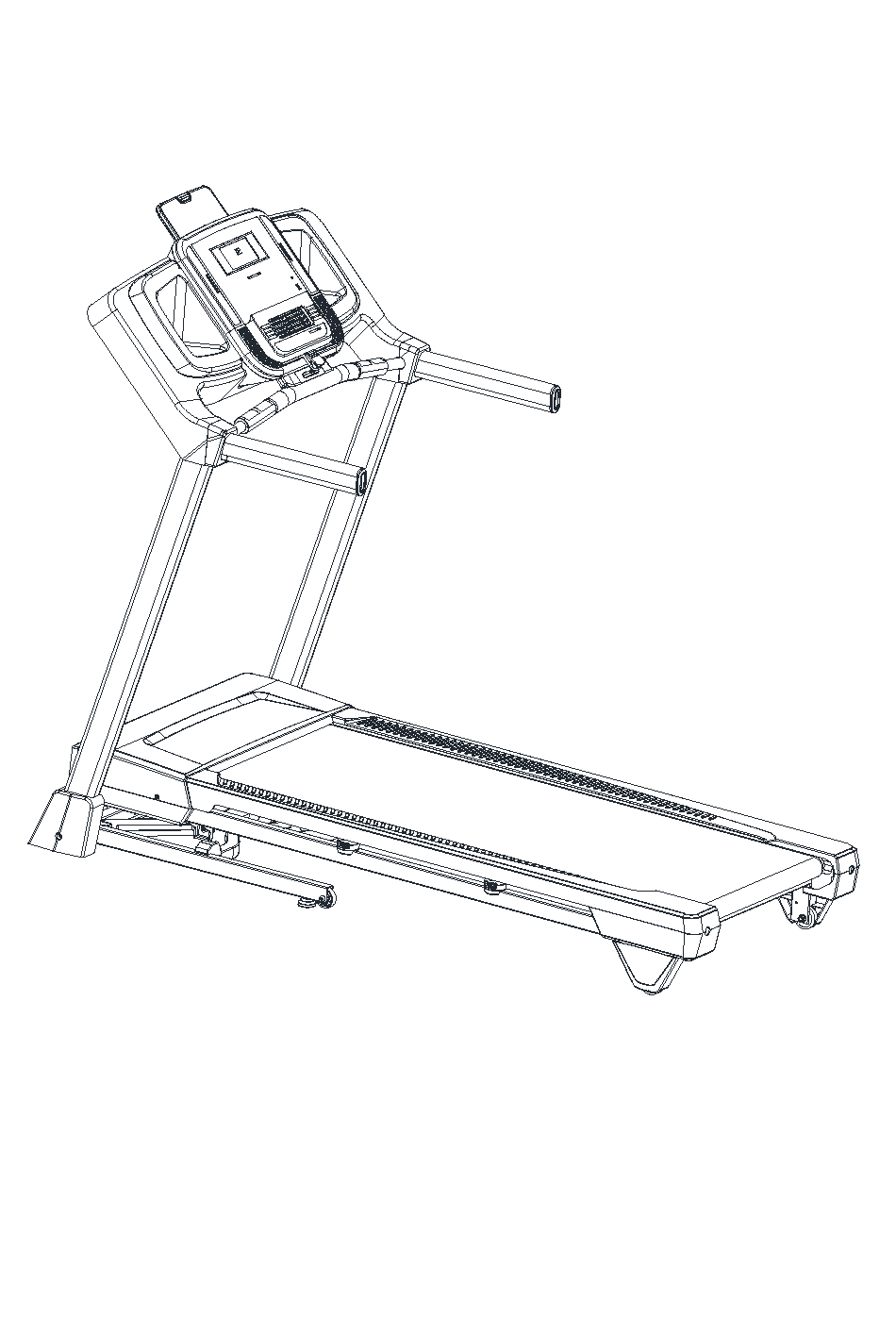

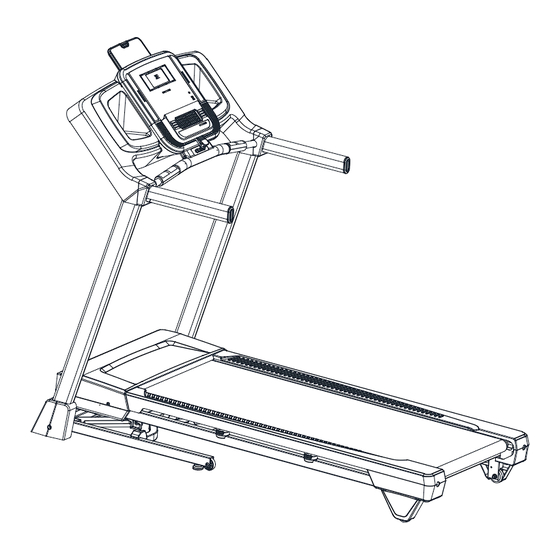

  • Page 2: Exploded Drawing

    Exploded drawing...

  • Page 3: Spare Parts List

    Spare parts list Description Specification Material Base Frame Upright L Upright R Incline frame Main frame Console frame Screw M8*25L, S45C Screw M8*35L*S17L S45C Screw M8*30L S45C Screw M8*40L*S18L S45C Screw M8*50L*S20L S45C Screw M8*70L*S20L S45C Screw M4*12L S45C Screw ST2.5*8L S45C Screw...
  • Page 4 Screw ST2.9*20L S45C Screw ST3.9*14L S45C Screw ST3.9*45L S45C Screw ST3.9*13L S45C Screw φ12*M10*30L*S10L Screw φ12*M10*28L Screw M4*10L,with spring washer S45C Screw M8*12L S45C Screw M8*16L S45C Screw M8*55L S45C Screw M8*65L S45C Screw M10*50L S45C Screw M10*60L*S15L S45C Screw ST3.2*10 S45C Nylon nut...
  • Page 5 Flat washer Ф10*Ф20*2T S20C Spring washer Ф8.5*Ф13.5*2.5T S20C Hex wrench 5.9mm*80mml*130mml ∮95*∮50*∮44*∮17*570(612) Front roller ∮46*∮40*∮17*556(614),电泳黑 Rear roller 色 Deck lift shock QDY22*10-562*340-40KG Belt hook 180*25.4*T2.5 烤漆 Q235 ∮34*25*∮2 Spring 65MN Motor cover upper 714*88*353 1020g Motor cover lower 714*80*353 905g Upright cover L 55*156*184 120g Upright cover R...
  • Page 6 Handrail cover Upper 380*144*107 256g Handrail cover lower 352*83*27 81g Handlebar cover L 71*99*45 38g Handlebar cover R 71*99*45 38g 147*60*20 35g Fan cover 172*68*64 55g IPAD clip 45*18*21 5g Tablet cover upper 213*156*16 95g Tablet cover lower 213*156*15 107g Teflon washer φ22*φ12.2*1.1T Teflon...
  • Page 7 4*200 BK 0TP1508 160mm*3.5 GTP-130ST(TYPE2) 5*150 Cushion 25*20*24.5*T2.0 BK Sensor holder Handgrip Switch holder 49*13*16 Phosphor Copper plate 33*7*0.3T Bronze ∮10*7 Magnet Safety key cable 3P/350MM Screw ST2*5L S20C Safety key 47*18*14 Safety lock 47*18*14 Safety pin 43*6*2T Q235 Safety key spring Safety key clip Safety key pin Safety key clamp upper...
  • Page 8 Switch socket DB-14-5F(2.0) Switch M1L15-A11B1 15A/125V Magnet ring Φ31*Φ19*13,黑色 2P/1200MM: One end with Sensor cable XHB-2Y, the other end with a 25mm cylindrical reed switch. Communication cables 5P/2000mm White wire UL 1015 T250 +T187 100mm+ T250 14AWG 200mm UL 1015 14AWG Dual T250 White wire 200mm UL 1015 14AWG 105℃...
  • Page 9 Running deck 1300*684*18T Console Overlay Speed overlay Incline overlay Button overlay...

  • Page 10: Assembly Instruction

    ASSEMBLY INSTRUCTION Step 1...
  • Page 11 Step 2 34# FLAT WASHER ? 8*? 16*2T(8PCS) 12# SCREW M10*70L(8PCS) 37# HEX WRENCH (1PCS)
  • Page 12 Step 3 25# SCREW M8*16L(4PCS) 34# FLAT WASHER ? 8*? 16*2T(4PCS) 37# HEX WRENCH (1PCS)
  • Page 13 Step 4 13# SCREW M4*12L(2PCS) 37# HEX WRENCH (1PCS)
  • Page 14 Step 5...
  • Page 15 Step 6...

  • Page 16: Display Window

    1. Display window 1.1 SPEED 1.2 INC 1.3 TIME 1.4 DIST 1.5 CAL. 1.6 PULSE 2. Button function 2.1 Start Press this button in standby mode or countdown mode to start the treadmill, with a default speed of 1.0 KPH. Press this button in a fixed program and the treadmill will start running according to the program.

  • Page 17: Weight Loss

    The setting value can be adjusted in the setting mode. Adjust the incline by pressing the button and long pressing with continuously increase /decrease. Speed adjustment The setting value can be adjusted in the setting mode. Adjust the speed by pressing the button and long pressing with continuously increase /decrease.
  • Page 18 3.2 Countdown mode（H1-H3） ： In standby mode, press the GOALS button to select H1 time countdown, H2 distance countdown, H3 calorie countdown. Use the speed plus and minus buttons to set the relevant values. After setting, press the "Start" button to start. The treadmill starts counting down according to the set value.
  • Page 19 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 3.4 INTERVAL Mode（P7~P12） ： Press the "INTERVAL" button to select the INTERVAL mode (P7~P12), use the speed plus and minus buttons to set the time, press the START button to execute the program, and the treadmill will move according to the preset program, and the speed will change every interval (Time/10)*60 seconds.

  • Page 20: Custom Mode

    SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 3.5 HEART RATE Mode： Press the "HEART" button to enter the HEART RATE mode, and then press the "UP/DOWN" button to set the target time. Press the "OK" button to enter the age setting.
  • Page 21 3.8 Safety mode： In case of emergency, pull down the safety key and the treadmill will stop moving. The speed window will display E0. Turn off the safety key system and restart the machine. Training values display and setting range Display Default value Default value...
  • Page 22 Eksploderet tegning...
  • Page 23 Reservedelsliste Beskrivelse Specifikation Materiale Antal Baseramme Opretstående stolpe venstre Opretstående stolpe højre Hældningsramme Hovedramme Konsolramme Skrue M8*25L, S45C Skrue M8*35L*S17L S45C Skrue M8*30L S45C Skrue M8*40L*S18L S45C Skrue M8*50L*S20L S45C Skrue M8*70L*S20L S45C Skrue M4*12L S45C Skrue ST2.5*8L S45C Skrue ST2.9*8L S45C Skrue...
  • Page 24 Skrue ST3.9*14L S45C Skrue ST3.9*45L S45C Skrue ST3.9*13L S45C Skrue φ12*M10*30L*S10L Skrue φ12*M10*28L Skrue M4*10L, med fjeder skive S45C Skrue M8*12L S45C Skrue M8*16L S45C Skrue M8*55L S45C Skrue M8*65L S45C Skrue M10*50L S45C Skrue M10*60L*S15L S45C Skrue ST3.2*10 S45C Låsemøtrik M8*7T S20C...
  • Page 25 Spændeskive Ф10*Ф20*2T S20C Fjeder skive Ф8.5*Ф13.5*2.5T S20C Unbrakonøgle 5.9mm*80mml*130mml ∮95*∮50*∮44*∮17*570(612) Forrulle ∮46*∮40*∮17*556(614),电泳黑 Bageste rulle 色 Dækløftestød QDY22*10-562*340-40KG Bæltekrog 180*25.4*T2.5 烤漆 Q235 ∮34*25*∮2 Fjeder 65MN Øvre motor cover 714*88*353 1020g Nedre motor cover 714*80*353 905g Venstre stolpe cover 55*156*184 120g Højre stolpe cover 55*156*184 120g Venstre rulle cover 40*105*183 70g...
  • Page 26 Øvre håndtagscover 380*144*107 256g Nedre håndtagscover 352*83*27 81g Venstre håndtagscover 71*99*45 38g Højre håndtagscover 71*99*45 38g Blæser 147*60*20 35g Blæser cover 172*68*64 55g IPAD klip 45*18*21 5g Tablet cover øvre 213*156*16 95g Tablet cover nedre 213*156*15 107g Teflonskive φ22*φ12.2*1.1T Teflon Teflonskive φ21*φ10.2*1.1T Teflon...
  • Page 27 Bånd 0TP1508 160mm*3.5 Bånd GTP-130ST(TYPE2) Bånd 5*150 Støddæmpning 25*20*24.5*T2.0 BK Sensor holder Håndtag Afbryderholder 49*13*16 Phosphor Kobberplade 33*7*0.3T Bronze ∮10*7 Magnet Sikkerhedsnøgle kabel 3P/350MM Skrue ST2*5L S20C Sikkerhedsnøgle 47*18*14 Sikkerhedslås 47*18*14 Sikkerhedsstift 43*6*2T Q235 Sikkerhedsnøgle fjeder Sikkerhedsnøgle klip Sikkerhedsnøgle stift Øvre sikkerhedsnøgleklemme Nedre...
  • Page 28 Afbryder M1L15-A11B1 15A/125V Magnetring Φ31*Φ19*13,黑色 2P/1200MM 一端 XHB-2Y,一端 Sensorkabel 圆形干簧管长 25mm Kommunikationskabler 5P/2000mm Hvid ledningUL 1015 T250 +T187 100mm+ T250 14AWG 200mm UL 1015 14AWG Dual T250 Hvid ledning 200mm UL 1015 14AWG 105℃ 600V Sort ledning TS,T250 +T187 100L UL 1015 14AWG 105℃...
  • Page 29 Konsoloverlæg Hastighedsoverlæg Hældningsoverlæg Knapoverlæg...
  • Page 30 Samlevejledning Trin 1...
  • Page 31 Trin 2 34# FLAT WASHER ? 8*? 16*2T(8PCS) 12# SCREW M10*70L(8PCS) 37# HEX WRENCH (1PCS)
  • Page 32 Trin 3 25# SCREW M8*16L(4PCS) 34# FLAT WASHER ? 8*? 16*2T(4PCS) 37# HEX WRENCH (1PCS)
  • Page 33 Trin 4 13# SCREW M4*12L(2PCS) 37# HEX WRENCH (1PCS)
  • Page 34 Trin 5...
  • Page 35 Trin 6...

  • Page 36: Knappernes Funktioner

    1. Displayvindue 1.1 SPEED 1.2 INC 1.3 TIME 1.4 DIST 1.5 CAL. 1.6 PULSE 2. Knappernes funktioner 2.1 Start Tryk på denne knap i standby- eller nedtællingstilstand for at starte løbebåndet med en standardhastighed på 1,0 km/t. Tryk på denne knap i et fast program, og løbebåndet vil begynde at køre i henhold til programmet.
  • Page 37 Hældningsjustering: Indstillingsværdien justeres indstillingsmode. Juster hældningen ved at trykke på knappen og holde den nede for at øge/formindske kontinuerligt. Hastighedsjustering: Indstillingsværdien justeres indstillingsmode. Juster hastigheden ved at trykke på knappen og holde den nede for at øge/formindske kontinuerligt. 2.5 MANUAL: I andre valgte tilstande, tryk på denne knap for at vende tilbage til standbygrænsefladen.
  • Page 38 3. Tilstandsbeskrivelse 3.1 Træningstilstand(MANUAL)： I standbytilstand, tryk på START-knappen for hurtigt at starte, SPEED-vinduet viser "3 2 1 0", løbebåndets tid tælles op (0:00~99:59, overflow starter fra 0:00 og genstarter), standardhastigheden er 1,0 km/t, hastigheden kan justeres ved hjælp af hastighedsplus- eller minusknapper og genvejsknapper. Tryk på stopknappen for at stoppe.
  • Page 39 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 3.4 INTERVAL-tilstand (P7~P12): Tryk på "INTERVAL"-knappen for at vælge INTERVAL-tilstand (P7~P12), brug hastighedsplus- og minusknapperne til at indstille tiden, tryk på START-knappen for at udføre programmet, og løbebåndet vil køre i henhold til det forudindstillede program, hvor hastigheden ændres hvert interval ((Tid/10)*60 sekunder).
  • Page 40 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 3.5 Hjertefrekvens-tilstand： Tryk på "HEART"-knappen for at gå ind i hjertefrekvens-tilstanden, og tryk derefter på "UP/DOWN"-knappen for at indstille den ønskede tid. Tryk på "OK"-knappen for at indstille alder.
  • Page 41 3.6 Brugerdefineret tilstand： Tryk på "CUSTOM"-knappen for at gå ind i brugerdefineret tilstand. Du kan trykke på "USER"-knappen for at skifte mellem USER1 og USER2. Tryk på "UP/DOWN"-knappen for at indstille den ønskede tid. Tryk på "OK"-knappen for at gå ind i brugerdefineret tilstand.
  • Page 42 Fejlmeddelelser Sikkerhedsnøglen faldet af Hastighedsfejl Overstrøm Motorforbindelsesfejl Kommunikationsfejl Strømforsyningsrøret eller relæet er ikke tændt Hældningskalibreringsfejl...
