GBS 3000 Manual

Edging floor grinder
Hide thumbs

Advertisement

Quick Links

Download this manual

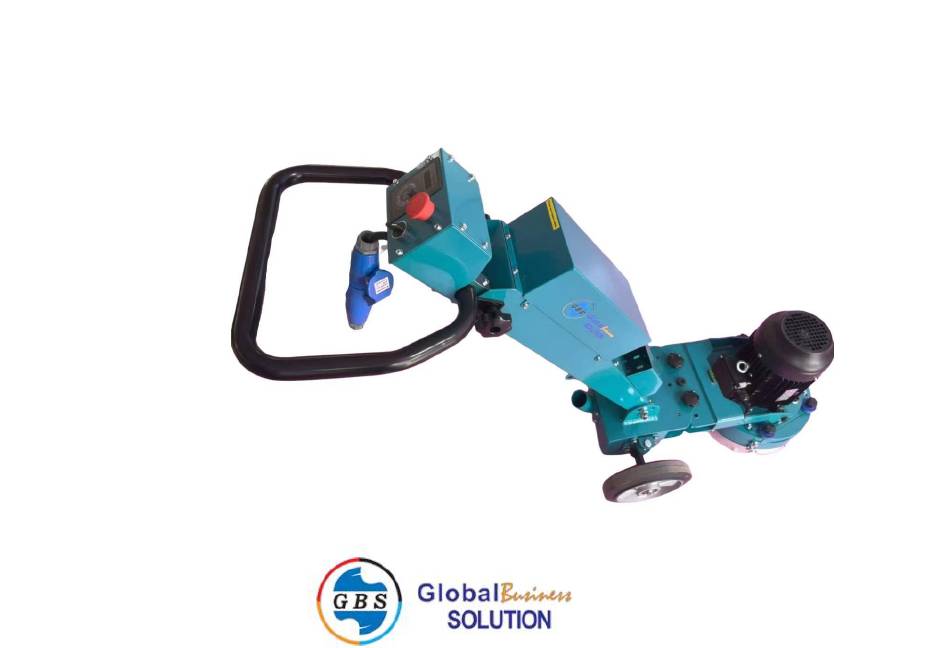

EDGING FLOOR GRINDER
GBS 3000 MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for GBS 3000

  • Page 1 EDGING FLOOR GRINDER GBS 3000 MANUAL...
  • Page 2 Before use, the user must be trained in handling the machine 1) Place the grinder in the work area. 2) Check whether the dust cover is tight. 3) Check electrical specifications - 220V single phase, 50Hz. The power cord must be the national standard four square meters，Three cores, check the insulation condition.
  • Page 4 • Take the following safety measures when mounting grinding disks. • Remove any weight. • Disconnect the power supply and the power cable. • The machine up, and remove the old grinding disks using the special tool. The tools can be also be bolted to the machine if required. •...
  • Page 7 1. This edging machine has a grinding and polishing system for metal and resin pads for the most accurate edge grinding and polishing results. 2. Not only does it deal with edges and angles;Suitable for small area construction, single-head floor grinding machine,Just like a garage. Edge grinding: the grinding and cutting of the wall leaves 0 mm.
  • Page 8 Trouble No. Problem Description Solution 1. Wrong/improper power cable connection 1.Verify power cable is properly installed 2. Wrong /improper voltage output 2.verify machine voltage matches power supply 3. Broken direction switch 3. Repair/Replace broken direction switch Start/stop malfunction 4. Broken speed -control switch 4.Repair/Replace broken speed -control switch 5.

  • Page 9: Operation

    OPERATION The following section describes how to operate and use the grinding machine. The section does not deal with the technical aspects of grinding such as choice of grinding tool etc. NOTE : Only personnel with the requisite training may operate the machine. It is assumed that the relevant personnel have read the safety regulations. And that the machine is positioned on the surface intended for grinding, that the surface is not inclined and that the grinding disks are mounted.
  • Page 10 If you start on concrete surface may be damaged for the motor due to the load. MEASURES PERIOD TO START : 1. Inspect the floor carefully and remove any protruding items such as reinforcement bars and bolts, as well as any loose material that could get caught in the machine.
