HOLOPHANE Petrolux II Installation And Maintenance Manual

Advertisement

__________________________
AFTER INSTALLATION DELIVER
THIS MANUAL TO OWNER
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
– READ THESE INSTRUCTIONS
CAREFULLY BEFORE ATTEMPTING TO
INSTALL OR MAINTAIN THIS FIXTURE. WORK
MUST BE DONE BY QUALIFIED PERSONNEL.
WARNING
– BE CERTAIN THAT ALL
ELECTRICAL POWER IS DISCONNECTED
FROM THE FIXTURE BEFORE INSTALLING
OR MAINTAINING THE FIXTURE.
WARNING
– FOLLOW LAMP
MANUFACTURER'S OPERATING AND
MAINTENANCE INSTRUCTIONS.
FAILURE TO FOLLOW THESE WARNINGS
MAY RESULT IN DEATH, INJURY OR
SIGNIFICANT PROPERTY DAMAGE.
1. INTRODUCTION
1.1 Product Description.
to applicable U.L. Standards and requirements by
Underwriters Laboratories, Inc. These units also
comply with applicable paragraphs of Articles 410,
501, 502, and 503 of the National Electrical Code.
® ® ® ®
Petrolux
II
For Hazardous
Locations
- The fixture identification label provides information
regarding suitable environmental applications.
- Major components of the Petrolux II are identified in
Figures 1, 4, and 5.
- The lamp can be accessed by unscrewing the optical
assembly.
- The electrical components can be accessed by
unscrewing the closure screw and allowing the housing
to swing down on its hinge.
- The optics are designed for easy installation and
removal by simply rotating the optical assembly until the
threads disengage.
- Different types of optical assemblies will provide
different lighting distributions.
2. INSTALLATION

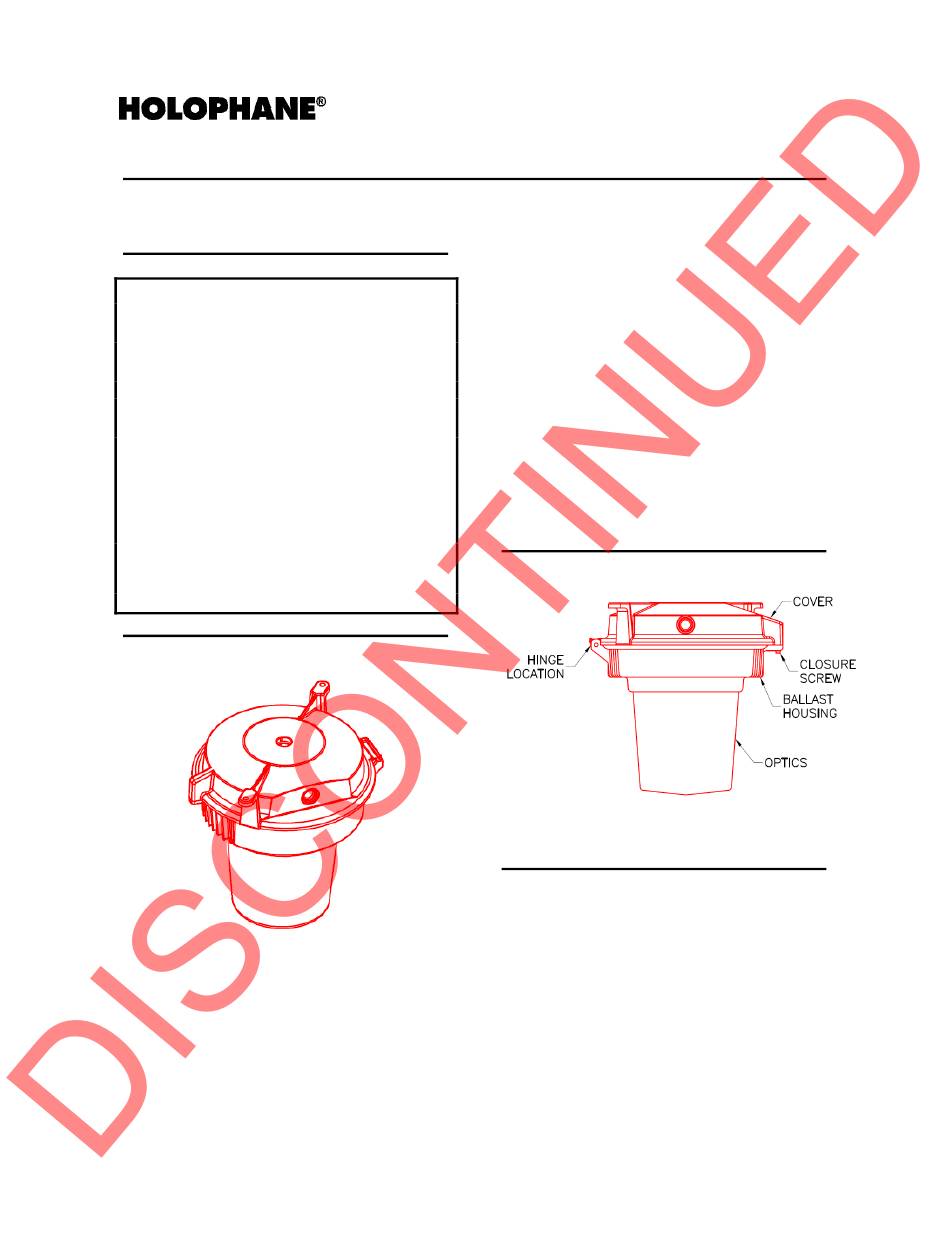

Figure 1
Petrolux II is Listed
Installation and
Maintenance
Manual
GR579A
IM-34-D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Petrolux II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HOLOPHANE Petrolux II

  • Page 1 - The fixture identification label provides information AFTER INSTALLATION DELIVER regarding suitable environmental applications. THIS MANUAL TO OWNER - Major components of the Petrolux II are identified in Figures 1, 4, and 5. - The lamp can be accessed by unscrewing the optical assembly.
  • Page 2: Pendant Mount

    ON SITE, RUN THREAD DIE COMPLETELY TO END OF CONDUIT. IMPROPER INSTALLATION MAY RESULT IN DEATH, INJURY OR SIGNIFICANT PROPERTY DAMAGE. 2.2.8 Petrolux II Max. Unit Wt. (lbs.) Position of the pendant cover is critical: Hinge must be positioned so that housing and optical Large 15.7”...
  • Page 3: Ceiling Mount

    2.5 Ceiling Mount. Figure 3 2.5.1 Disconnect power to the fixture location. 2.5.2 Mount ceiling box with four (4) 3/8" dia. screws (not provided) so that the conduit entries are aligned with the conduit system. 2.5.3 Attach conduit to box, (1" NPT). 2.5.4 Feed supply leads through gasket and conduit opening in cover.
  • Page 4: Maintenance

    MAY PREVENT THE PROPER SEALING OF 3.1.6 Wipe off optical assembly. Do not use an THE FIXTURE, CONTACT HOLOPHANE FIELD abrasive cleaner on glass. Loss of optical performance SERVICE DEPARTMENT. CHECK FOR could result.
  • Page 5: Limited Warranty And Limitation Of Liability

    4. LIMITED WARRANTY AND BEAM LIMITATION OF LIABILITY PETL526 GR583A The Holophane limited warranty and limitation of liability is published in the "Terms and Conditions" section of the current Holophane buyer's guide, and is available from your local Holophane sales representative. ®...

Table of Contents
