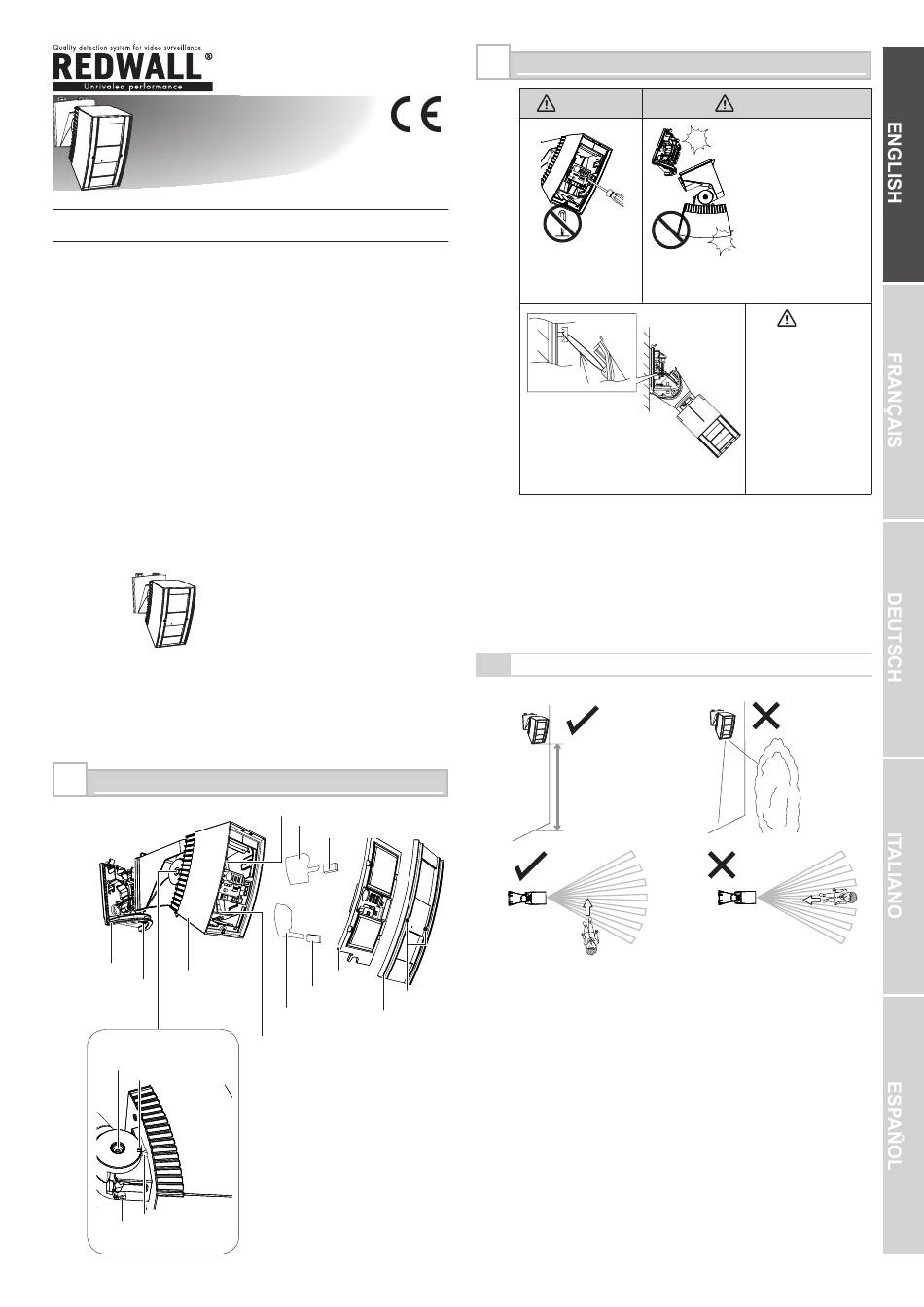

INSTALLATION INSTRUCTIONS
Synthesized Intelligent PIR
Synthesized Intelligent PIR
REDWALL-V series
REDWALL-V series
FEATURES
* L ow power consumption (3-9VDC, 40μA (standby) 5mA max.)
* Low battery signal
* Intelligent PIR Detection System
- Three dual pyro-elements with patented Double Conductive
Shielding
- Detection of ambient temperature and illuminance for
automatic sensitivity management
- Advanced detection algorithm
* Anti-vandalism functions
- Max.4 m (13 ft.) installation height
- Anti-rotation function with accelerometer
- Anti-masking function with photo-beam
* Independent sensitivity selector for near/far areas
* Detection logic selector
* Detection range selector
* Independent N.C. and N.O. ALARM output
* Adjustable alarm interval time
* Reinforced polycarbonate housing
REDWALL-V
: Low current Synthesized Intelligent PIR
SIP-3020WF
SIP-4010WF
SIP-404WF

PARTS IDENTIFICATION
Base
Main unit
Fixing screw
for the base
Adjustment screws
(two facing each other)
Angle adjustment guide
Arrow marking
Fixing screw
NO.59-576- 0905-30
Far area mirror
Masking plate for far area
Fixing rubber form
Window
Fixing rubber
Fixing screw
form (*)
for the cover
Masking plate for near
Cover
area (*)
Near area mirror
*: Not used for the SIP-400WF and
SIP-404WF.
2
INSTALLATION AND MAINTENANCE NOTES
Warning
Never repair or
modify product
Nylon wire
loop
When servicing, the sensor
can be hooked onto the
base using the nylon wire
loop.
2-
INSTALLATION HINTS
2.3-4.0 m
(7.6-3 ft.)
Mount the detector so that the majority of traffic flow is across the detection pattern.
-  -
Caution
Hold the main unit
securely when you
install or service it.
If you remove your
hands from the main
unit when cables are
connected to it, the
main unit may fall
and the connector
cables may break
or the circuit board
may be damaged.
Caution
Verify that the
power is off before
connecting the
wiring.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REDWALL-V Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Redwall REDWALL-V Series

  • Page 1 INSTALLATION INSTRUCTIONS Warning Caution Synthesized Intelligent PIR Synthesized Intelligent PIR Hold the main unit securely when you REDWALL-V series REDWALL-V series install or service it. If you remove your hands from the main unit when cables are connected to it, the...
  • Page 2: Installation And Angle Adjustment

    INSTALLATION AND ANGLE ADJUSTMENT Wall Mounting Inside View of the Base Attach the paper template (an accessory) onto the wall, Base Main unit connector Waterproof seal and drill a 6-mm dia. mounting hole and a cabling hole. Wall mounting hole (Do not remove Insert the anchor bolt (an accessory) into the board mount this seal.)
  • Page 3 Adjust the angle of the main unit in a horizontal direction so DETECTION AREA SETTING that you can cover the desired detection area. Rotate the main unit. You can adjust the detection area by 90 degrees in a horizontal direction and by 0 degrees in a vertical direction. Correct the vertical detection angle according to the mounting height of the sensor unit.
  • Page 4 Use at “REDWAVE ALARM Ribs OUTPUT” position to 404 (521205) 404 (521205) confirm entire area alarm output. CELL BATTERY Use at “REDWALL” Power selector position. switch Fine adjust the main unit angle in vertical and horizontal direction by observing the target area through the area REDWAVE REDWAVE viewfinder.
  • Page 5: Function Setting

    Detection Logic Selector Switch Cautions>> Dip switch When you are checking the detection area, take care not to cover the shaded area of the window with the walk SIP-3020WF SIP-4010WF SIP-404WF Applicable models tester or its cable. If infrared beams to the sensor are The near area sensor has two dual-element devices, and partially shielded, the detection sensitivity will drop and it covers two types of plane areas alternately using the two...
  • Page 6: Detection Area

    DETECTION AREA SIP-3020WF SIP-4010WF SIP-404WF SIP-3020WF SIP-4010WF SIP-404WF Applicable models Applicable models TOP VIEW TOP VIEW [ft.] (Installation height 4.0 m (3ft.)) [ft.] (Installation height 4.0 m (3ft.)) [ft.] SIDE VIEW (Installation height 4.0 m (3ft.)) : Near area : Far area 40 [m] 30 [ft.] [ft.]...
  • Page 7 MASKING THE FAR AREA SENSOR The far area mirror mounted in the main unit has 2 far masking SIP-3020WF SIP-4010WF SIP-404WF Applicable models plates; one at the right side of this mirror and the other at the left side of this mirror. You can mask the detection area by changing Remove the masking plate from the storage, and check the detection the position of these masking plates.
  • Page 8 MASKING THE NEAR AREA SENSOR Masking the Detection Areas using Masking the Detection Areas using Masking Plates Masking Seals The near area mirror mounted in the main unit has 2 near Using the tweezers (an accessory), carefully attach the area masking plates;...
  • Page 9: Operation Test

    TERMINATION PROCEDURE OPERATION TEST SIP-3020WF SIP-4010WF SIP-404WF 0- If There is a Public Street Where a People Applicable models After you have adjusted all sensor items, securely tighten all Walk or Cars Drive by the Detection Area adjustment screws that you have loosened. Finally, securely tighten the bottom fixing screws.
  • Page 10: Specifications

    SPECIFICATIONS 12-1 Specifications of the Main Unit 10-2 If Tree Branches or Grass are Detected When They Move Within the Detection Area SIP-3020WF SIP-4010WF SIP-404WF Applicable models Points>> Model SIP-3020WF SIP-4010WF SIP-404WF Adjust the detection area so that it does not cover tree branches or grass that move when the wind blows.
  • Page 11 DIMENSION OPTION • OPM-WT -Audio Walk Tester SIP-3020WF SIP-4010WF SIP-404WF • AVF- -Area View Finder • SIP-MINIHOOD -Sun/Snow shield (4.0) (0.5) These units are designed to detect movement to activate CCTV system. Being only part of a complete surveillance system, we cannot accept responsibility for any damage or other consequences resulting form the activation of the unit.
