- Page 1 0960.NANOP pH Controller Product Manual Important Safety Instructions Read all warnings and instructions in this manual. Save all instructions. ENTER DEMA Eng 10020 Big Bend Blvd. St. Louis, MO 63122 800-325-3362 www.demaeng.com 10/2024 I-1455 Rev-- ECO #49756 10.11.2024...
-
Page 2: Table Of Contents
Electrical Wiring ................4 Mounting Instructions ..............4 Logic and Relay Cards ............... 5 Electrode Installation ..............6 Front Panel Description .............. 7 0960.NANOP Menu Map ............8 System Operation Overview ............. 10 Description of Menus ..............10 VII. Maintenance ................10 VIII. -
Page 3: Introduction
Model Numbering table listed below. Model Numbering 0960.NANOP units have several base system control functions and unit optional features. Your unit may be supplied with one or more of the features described in this manual. To determine what features apply to your unit check the model number label located on the controller enclosure. -
Page 4: Installation Electrical Wiring
3. The 4-20mA output is produced with 12 VDC on the loop. Do not connect output to devices that are trying to power the loop. This feature is used when a 0960.NANOP is paired with the Flex Flow 0960.L pump. -
Page 5: Logic And Relay Cards
Logic and Relay Cards Relay Card for W Option Relay Card Relays can be a dry contact by changing Power In the jumpers and POWER SUPPLY connecting to Ground Ground and either N.O. or N.C. Neutral Powered relay output jumper Ribbon Cable configuration... -
Page 6: Electrode Installation
The standard pH probe and Flow Switch assembly for an irrigation system are typically constructed using PVC piping and fittings. When incorporating DEMA’s Flow Switch, thread the ¾” male threads of the flow switch into a PVC tee. Example of the tee: slip x slip x female ¾”. -
Page 7: Front Panel Description

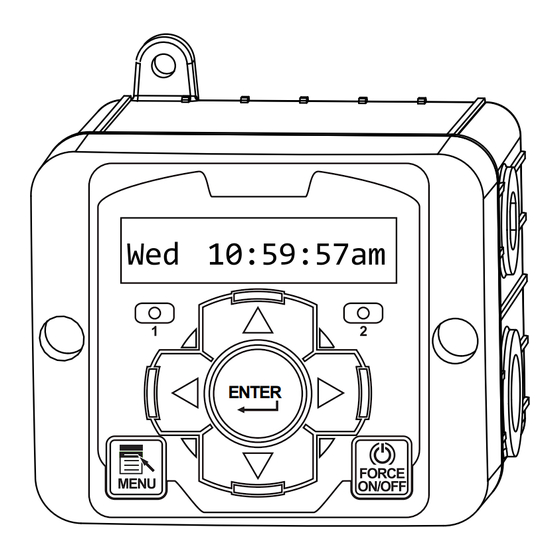

Replacement Probe NANOP ........0960.PE.21 Front Panel Description Press MENU to access menus or go back one layer in menu structure. MENU Wed 10:59:57am Press FORCE to activate relays manually again for Off and a third time back to auto. FORCE ON/OFF Press ENTER to go a layer deeper in menu,... - Page 8 Calibration Alarm List pH Set Relay 2 Set mA Output * Dual pH enable Mode: Timer/Alarm Alarms Yes* ORP/pH Out Scale 20mA ORP/pH = X If Dual pH mode in Nano-P. Relay 1 = falling Relay 2 = rising Only shows in 4mA ORP/pH = X timer mode.
-
Page 9: 0960.Nanop Menu Map
WM:X FS:X DL:X Board Temp XXX°C/F Identify logic state of vaious digital inputs. V. 0960.NANOP Menu Map 0960.NANOP pH units have a main menu circle that includes: Calibration - Calibrating the conductivity reading Alarm List - Shows active alarms pH Set... -
Page 10: System Operation Overview
System Operation Overview Description of Menus 0960.NANOP controllers have three modes of operation, Run, Menu and Force. All menus are circular. Pressing the DOWN key will display the next line of information on the display. Run - This mode is for normal operation. The control relays will only be automatically active in this mode. -
Page 11: Troubleshooting
VIII. Troubleshooting The 0960.NANOP controller is designed for many years of trouble free operation. Should a problem occur, refer to the following chart to help identify the problem. If replacement is required, follow the procedures listed in the Warranty and Factory Service portion of this manual. -
Page 12: Manufacturer's Product Warranty
Rubber and synthetic rubber parts such as “O”-rings, diaphragms, PVC tubing, and gaskets are considered expendable and are not covered under warranty. This warranty is extended only to the original buyer of DEMA products. If products are altered or repaired without prior approval of DEMA, this warranty is void.
