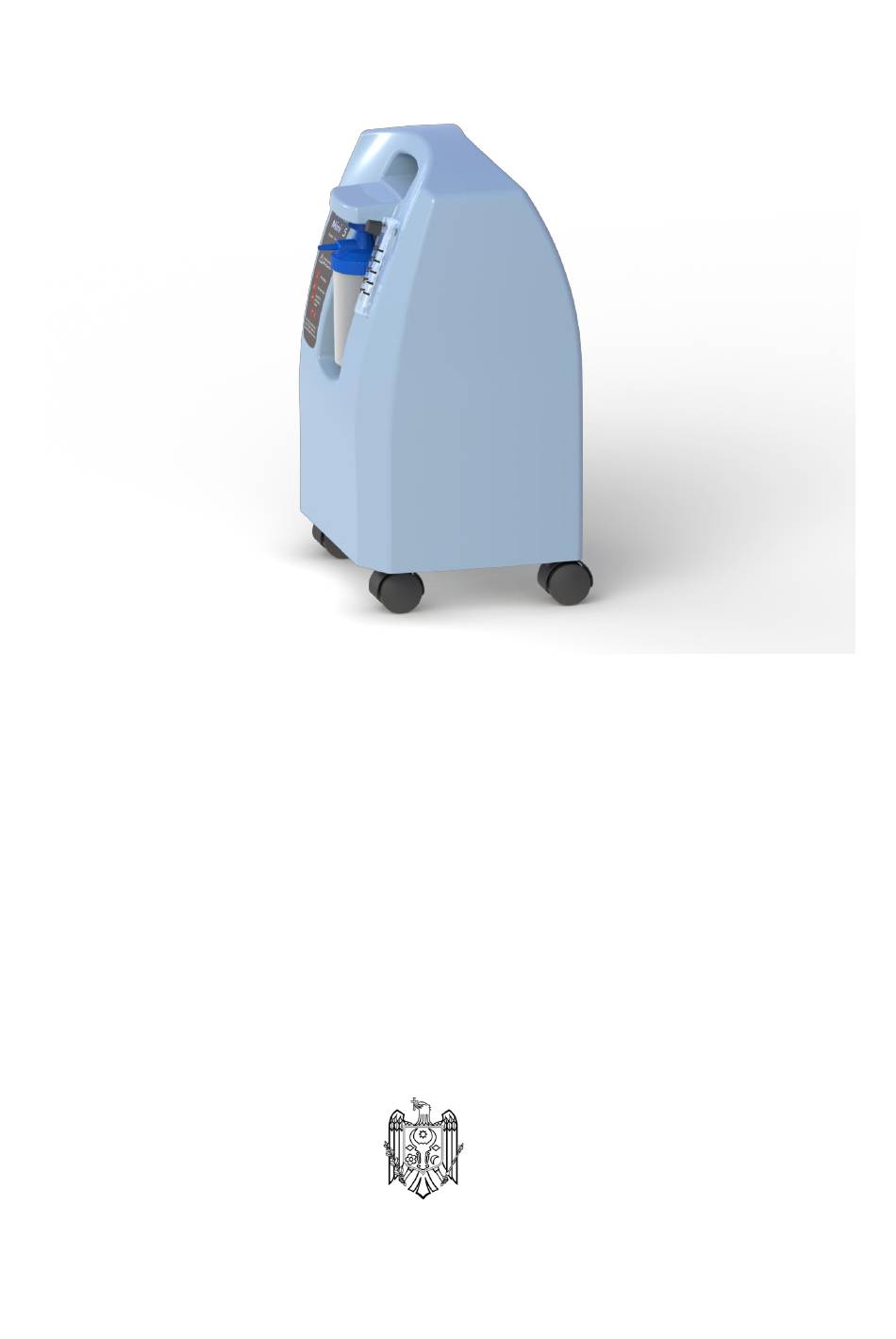

- Page 1 OXYGEN CONCENTRATOR OXYBREATH Mini 5 hikoneb OxyBreath ® OXYBREATH Mini 3 hikoneb OxyBreath ® Instruction Manual Digitally signed by Ciobanu Sergiu Date: 2021.06.24 15:40:45 EEST Reason: MoldSign Signature Location: Moldova Rev: 00 02.04.2012...
-
Page 2: Table Of Contents
INDEX Warning and Cautions Introduction Safety Instruction Information Assembly Instructions Operating of Oxygen Concentrator Installation Instruction VIII Troubleshooting Technical Data Electromagnetic Compability... -
Page 3: I Warning And Cautions
I- WARNINGS AND CAUTIONS Warning and Caution notices used in this manual apply to hazards or unsafe practices that could result in personal injury or property damage. Read Instruction Manual Do Not operate this oxygen concentrator without reading and understanding this manual. If you are unable to understand the warnings and instructions, contact your local OxyBreath seller or authorized service before attempting to use this oxygen concentrator. -
Page 4: Introduction
This OXYGEN concentrator is not intended for life supporting or life sustaining applications. The hikoneb® OxyBreath Oxygen Concentrator is intended to provide supplemental oxygen as part of Long Term Oxygen Therapy for the clinically stable patient. It is not intended for life supporting, or life sustaining applications. -
Page 5: Safety Instruction
III- IMPORTANT SAFETY Instructions are shown Under the Following Headings: Caution: Important safety information for hazards that might cause serious injury. Warning: Information for preventing damage to the oxygen concentrator. Do Not: Information to which you should pay special attention. Important: Clarifying information, specific instructions, commentary, sidelights, or interesting points. - Page 6 Use No Oil or Grease Indicates important information about the possibility of spontaneous and violent ignition that may occur if oil, grease or other petroleum based substances come into contact with oxygen under pressure. Electrical Shock Indicates the presence of an electric shock hazard. Caution: To reduce the risk of electric shock, do not remove cover.
-
Page 7: Information
IV- OXYGEN CONCENTRATOR INFORMATION Kare's OxyBreath oxygen concentrators are quiet, reliable and low maintenance sources of oxygen. The OxyBreath is designed and constructed to consistently provide high concentrations of oxygen in a lightweight, compact cabinet that is easy to maneuver. Using Oxygen Concentrators Warning: Don't change the flow rate without consulting your physician. -
Page 8: Assembly Instructions
Important: For rated performance do not operate the Oxygen Concentrator outside of indicated boundaries. V- THE PROPER LOCATION Usage in environments other than those described above may result in the need for increased oxygen concentrator maintenance. Select a location that avoids fumes and pollutants and allows the oxygen concentrator to draw in room air through the intake filter on the top of the cabinet without being restricted. -
Page 9: Operating Of Oxygen Concentrator
Alarm System The oxygen concentrator has an alarm system with a red visual alarm indicator buzzer. The alarm system will activate in the event of an internal fault or power outage. VI- OPERATING YOUR OXYGEN CONCENTRATOR Your Kare dealer or authorized service representative will demonstrate how to operate the oxygen concentrator. - Page 10 2. Inspect Inlet Air Filter: Caution: Always check to see if the inlet air filter is clean. Air filter cleaning instructions are located in the maintenance section of this manual. 3. ON/OFF Button - Caution: If the unit has a detachable power cord (220-230V unit only) make sure that it has the proper ratings and is securely inserted into the receptacle on back of the unit.
-
Page 11: Troubleshooting
• Cannula or Mask 1. Follow the instructions supplied by the manufacturer. If no instructions are available - wipe with a damp cloth every eight- (8) hours. 2. Wash nasal prongs with liquid soap one (1) to two (2) times a week and rinse well. •... -
Page 12: Ix - Technical Data
IX - TECHNICAL DATA Oxyberath Mini 5 Flow Rate 1-5 LPM Oxygen Conc. 90± %3 Oxygen Output Preasure 0.07-0.09 MPa Power 220-230 V ~,50Hz, 1.2 A Working Temperature 50º F - 104º F (10º- 40º Cº) Alarms Electric cut off high temperature high, low preasure Filters... - Page 13 • Consult the manufacturer or service technician for help. Manufacturer : KARE MEDICAL LTD. CO. Adress : Ziya Gokalp Cad.36-23 Y.sehir /Ankara/Turkey Phone : +90 312 435 08 18 :+90 312 435 83 08 e-mail :export@kare-ltd.com...
