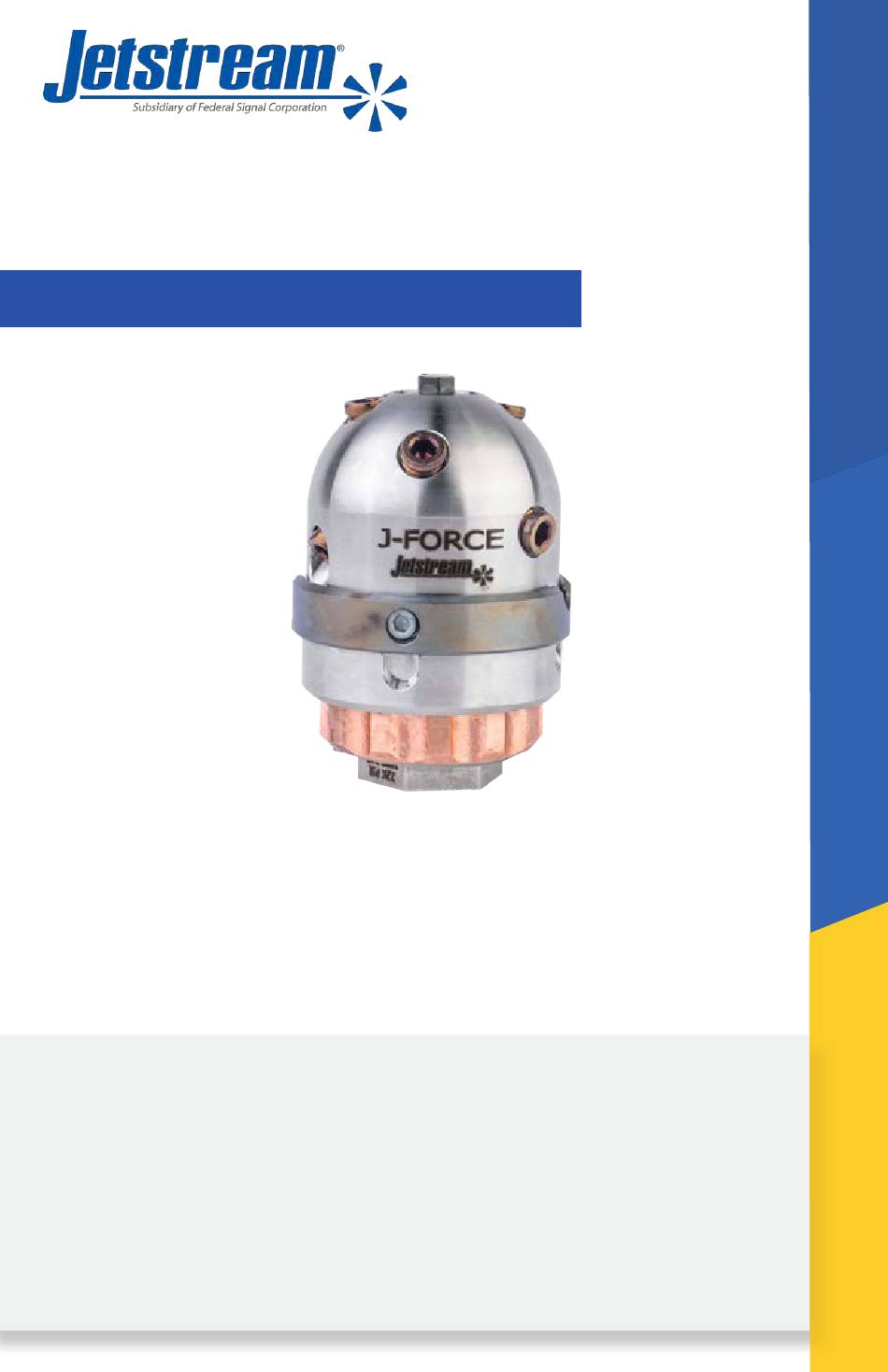

3" J-FORCE™
JF3X15 (PN 67859)
JF3X22 (PNs 67860, 67861, 67862, 67863, 67864)
PRODUCT INSTRUCTIONS
PI-198
The 3" J-Force
TM
navigate and clean 3" pipes with up to 90° bends. The 3" J-Force has
front, side, and rear jets that clear blockages, clean, and provide
thrust to propel the tool down the pipe. The nozzle comes equipped
with an eddy-current braking system which controls rotation speed
for maximum cleaning power and minimum wear.
Read these instructions thoroughly before installing, connecting, or using the
J-Force tool. If any questions remain, call JETSTREAM at (800) 231-8192 or (832)
590-1300. Also read the yellow JETSTREAM SAFETY WARNING pamphlet included
with the shipment of your new J-Force and reproduced inside this publication. This
product is sold with the understanding that the purchaser agrees to thoroughly
train all operators and maintenance personnel in the correct and safe installation,
operation and maintenance of the product and to provide adequate supervision of
personnel at all times. Retain these instructions for future reference. If this product
is resold or otherwise conveyed, purchaser must pass on the instructions to the
new user.
is a self-powered rotating nozzle designed to easily
Advertisement
Table of Contents
Related Manuals for Federal Signal Corporation Jetstream J-FORCE JF3X15
Summary of Contents for Federal Signal Corporation Jetstream J-FORCE JF3X15
- Page 1 3” J-FORCE™ JF3X15 (PN 67859) JF3X22 (PNs 67860, 67861, 67862, 67863, 67864) PRODUCT INSTRUCTIONS PI-198 The 3” J-Force is a self-powered rotating nozzle designed to easily navigate and clean 3” pipes with up to 90° bends. The 3” J-Force has front, side, and rear jets that clear blockages, clean, and provide thrust to propel the tool down the pipe.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section 1: Safety ..................... 3 Section 2: Product Description ............12 Section 3: Preparation for Use ............14 Section 4: Setup .....................15 Section 5: Operation ...................16 Section 6: Service ..................18 Section 7: Troubleshooting ..............21 Appendix A ......................23 Appendix B ....................... -
Page 3: Section 1: Safety
SECTION 1: SAFETY Incorrect Use of High Pressure Waterblast Equipment May Cause Serious Injury Read these instructions in their entirety before using any JETSTREAM products. This information was prepared to aid in the identification of potentially unsafe conditions when using high pressure waterblast equipment. It should be noted that other potential hazards may exist which might have not been mentioned in this brochure. - Page 4 GENERAL WATERBLAST 1. Use only clear, clean water in high pressure system. 2. Place barricades with warning signs or barricade tape around work area. 3. Outfit all operators with Personal Protective Equipment (PPE). Hard hat with plastic face shield, rainsuit, non-skid knee boots with metatarsal protection, gloves, ear protection and body armor rated for operating pressures are considered minimum safety equipment.
- Page 5 11. Properly tighten all high pressure connections. All NPT connections must have a minimum engagement of four (4) threads. Pipe (NPT) connections should be made up hand tight plus two (2) full wrenched turns. Do not tighten NPT threads past two (2) wrenched turns. Use wrench flats (when available) or a properly adjusted smooth jaw plier wrench (JS PN 64119) for tightening components.
-
Page 6: Pressure Relief Devices
18. If equipment malfunctions or a system malfunction is suspected, immediately stop cleaning activity and relieve the pressure in the system before attempting any repairs. Always follow the manufacturer’s repair instructions. 19. Only trained persons should be authorized to perform any maintenance or repair. -
Page 7: High Pressure Hose
6. Do not attempt to correct a leaking relief valve by increasing spring tension as this will increase its set pressure. 7. Do not use a pressure relief valve as a combination relief and throttling device. 8. Keep relief valve dry during freezing conditions. NOTE: Pressure relief devices are imperative for the protection of both operator and equipment from dangerous over-pressurization. - Page 8 only be properly installed with hydraulic crimping equipment. NOZZLES 1. Read General Safety section. 2. Nozzle flow ratings must be compatible with pump discharge and pump pressure rating. (See Nozzle Flow Rating Chart on page 27.) 3. Use only nozzles with a manufacturer’s pressure rating of at least the operating pressure or a burst rating or no less than 3.0 times the desired operating pressure.
- Page 9 3. Do not use a flex lance that has an unknown burst or unknown manufacturer’s operating pressure rating. 4. Never use a lance which is kinked, worn, frayed or whose abilities to hold pressure is questionable. 5. Do not use a lance which has damaged or missing threads. 6.
- Page 10 13. After use, drain, coil and store lance properly. Be sure safety tags remain intact. RIGID TUBE CLEANING LANCES 1. Read General Safety section and Nozzle Safety Warnings prior to connecting rigid lances. 2. Do not use a rigid lance with a burst rating less that 3.0 times the pressure at which it will operate.
-
Page 11: Replacement Parts
HIGH PRESSURE FITTINGS 1. Read General Safety section prior to installing fittings in system. 2. Use non-brass or non-cast iron fittings which are made for high pressure waterblast use. 3. Use only high pressure fittings which are clearly marked with the operating pressure. -
Page 12: Section 2: Product Description
SECTION 2: PRODUCT DESCRIPTION The 3” J-Force is a self-powered rotating nozzle that uses up to 8 P1 nozzles. The 3” J-Force has many features, including: • Spins on a film of high pressure water and has no ball bearings to replace. -
Page 13: Product Specifications
Product Specifications Model Name JF3X15 JF3X22 Maximum Operating Pressure (psi) 15,000 22,000 Minimum Operating Pressure (psi) 2,500 Maximum Flow (gpm) Maximum Operating Pressure (bar) 1000 1550 Minimum Operating Pressure (bar) Maximum Flow (l/min) Inlet Connection 3/8" NPT 9/16" Type M 3/8”... -
Page 14: Section 3: Preparation For Use
SECTION 3: PREPARATION FOR USE 3.0 The 3” J-Force is mounted to a flexible rubber waterblast hose that allows it to navigate 3” pipes with bends up to 90°. 3.1 Check that the 3” J-Force is free of debris and rotates smoothly. If not, disassemble the 3”... -
Page 15: Section 4: Setup
SECTION 4: SETUP 4.0 CONNECTING 3” J-FORCE Prior to installing the 3” J-Force onto the hose, flush the system to clear any debris. For 22,000 psi operation (9/16” Type M Male, 3/8”MP LH/RH, 9/16”MP LH/RH Inlet) 1. Apply anti-seize compound to the threads of the Type M connection or to the male MP hose/lance end. -
Page 16: Section 5: Operation
SECTION 5: OPERATION 5.0 OPERATING J-FORCE As per the WJTA-IMCA Recommended Practices, all operators shall follow the OSHA regulations for personal protective equipment. (OSHA guidelines for Personal Protective Equipment are available in document number 3151-12R 2004, which can be obtained from www.osha.gov.) All operators shall be issued suitable head protection, eye protection, hearing protection, body protection, hand and foot protection and respiratory protection (if needed). - Page 17 5.4 After use, used compressed air to blow out as much water from the tool as possible. Then spray the tool with a water-displacing lubricant (e.g. WD-40). Make an effort to get the lubricant inside the tool. This prevents corrosion from starting internally, which could affect the tool’s ability to spin the next time it is used.
-
Page 18: Section 6: Service
SECTION 6: SERVICE JF3X15 (PN 67859) & JF3X22 (PN 67860, 67861, 67862, 67863, 67864) Item Part Number Description Adapter, 9/16 Type M 67101 (ONLY used in 67860) 67826 Retaining Ring Figure A 67093 Brake Adjuster 67856 Inlet Nut (Assy 67859 - 3/8 NPT) 67102 Inlet Nut (Assy 67860 - 9/16 Type M) 67100... - Page 19 6.0 3” J-FORCE MAINTENANCE The 3” J-Force utilizes water-bearing technology coupled with an eddy-current braking system to control the rotation speed. No oil is required, allowing for a quick and pain- free rebuild of the tool. See YouTube for videos showing the 3” J-Force. https://www.youtube.com/user/JetstreamWaterblast The use of gloves is recommended when handling the tool after operation as the body may reach temperatures greater than...
- Page 20 6.2 ASSEMBLY (See Figure A) 1. Ensure the new mandrel (8a), flange bushing (8b), and head assembly (7) are clean. 2. Install new o-rings (8e) and backup rings (8d) onto the flange bushing (8b). Apply a light coat of o-ring lube to o-rings to reduce friction and ease installation.
-
Page 21: Section 7: Troubleshooting
SECTION 7: TROUBLESHOOTING 7.0 3” J-FORCE TROUBLESHOOTING Problem Possible Cause Remedy Will not spin Nozzles worn, plugged, Replace nozzles or wrong size O-ring / backup ring Replace o-rings / failure backup rings Galling between Replace damaged mandrel and flange components (rebuild bushing kit) Debris... - Page 22 This page intentionally left blank. PI-198 January 2022...
-
Page 23: Exploded Views
APPENDIX A Exploded Views JF3X15 (PN 67859) & JF3X22 (PN 67860, 67861, 67862, 67863, 67864) Item Part Number Description Adapter, 9/16 Type M 67101 (ONLY used in 67860) 67826 Retaining Ring 67093 Brake Adjuster 67856 Inlet Nut (Assy 67859 - 3/8 NPT) Figure C 67102 Inlet Nut (Assy 67860 - 9/16 Type M) - Page 24 Parts Placement Figure D PI-198 January 2022...
- Page 25 KIT PN TOOL PN INLET CONNECTION KIT TYPE MAX PSI 67871 67859 3/8” NPT STARTER 67872 67859 3/8” NPT PREMIUM 67873 67860 9/16” TYPE M Male STARTER 67874 67860 9/16” TYPE M Male PREMIUM 67875 67861 3/8” MP Tube LH STARTER 67876 67861...
- Page 26 Backout Preventer • Prevents nozzle from exiting pipe • 4” - 8” (100-200mm) pipes • Includes clamp for securing backout preventer to pipe • Diameter of nozzle must be at least 1-1/2” (38mm) Bushing Removal Tool (PN 67883) • Aids in bushing removal during rebuild PI-198 January 2022...
-
Page 27: Flow Charts
APPENDIX C Flow Charts 3" J-Force, Polisher (Forward Nozzles Plugged) 2500 psi 5000 psi 7500 psi Flow Pull Pull Pull (gpm) (lbf) (lbf) (lbf) Side x 2 Rear x 2 Side x 2 Rear x 2 Side x 2 Rear x 2 0.018 0.042 0.022... - Page 28 3" J-Force, Polisher (Forward Nozzles Plugged) 10000 psi 12500 psi 15000 psi Flow Pull Pull Pull (gpm) (lbf) (lbf) (lbf) Side x 2 Rear x 2 Side x 2 Rear x 2 Side x 2 Rear x 2 0.018 0.032 0.018 0.029 0.018...
- Page 29 January 2022 PI-198...
- Page 30 PI-198 January 2022...
- Page 31 January 2022 PI-198...
- Page 32 PI-198 January 2022...
- Page 33 January 2022 PI-198...
- Page 34 PI-198 January 2022...
- Page 35 January 2022 PI-198...
- Page 36 PI-198 January 2022...
- Page 37 This page intentionally left blank. January 2022 PI-198...
-
Page 38: Warranty
WARRANTY Limited Warranty. Each Waterblast Unit, Bareshaft Pump, and Fluid End manufactured by Jetstream is warranted against defects in material and workmanship for a period of 12 months or 1,000 hours, provided it is used in a normal and reasonable manner and in accordance with all operating instructions. - Page 39 manner or for a purpose not recommended by Jetstream including failures or malfunctions resulting from corrosion, misapplication, overpressurization, inadequate pump suction conditions, improper water quality, improper maintenance, or misuse. 5. Repairs, modifications or alterations which in Jetstream’s sole judgment, have adversely affected the machine’s stability, operation or reliability as originally designed and manufactured.
- Page 40 Jetstream products are also serviced by FS Solutions. With 13 convenient locations across the United States, FS Solutions provides high-performance parts, accessories, Jetstream rentals, repair, rebuild and safety training. ® Gonzales, LA Highland, IN Lakewood, WA Toledo, OH (225) 647-0660 (219) 924-3180 (253) 584-0653 (888) 415-7368...
