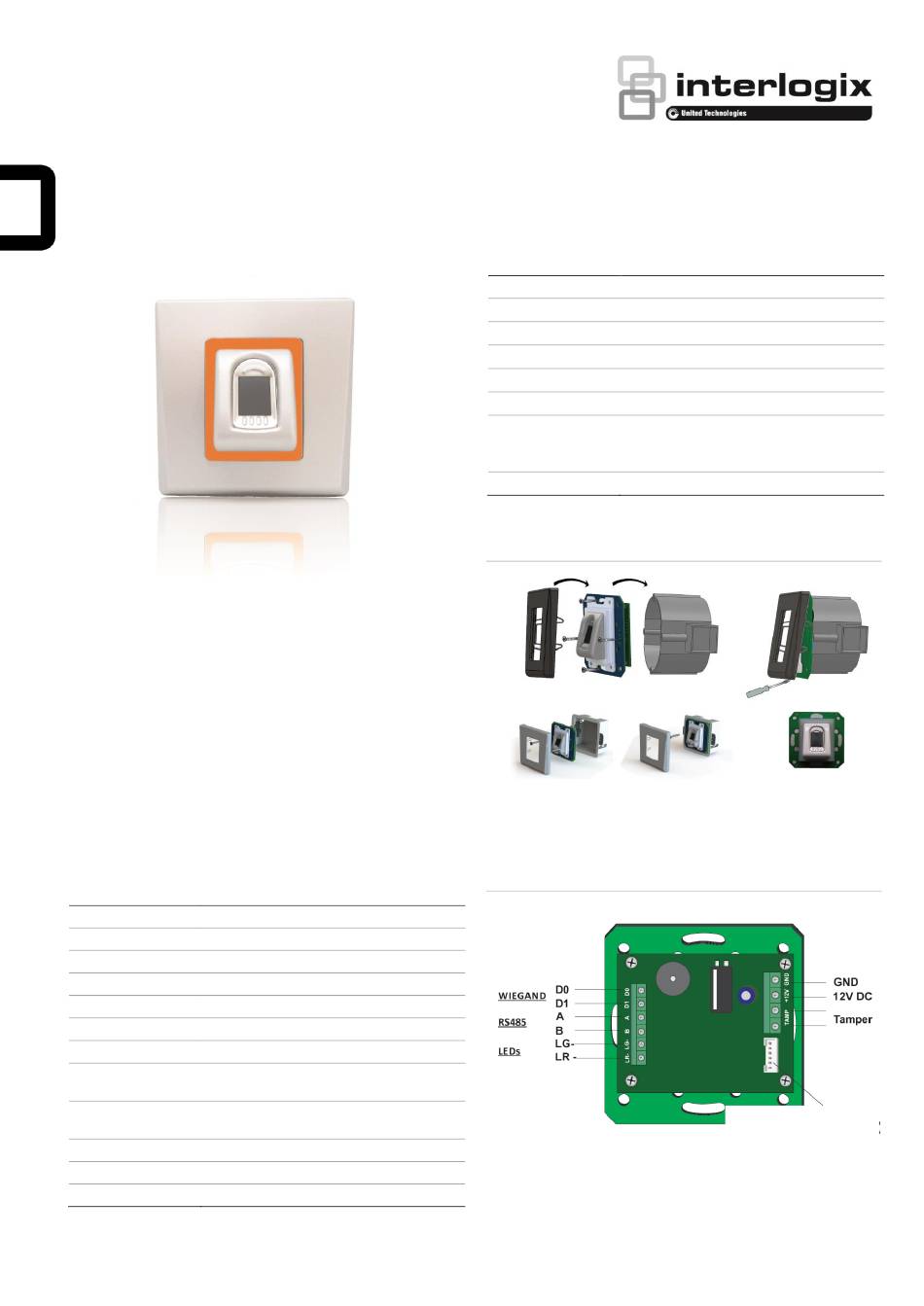

ACL800FLW-BC – Flush Mount Biometric Touch
capacitive Wiegand Reader - Installation Manual
Description / Operation
ACL800FLW-BC is a Wiegand biometric reader for indoors
access control applications. It offers storage up to 9500
fingerprints and programmable Wiegand Output (26 to 80 bits).
Configuration of the readers and fingerprint enrollment is done
through ACL800 BioManager software.
Connection between the biometric readers is RS485 and it is
used for fingerprint transfer and configuration.
The connection between the biometric readers and the PC is
done through a ACL800FL-CONV-W converter (RS485 to
TCP/IP). Only one converter is needed per system and
supports up to 31 biometric readers
The tamper switch output can trigger the alarm system, if an
attempt is made to open or remove the unit from the wall.
Specifications
Fingerprint capacity
Up to 9500 fingerprints
Technology
Biometry
Authentication
Finger
Fingerprints per user
1-10 fingerprints
Interface
Wiegand 26 to 80 bits
Protocol programming
By ACL800 BioManager Software
Cable distance
50 m
Fingerprint Sensor
Touch Capacitive
Type
1:1000 identification
970 msec, including feature extraction time
time
Fingerprint enrollment
On the reader or from the USB desktop reader
Green and Red LED
Externally controlled
Orange LED
Idle mode
© 2018 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
Buzzer ON/OFF
Yes
Yes
Backlight ON/OFF
Yes, activated on frame removal
Tamper
100 mA at 12 VDC
Current requirements
40
IP Rating
9 to 14 VDC
Supply voltage
Operating
0 to +40°C
Temperature
5 to 93% noncondensing
Relative humidity
80 x 80 x 9 mm
Dimensions
Mounting
Figure 1: Mounting instructions
Wiring
Figure 2: Wiring
P/N 1073497A• REV 01.01 • ISS 27AUG18
Connection to proximity
reader or keypad
Advertisement
Table of Contents
Summary of Contents for United Technologies Interlogix ACL800FLW-BC
- Page 1 Green and Red LED Externally controlled Orange LED Idle mode P/N 1073497A• REV 01.01 • ISS 27AUG18 © 2018 United Technologies Corporation. Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
-
Page 2: Wiring Description
Wiring description Enrollment 12 VDC +12 VDC Figure 5: Enrollment Ground A (RS485) B (RS485) Tamp Tamper Tamp Tamper LED green - LED red - Data 1 Data 0 Configuring the biometric readers in ACL800 BioManager Connecting biometric readers to controllers ACL800 BioManager is software for fingerprint management of Biometric readers, when used with third party access Figure 3: Wiring instructions... -
Page 3: Add Reader
Add Reader •Right-click on the portal connected to the reader and select “Add reader” If reader is not online, following line is added on top of the event table Note: The reader can be added automatically with the “search” function •Select the type of the reader and fill the reader form. - Page 4 4. Place the finger on the reader and fingertip will turn red, orange or green, with percentage of successful enrollment shown next to the fingertip. ADD user 1. Open the Users window and create a new user. Click on “New User”, put a name and ID (card number). In these 25 sec.
-
Page 5: Deleting Fingerprints
Note: If more fingerprints are added for one user, all fingerprints will send the same Wiegand code to the controller, the one written in the field User ID (card Number). Note: Users can be imported from Excel file or from TruPortal Delete one or more fingerprints ... -
Page 6: Safety Precautions
Note: Use this feature when you change or add a Safety precautions reader, if pending tasks are deleted in the software or if there are doubts that fingerprints in the reader Do not install the device in a place subject to direct sun light memory are not synchronized with the software without protective cover. -
Page 7: Regulatory Information
Regulatory information Trademarks and The trade names used in this document may be patents trademarks or registered trademarks of the manufacturers or vendors of the respective products. Manufacturer Interlogix. 2955 Red Hill Avenue, Costa Mesa, CA 92626 5923, USA Authorized EU manufacturing representative: UTC Fire &...
