Summary of Contents for COMEM FOTEMP C15

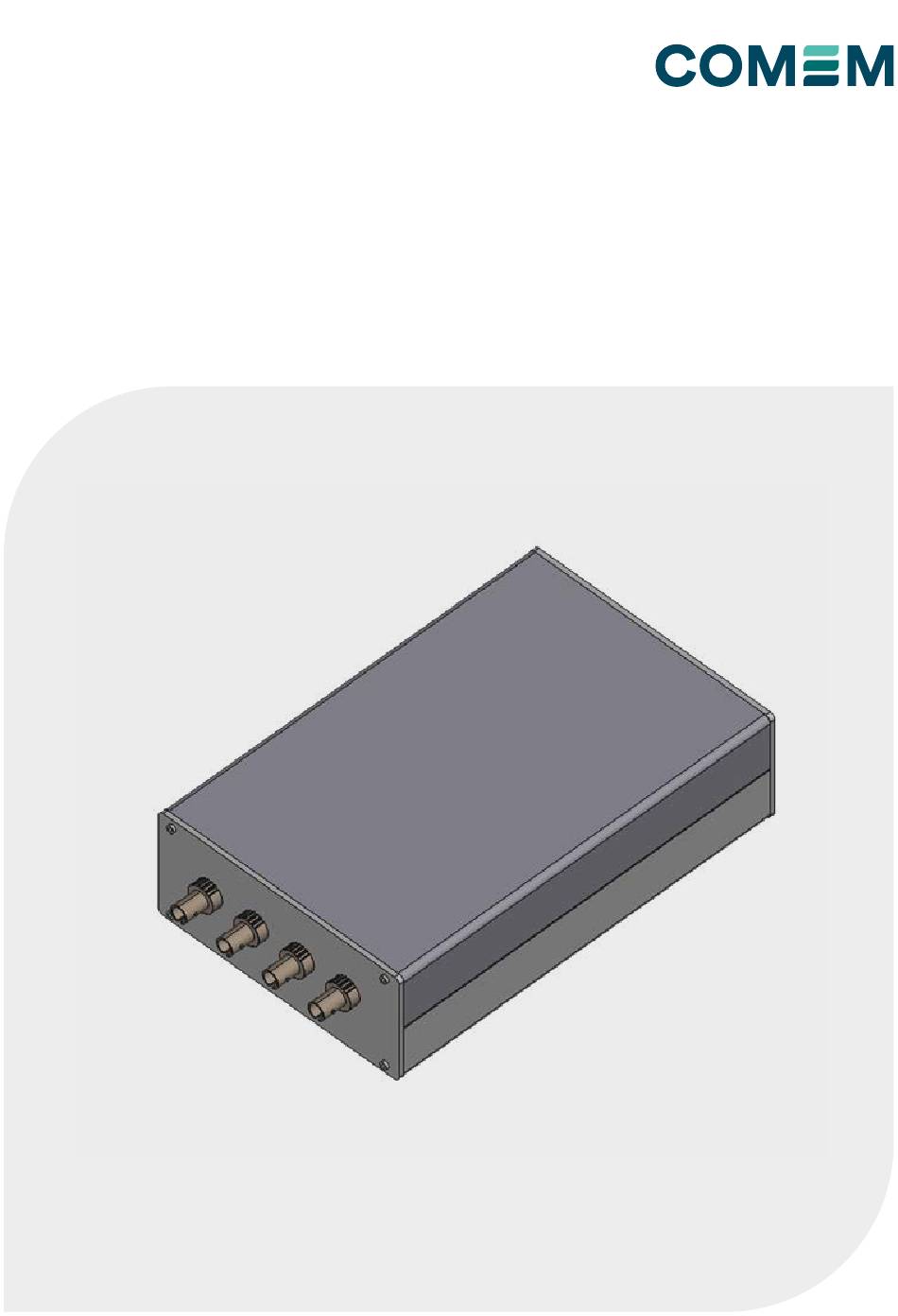

- Page 1 INSTRUCTION MANUAL FOTEMP C15...
-
Page 2: Table Of Contents
CONTENT INDEX Content index General ............3 Safety ............3 Unpacking, inspection, service .....3 Product description ........3 Calibration ............4 Quick start ............4 Installation ............5 Sensor connection ........6 Sensor handling ..........6 Sensor/connector cleaning ......7 Serial communication ........7 Troubleshooting ...........8... -
Page 3: General
TD +49 351 843 599 0 Safety instructions in this manual are shown in three different forms to emphasize important information. Equipment return address COMEM Optocon GmbH WARNING Washingtonstrasse 16/16a 01139 Dresden, Germany Indicates a potentially dangerous situation that can result in Disposal equipment damage, injury or death if not avoided. -
Page 4: Product Description
FOTEMP C15 Product description The FOTEMP C15 comes with compact housing and Measurement offers various mounting options, making it suitable for a Measurement Range -200 °C to 300 °C wide range of external conditions. The system uses fiber Measuring Time <... -
Page 5: Quick Start
If you need to extend the fiber optic temperature sensor, please use the COMEM extension cables. FOTEMP C15 is only compatible with COMEM optocon fiber optic For thermometers with less than four channels, only 1 sensors. Do not use temperature sensors from other brands. -
Page 6: Sensor Connection
FOTEMP C15 Sensor connection Sensor handling Bending radius: Fibers with a core diameter of 200 μm have a short time (≤10 min) bending radius of 10,0 mm Ferrule key and a long time (>10 min) bending radius of 27,0 mm. -
Page 7: Sensor/Connector Cleaning
Sensor/connector cleaning Mechanical load: Avoid stretching! Avoid pinch points! Avoid shocks on sensor tip and connector head! Instructions Storage: Clean the ST sensor’s connector with the connector When not in use, the sensor should be carefully stored in cleaner. Softly press the connector on the cloth tape and its delivery box or suitable storage container to prevent rotate across the tape while rotating the connector. -
Page 8: Serial Communication
In case you need any further information, contact us at customerservice@it.comem.com www.comem.com The data and illustrations are not binding. We reserve the right to modify the contents of this document without prior notice following the technical and product developments. Copyright 2024 COMEM. All rights reserved Manual-10-2024...
