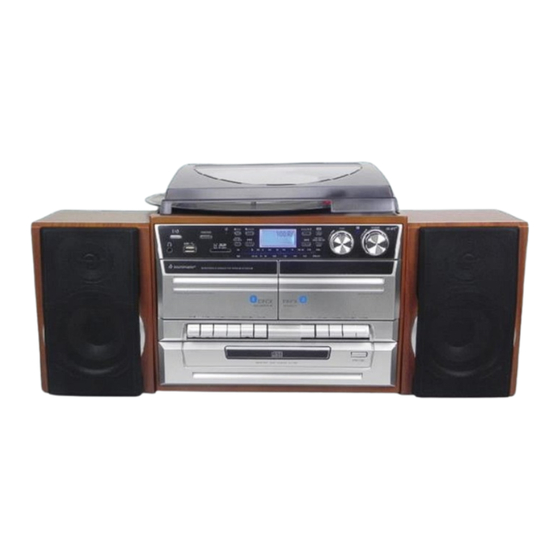

DELUXE 7 IN 1 MUSIC SYSTEM
Item codes: M487
Instructions for Use
Please read and retain these instructions for future reference
Power details:
FM:
87.5 -108
DAB: Band III: 174-240MHz
Power Supply:
Power consumption: 20W
2pc AAA size batteries (not included)
Please read this instruction manual thoroughly before starting and ensure you are familiar
with the operation of your new Music System with Turntable.
v002: 18/06/24
MHz
AC 230V~50Hz
ALWAYS USE ALKALINE BATTERIES.
DO NOT USE LITHIUM BATTERIES.
Advertisement
Table of Contents
Related Manuals for Bergstrom M487
Summary of Contents for Bergstrom M487
- Page 1 DELUXE 7 IN 1 MUSIC SYSTEM Item codes: M487 Instructions for Use v002: 18/06/24 Please read and retain these instructions for future reference Power details: ALWAYS USE ALKALINE BATTERIES. DO NOT USE LITHIUM BATTERIES. 87.5 -108 DAB: Band III: 174-240MHz...
-
Page 2: Location Of Controls
LOCATION OF CONTROLS 1) Turntable cover 2) LCD display 3) Stop /Enter button 4) Record button 5) Standby LED indicator 6) On/Standby button 7) Earphone jack 8) USB Socket 9) Cassette door (1) 10) Function button 11) Turntable platter 12) Mem/Clock-Adjust button 13) Skip/tuning Down button 14) Cassette 1 control key... - Page 3 Caution: Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This unit should not be adjusted or repaired by anyone except qualified service personnel. Important: Since movement of the CD mechanism and the sensitive circuitry may cause interference to the radio tuner nearby, switch this unit off while operating other radio devices Remote control transmitter Battery installation (battery not provided)
- Page 4 In DAB/FM mode, press to see the broadcast information Press to active encoding/Mp3 file copy function In encoding mode: press to active track separation function Precautions for use Installation • Unpack all parts and remove protective material. • Do not connect the unit to the mains before checking the main voltage and before all other connections have been made.
- Page 5 Auto tuning (on the remote control only) 1. Set the unit to FM mode. 2. Press the Scan button once on the remote control; unit will start to scan at tuning up direct until radio station received. Press and hold the Scan button on the remote control for a second, the unit will scan to tuning down direction.
- Page 6 3. Switch on the Bluetooth feature of your BT device (such as mobile phone) and select “ M487 ” on the BT equipment to connecting. 4. Once the connecting was finish and connect successfully, the word “ Bluetooth “ will be remained without flashing on LCD display (2).
- Page 7 ⚫ For MP3 Disc 7. After focus search is performing, the total number of track and album will be shown on the LCD display (2). The unit will start to plat directly. 8. Turn “Folder/Pre up /down ” knob on the remote control to select the folder number. 9.
- Page 8 For MP3 Disc (1) repeat 1 (2) repeat 1 folder (3) repeat all tracks (5) off mode random Play mode Indicator on LCD display Repeat track Rep1 Repeat folder Rep F Repeat all Rep A Random Rand Off mode -------------- ⚫...
- Page 9 Playback of MP3 song via USB storage media Connecting The system is able to decode and playback all MP3 file which stored in the memory media with USB connecting port 1. Set the system at standby mode first or other function except USB mode.
- Page 10 B) Copying of MP3 file If putting a MP3 disc instead of a CD-disc, the system will copy the files to the USB if press the “ ” button (4). The operation procedures is same as CD encoding as stipulate on above, and the system will switch to copying mode only if MP3 file being read.
- Page 11 Phono Stylus assembly Noted: Remove the stylus protector. Be sure that the tone arm is being detached from the tone arm rest before operating and re-secured again afterwards. 1. Select to “Phono” function (10). 2. Set the speed selector (27) to the proper position depending on the record to be played.
- Page 12 More features A. Sleep function (on remote control only) 1. Press “Sleep” button on remote control, “SLP-120” will be shown on the LCD display (6). 2. Keep pressing the button to adjust the sleep timer in the order of 120>90> 60 > 45 >….15 minutes respectively and sleep icon “...
-
Page 13: Warnings And Safety Instructions
Aux-in connection Connect the unit to other device by connecting the Aux in jack (34) with a 3.5mm cable(not provided) and other end connect to the external device such as Discman/MP3 player to perform the music playback or encoding function etc. 1. -
Page 14: Battery Installation
• The mains plug is used as disconnect device. The mains plug of apparatus should not be obstructed OR should be easily accessed during intended use. To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains. -
Page 15: Care And Cleaning Instructions
Caution: Under the environment with electrostatic discharge, this device may malfunction and require user to reset. ELECTRIC SHOCK HARZARD is possible if the unit is opened; Never open and dissemble the unit to avoid ELECTRIC SHOCK. CARE AND CLEANING INSTRUCTIONS •...
