Trekkrunner TR8718Ri Owner's Manual

Hide thumbs

Advertisement

Table of Contents

IMPORTANT !
Please read all instructions carefully before using this product.
Retain this manual for future reference.
The specifications of this product may vary slightly from the illustrations and are subject to
change without notice.
Before You Start
Thank you for purchasing this Product! For your safety and benefit, read this manual carefully before
using the machine.
Prior to assembly, remove components from the box and verify that all the listed parts were supplied.
Assembly instructions are described in the following steps and illustrations.
R
E
C
U
M
R
E
C
U
M

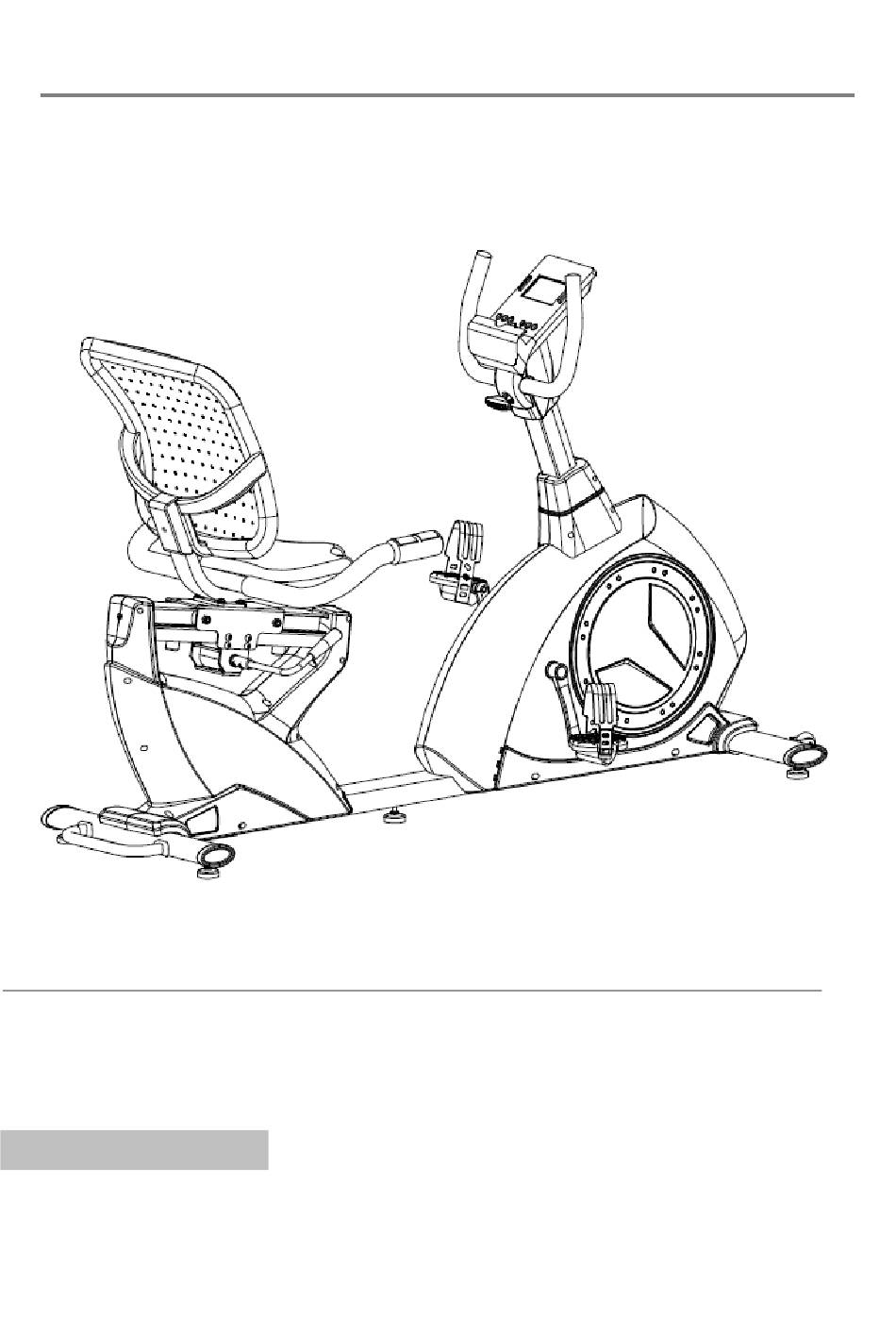

OWNER'S MANUAL
B
E
N
T
B
E
N
T
B
I
K
E
B
I
K
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR8718Ri and is the answer not in the manual?

Questions and answers

Summary of Contents for Trekkrunner TR8718Ri

  • Page 1 OWNER’S MANUAL IMPORTANT ! Please read all instructions carefully before using this product. Retain this manual for future reference. The specifications of this product may vary slightly from the illustrations and are subject to change without notice. Before You Start Thank you for purchasing this Product! For your safety and benefit, read this manual carefully before using the machine.

  • Page 2: Important Safety Notice

    IMPORTANT SAFETY NOTICE PRECAUTIONS BE SURE TO READ THE ENTIRE MANUAL BEFORE YOU ASSEMBLE OR OPERATE YOUR MACHINE. IN PARTICULAR, NOTE THE FOLLOWING SAFETY PRECAUTIONS: Check all the screws, nuts and other connections before using the machine for the first time and ensure that the trainer is in the safe condition.

  • Page 3: Exploaded Diagram

    EXPLOADED DIAGRAM...

  • Page 4: Parts List

    PARTS LIST Part # Description Part # Description Main frame Backrest Front stabilizer Round end cap Rear stabilizer Phillips screw Handlebar post T- handle knob Fixed handlebar Spacer Nylon nut M8 Flat washer Flat washer D8xΦ16x1.5 Foam grip Roller Extension pulse wire 1 Allen bolt M8x40xL12 Extension pulse wire 2 Oval End cap 1...
  • Page 5 ASSEMBLY INSTRUCTIONS Step 1: Lock the Lifting handle (27) to the rear Stabilizer (3) with hex Bolt (26) and arc Washer (20). Lock the front Stabilizer (2) and rear Stabilizer (3) to the main Frame (1) with Allen bolt (13), spring Washer (14) and arc Washer (15) as shown.
  • Page 6 Step 2: Connect the sensor Wire (21) and extension pulse Wire 1 (36) to the extension Wire (22) and extension pulse Wire 2 (37), and then lock the handlebar Post (4) on the main Frame (1) with the Allen bolt (19), spring Washer (14) and flat Washer (7) as shown. At last, lock the protective Guard (23L/R) to the main Frame (1) with Screws (24).
  • Page 7 Step 4: Connect the extension pulse Wire 2 (37), extension Wire (22) with the cables of the Meter (38), and then lock the Meter (38) onto the meter bracket of the handlebar Post (4) with Screws (31) as shown. Attach the handlebar Cover (25a/b) to the handlebar Post (4) with Screws (24). Step 5: Lock the Pedal (18L/R) to the Crank (17L/R) with wrench.
  • Page 8 Step 6: Connect the pulse Wire (45) with the extension pulse Wire 3 (44) of the main Frame (1), then lock the Seat frame (50) on the Slider assembly (46) with Allen bolt (28) and flat Washer (43) as shown. Lock the Leveler-Bar (41) to the eccentric Shaft (39) with Inner hexagon bolt (40).
  • Page 9 SM2580-67 and iConsole App INSTRUCTION MANUAL Support devices: I 1155 - Support iOS devices: iPod touch (5th generation) iPod touch (4th generation) iPod touch (3rd generation) iPhone 5S iPhone 5C iPhone 5 iPhone 4S iPhone 4 iPhone 3GS iPad Air iPad 4 iPad 3 iPad 2...

  • Page 10: Key Function

    DISPLAY FUNCTIONS : ITEM DESCRIPTION TIME .Workout time displayed during exercise. .Range 0:00 ~ 99:59 SPEED .Workout speed displayed during exercise. .Range 0.0 ~ 99.9 DISTANCE .Workout distance displayed during exercise. .Range 0.0 ~ 99.9 CALORIES .Burned calories during workout display. .Range 0 ~ 999 PULSE .Pulse bpm displayed during exercise.

  • Page 11: Workout Selection

    OPERATION: POWER ON Plug in power supply, computer will power on and display all segments on LCD for 2 seconds. After 4 minutes without pedaling or pulse input, console will enter into power saving mode. Press any key may wake the console up. WORKOUT SELECTION Press UP and Down to select workout Manual →...
  • Page 12 Sporty Mode Press UP or DOWN to select workout program, choose Sporty mode and press Mode to enter. Press UP or DOWN to preset TIME. Press START/STOP key to start workout. Press UP or DOWN to adjust load level. Press START/STOP key to pause workout. Press RESET to reverse to main menu. Cardio Mode Press UP or DOWN to select workout program, choose H.R.C.
  • Page 13 NOTE: 1. Once console is connect to tablet via Bluetooth, the console will power off. 2. Please exit iconsole app and turn off the Bluetooth from iPad, then the console will power on again. - 2 -...

  • Page 14: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week.
