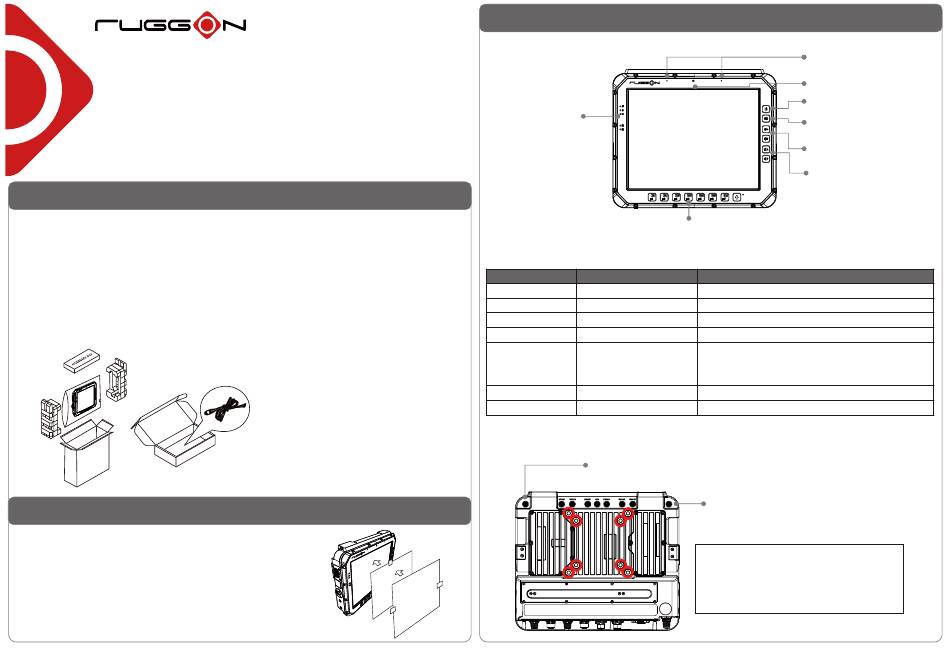

RuggON VULCAN X Quick Start Manual

PACKAGE LIST
Before you begin the installation or configuration process, make sure all the components
and accessories are intact. Contact your representative if any is missing or damaged.
Please verify the delivery of the contents upon receipt.
VULCAN X Vehicle Mount Computer (Model: VX-501)
■
Quick Start Guide
■
Touch Screen Protection Film
■
Accessory Box Enclosed with One M12 Cable with Fork Terminals (Length: 2 Meters)
■
NOTE: The packaging material provides optimal protection to your device. After unpacking, DO
store the original packaging material in the event that you need to return for shipment.
TOUCH SCREEN PROTECTION FILM
The protection film that is attached to the screen in the
package is intended for you to increase the durability of
touch screen and protect it from scratching, etching, and
damage.
VULCAN X
VULCAN X
Vehicle Mount Computer
Quick Start Guide
PRODUCT INTRODUCTION

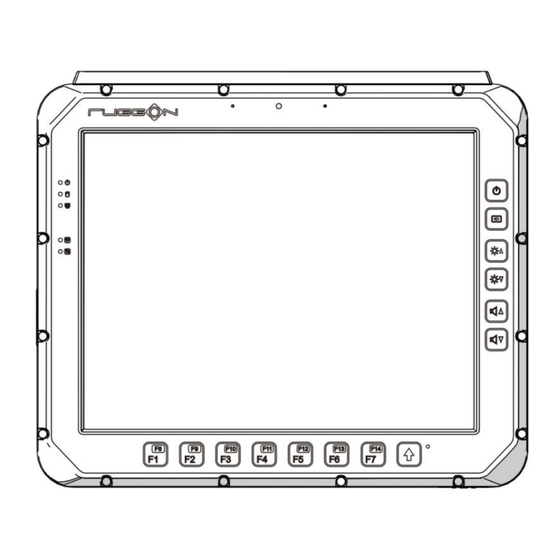

Front View
Power, Storage,
Defrost and
Communication
LED indicators
Programmable Keys
The LED indicators on VULCAN X show the operating status of your system.
LED Status
Power Blink Green
Power Blink Yellow
Power Solid Green
Power Blink Red
Defrost Solid Green
WWAN Solid Green
WIFI/ BT Solid Green
Rear View
Wi-Fi/BT antenna
CONN. (RP-SMA jack)
Internal microphone
Ambient light sensor
Power
Display on/off
(Defrost on/off)
Brightness adjustment
Volume
Description
Power up
Load BIOS
System ready to use
Vehicle battery abnormal
Function turn on/defrost function mark
(defrost LED light will only be present for
defrost versions)
WWAN enabled
WIFI/ BT enabled
Wi-Fi/BT antenna
CONN. (RP-SMA jack)
The VULCAN X supports a standard VESA
version MIS-D, 75/100, C (75/100mm distance
quadrate order, M5 thread, deepness 9mm)
with four mounting holes on the back side of
the device.
P/N: 25U000013-001
