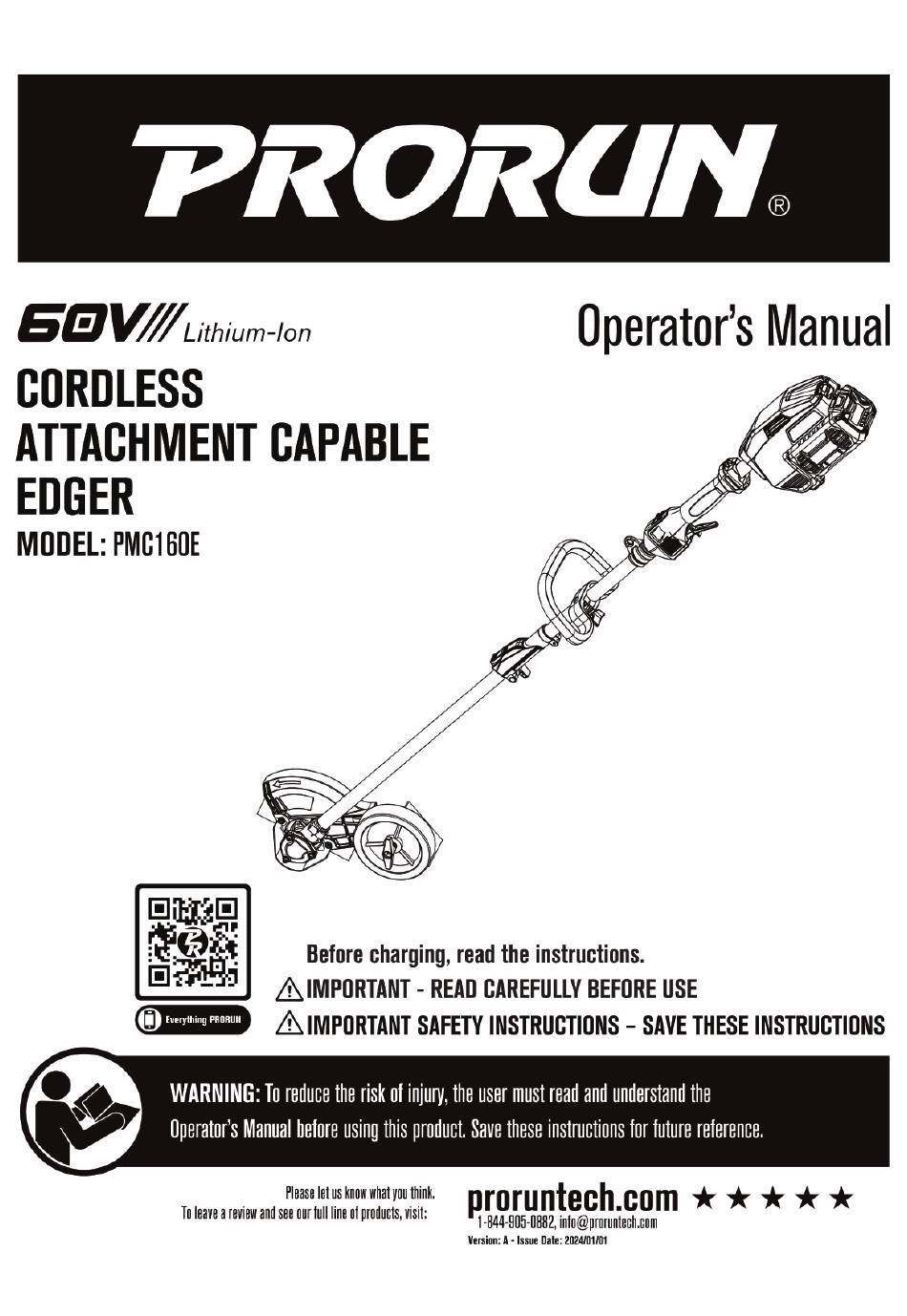

PRORUN PMC160E Operator's Manual

60v lithium-ion cordless attachment capable edger

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the PMC160E and is the answer not in the manual?

Questions and answers

Summary of Contents for PRORUN PMC160E

Page 2: Table Of Contents
TABLE OF CONTENTS 1.GENERAL MACHINE SAFETY WARNINGS 2.SAFETY INSTRUCTIONS FOR STRING TRIMMER 3.TRANSPORTING AND STORAGE 4.BATTERY AND BATTERY CHARGER 5.SYMBOLS 6.SPECIFICATIONS 7.KNOW YOUR MACHINE 8.BATTERY AND CHARGER OPERATION 9.ASSEMBLY INSTRUCTIONS 10.OPERATION 11.MAINTENANCE AND REPAIR 12.TRANSPORTING, CLEANING, AND STORING 13.TROUBLESHOOTING 14.DISPOSAL 15.EXPLODED VIEW...
Page 3: General Machine Safety Warnings
1. General machine safety warnings WARNING Read all safety warnings, instructions, illustra- tions and speciﬁcations provided with this machine. Failure to follow the warnings and instructions may result in electric shock, ﬁre, and/or serious injuries. Save all warnings and instructions for future reference. The term “machine”...
Page 4 machine may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
Page 5 ﬁre. Service a) Contact PRORUN Customer Service with questions or issues with this machine. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery...
Page 6: Safety Instructions For String Trimmer
2. SAFETY INSTRUCTIONS FOR EDGER a) Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. b) Thoroughly inspect the area for wildlife where the machine is to be used.
Page 7: Transporting And Storage
the risk of loss of control, slipping and falling which may result in personal injury. p) Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut or damaged by the line or cutter. q) Keep all parts of the body away from the moving edger cutter blade.
Page 8: Battery And Battery Charger
Only use original batteries for products and only charge them in an original battery charger. Battery charger ® The battery chargers are only used for charging of PRORUN 60V replacement batteries. – This manual contains important safety and operating instructions for battery charger.
Page 9 Regularly check that the battery charger connection wire is intact – Keep all cords and extension cords away from water, oil, and – sharp edges. Make sure the cord is not pinched in doors, fences, or the like. Otherwise, it can cause the object to become live. Never clean the battery or the battery charger with water, –...
Page 10 Battery – Do not dismantle, open or shred secondary batteries. – Keep batteries out of the reach of children. – Do not expose batteries to heat or ﬁre. Avoid storage in direct sunlight. – Do not short-circuit a battery. Do not store batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
Page 11: Symbols
5. SYMBOLS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it. Because a chain saw is a high-speed cutting tool, special Safety Alert safety precautions must be observed to reduce the risk of personal injury.
Page 12 Symbols on the product or its packaging indicate that this product cannot be handled as domestic waste. This product Waste must be deposited at an appropriate recycling facility. Use and store charger only indoors in dry rooms. Indoor use only Battery charger is belong to Class II tools.
Page 13: Specifications
6. SPECIFICATIONS Machine model PMC160E DC 60V Voltage Motor type BLDC Maximum speed of output shaft 3150 RPM (high), 2350 RPM (low) Weight (without battery) 12.65 lb (5.74 Kg) Cutting swath 17 in (430 mm) Sound pressure level L 85.1 dB(A)
Page 14: Know Your Machine
7. KNOW YOUR MACHINE 9.Speed switch 1.Cutting blade 10.Trigger lock out 2.Guard 11.Variable speed switch trigger 3.Cutting depth adjuster 12.Rear handle 4.Cutting depth wheel 13.Battery 5.Lock Pin 14.Battery release button 6.Lock knob 15.Harness 7.Front handle & barrier bar 8.Suspension ring IMPORTANT! The safe use of this product requires an understanding of the information located on the product and in this operator’s manual, as well as a knowledge of the projects you are attempting.
Page 15: Battery And Charger Operation
This section describes the battery and battery charger safety for your battery product. Only use PRORUN original batteries for PRORUN products and only charge them in an original battery charger from PRORUN. The batteries are software encrypted. 1. Electric plug 5.
Page 16 The battery is ok, but temperatures are between 41 °F (5 °C) and ﬂashing red. may be experiencing temperature deviation. 113 °F (45 °C). Wait the battery cool down. Charger LED Battery is damaged. Contact PRORUN Customer Service. always light red. Charger is damaged.
Page 17: Assembly Instructions
9. ASSEMBLY INSTRUCTIONS Unpacking This product requires assembly of the adjustable front-assist handle and cutting guard. – Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. – Inspect the product carefully to make sure that no breakage or damage occurred during shipping. –...
Page 18 Fitting the angle gear The cutting equipment...
Page 19: Operation
10. OPERATION Install and remove the battery pack – Align the raised ribs of the battery pack with the mounting slots in the string trimmer’s battery port. – Slide the battery pack forward into the string trimmer until you hear the release button make an audible click.
Page 20 Speed Switch Trigger lock-out Trigger WARNING! The machine continues to work for some time even after the power switch trigger has been released! Wait until the cutting accessories come to a complete stop before you put the machine dow. Speed switch The machine has two speed options, high speed (3150 RPM) and low speed (2350 RPM).
Page 21 Basic working techniques – Always ensure you have a safe and stable working position. – Always hold the machine with both hands. Hold the machine on the right side of your body. – Use your right handle to control the trigger setting. –...
Page 22: Maintenance And Repair
• • Servicing and Repairing the Battery. The battery requires no servicing and cannot be repaired. – If the battery has a malfunction or is damaged: Contact PRORUN Customer Service an replace the battery. • • Servicing and Repairing the Charger The charger requires no servicing and cannot be repaired.
Page 23: Transporting, Cleaning, And Storing
DO NOT ATTEMPT TO REPAIR THE BATTERY! To avoid injury and risk of ﬁre, explosion, or electric shock, and to avoid damage to the environment: – Cover the battery's terminals with heavy-duty adhesive tape. – DO NOT attempt to remove or destroy any of the battery pack components. –...
Page 24: Troubleshooting
Battery is not charged. Charge the battery pack according to the instructions included with your model. Faulty with the machine. Contact PRORUN Customer Service. Motor runs, but trimmer Remove battery, clear debris blockage from Debris or other may be head do not move.
Page 25: Exploded View
15. EXPLODED VIEW...
Page 26 15. EXPLODED VIEW DESCRIPTION QTY. DESCRIPTION QTY. Upper cover decoration Square neck bolt Motor Front handle Screw ST4*16 Barrier bar Big gear wheel Locking knob Small gear wheel Driver shaft Driver shaft Circlip external circlips Connecting shaft Ball bearing screw M4*10 Bearing sleeve Clamping cap Bearing...
Page 27 15. EXPLODED VIEW...
Page 28 15. EXPLODED VIEW DESCRIPTION QTY. DESCRIPTION QTY. Spring washer 8 Screw M8 x25 Cap washer Straight knob Blade Nut M8 Blade retainer Bearing Rubber sleeve Screw M5 x16 Shim Driver shaft Straw baﬄe Aluminum tube Circlip 32 Cover plate Guard plate Screw M5 x12 Ball bearing 6201-2R Bracket...
Page 29 PRORUN regularly improves our products, and you may ﬁnd slight diﬀerences between your machine and the descriptions contained within this operator's manual. Modiﬁcations can be made to the machine without notice and without the obligation to update the manual, providing that the essential safety and functional characteristics remain unaltered.
