Summary of Contents for EKF HMI PRO-Screen

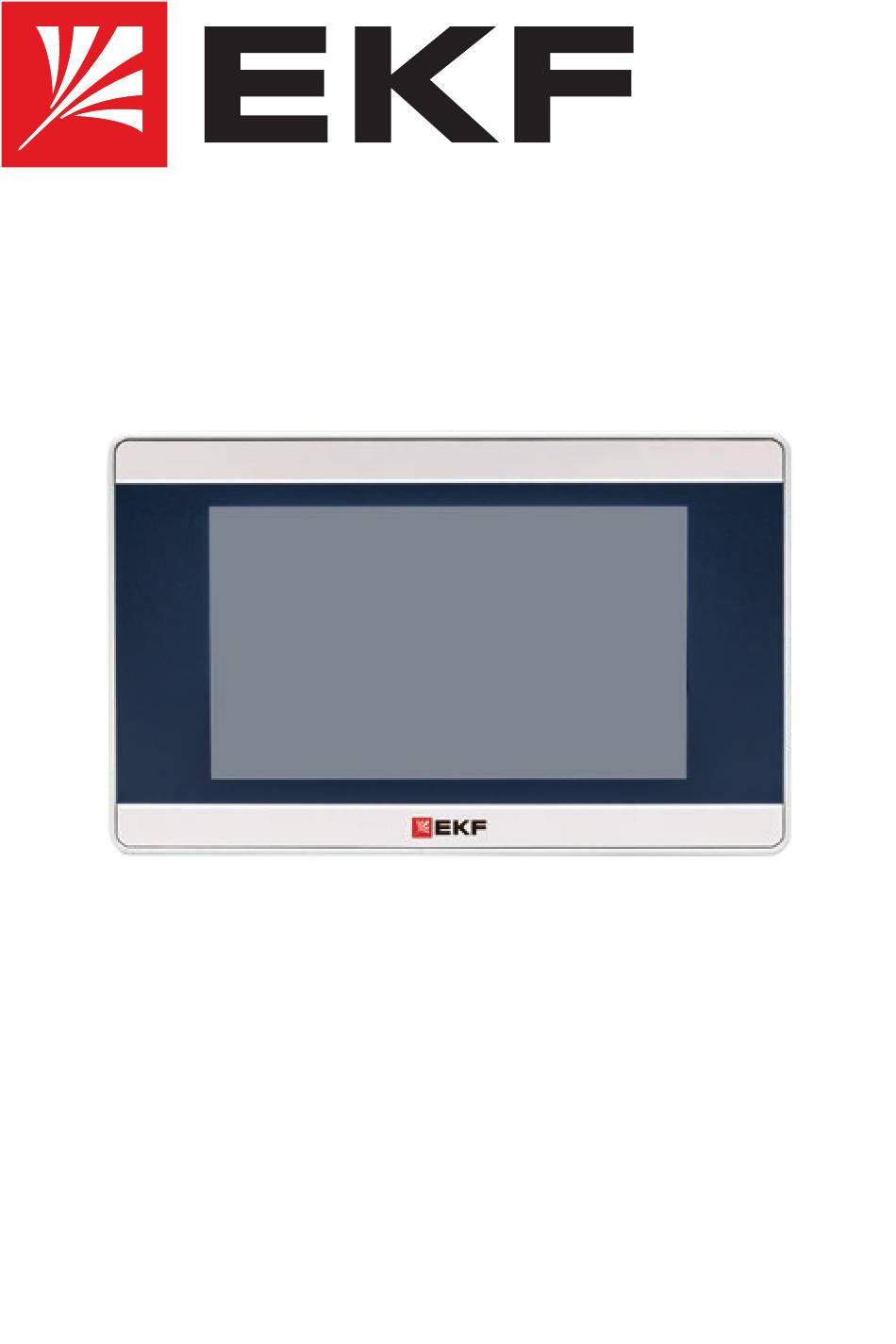

- Page 1 TECHNICAL MANUAL HMI PRO-Screen...
-
Page 2: Description And Application
1 DESCRIPTION AND APPLICATION The HMI PRO-Screen is a human machine interface device used to create monitoring systems and control technological processes. The device settings and programming shall be made with the PRO-Screen master software. The HMI PRO-Screen fits all industry applications based on the work of programmable logic controllers, automation control systems and industrial automation. - Page 3 Table 1 continued Value Parameter RSC-4 RSC-7 RSC-7E RSC-10E RSC-15E Connectors and interfaces COM1/ COM1: COM3: RS232/ RS232/ COM1/COM3: RS485/ RS485/ RS232/RS485/RS422 COM-ports RS422 RS422 COM2: RS485 COM3: COM2: RS232 RS485/ RS422 Ethernet 10M/100M Ethernet Modbus RTU Modbus RTU (Master/Slave), (Master/Slave), Supported protocols Modbus ASCII (Master),...
- Page 4 Table 1 continued Value Parameter RSC-4 RSC-7 RSC-7E RSC-10E RSC-15E Operating humidity 10…90 % (no condensation) Storage temperature –20…+60 °C Alumin- Housing material ABS+PC Weight 0,3 kg 0,56 kg 0,92 kg 2,25 kg 3 TYPE CODE RSC – X1 X2 X1 - screen diagonal: 4 - 4.3 inches;...
-
Page 5: Overall Dimensions
4 OVERALL DIMENSIONS 31,5±0,5 138±0,5 Fig. 1- RSC-4 Overall dimensions 190.8±0.3 203.9±0.3 33.8±0.3 Fig. 2 - RSC-7 and RSC-7E Overall dimensions... - Page 6 258.9±0.3 273±0.3 36±0.3 136.5 7.3±0.3 Fig. 4a - RSC-10E Overall dimensions 378,5 35,6±0,3 394±0,3 344,2 Fig. 4a - RSC-15E Overall dimensions...
-
Page 7: Installation
Fig. 4b - VESA Installation dimensions for RSC-15E 5 INSTALLATION The HMI is designed to be installed in the enclosure. It can be installed at any tilting angle for user comfort. Protect the back panel of the device from moisture and dirt. The front panel is protected by a rubber seal. - Page 8 Fig.6 - Bracket mount 6 CONNECTION Power supply The HMI shall be powered from distributed power mains with 24 V DC rated voltage or from a local power supply of suitable capacity. When powered from a distributed network, install a surge protector in front of the HMI.
- Page 9 Com1/Com3 USB Host Ethernet Power Com2 USB Slave Table 2 - RSC-4, RSC-7, RSC-7E, RSC-10E Power and Interface Connectors Description Power supply (left to right) Pin1 Pin2 Pin3 DC24V COM port DB9 (COM1/COM3) Pin1 Rx-(B) Pin 1 Pin 5 Pin 1 Pin 5 Pin 1 Pin 5...
-
Page 10: Delivery Scope
Table 3 - RSC-15E interface and power connector description Power supply (left to right) Pin1 DC24V Pin2 Pin3 COM port DB9 (COM1/COM3) Pin1 Rx-(B) Pin 1 Pin 5 Pin2 RxD (COM1 RS232) Pin 1 Pin 5 Pin3 TxD (COM1 RS232) Pin4 Pin 1 Pin 5... -
Page 11: Safety Requirements
Service life: 10 years. Manufacturer: For information, refer to the product package. Importer and EKF trademark service representative: EKF ELECTRICAL SOLUTION – FZCO, Dubai Silicon Oasis, DDP, Building A2, Dubai, United Arab Emirates. Importer and EKF trademark service representative on the territory of the Russian Federation: OOO «Electroresheniya», Otradnaya st., 2b bld. -
Page 12: Certificate Of Acceptance
12 CERTIFICATE OF ACCEPTANCE The HMI PRO-Screen has been approved for operation. Quality control stamp Date of manufacture «___»______________ 20___г. 13 NOTE OF SALE Date of sale «___»______________ 20___г. Seller’s signature Seller’s stamp www.ekfgroup.com...
