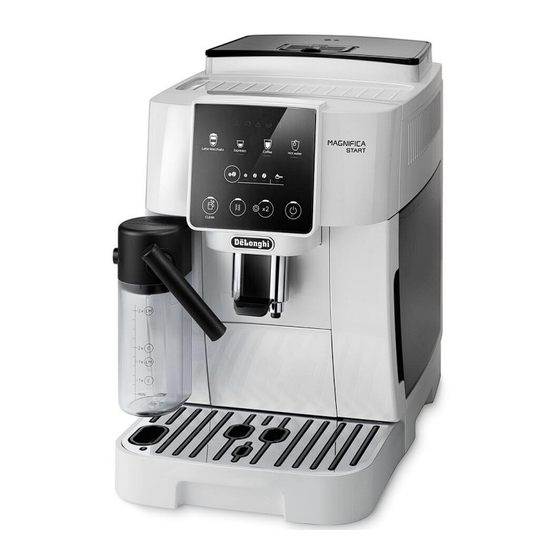

- Page 1 Doc. Nr.: DSDL_24011_B Data Sheet and Service Manual ECAM2208X MAGNIFICA START Date: 08.05.2024...
-
Page 2: Table Of Contents
Doc. Nr.: DSDL_24011_B 1 Summary TECHNICAL DATA ..........................3 HYDRAULIC DIAGRAM ........................4 WIRING DIAGRAM ..........................5 Practical Outline ..........................5 Theoretical Outline ......................... 6 WORKING PRINCIPLE ......................... 7 MICROSWITCHES, SENSORS AND SOLENOID VALVES ............7 TEST MODE ............................8 LOAD TEST MODE ........................ -
Page 3: Technical Data
Doc. Nr.: DSDL_24011_B 2 TECHNICAL DATA GENERAL INFO Voltage – Frequency – Input Power 120 V – 60 Hz – 1250 W ≈ Stand-by Button OFF 0.25 Wh COMPONENTS 120 V AC – 52 W – 15 bar Pump Solenoid valve (EV1) 120 V AC Grinder motor 120 V AC... -
Page 4: Hydraulic Diagram
Doc. Nr.: DSDL_24011_B 3 HYDRAULIC DIAGRAM... -
Page 5: Wiring Diagram
Doc. Nr.: DSDL_24011_B 4 WIRING DIAGRAM 4.1 Practical Outline... -
Page 6: Theoretical Outline
Doc. Nr.: DSDL_24011_B 4.2 Theoretical Outline... -
Page 7: Working Principle
Doc. Nr.: DSDL_24011_B 5 WORKING PRINCIPLE 5.1 MICROSWITCHES, SENSORS AND SOLENOID VALVES MICROSWITCHES Function Logic “NC”, it opens when the infuser is in top Detects when the infuser is on top M1 = UPPER MICROSWITCH position position “NO”, it closes when the infuser is in Detects when the infuser is on down M2 = LOWER MICROSWITCH position... -
Page 8: Test Mode
Doc. Nr.: DSDL_24011_B 6 TEST MODE To activate the test mode proceed as follows: 1. The appliance must be plugged-in and in stand-by mode. 2. Remove the drip tray. 3. When the request to insert the drip tray prompts on the display, press and hold until the drip tray alarm goes off. -
Page 9: Display Test Mode
Doc. Nr.: DSDL_24011_B 6.2 DISPLAY TEST MODE After having accessed the test mode as indicated, press access the DISPLAY TEST MODE: During the display test mode all the LEDs are light up. When a button is pressed, only the LED of that button remains ON, while all the other buttons will be turned OFF. -
Page 10: Reset Encoder
Doc. Nr.: DSDL_24011_B 6.3 RESET ENCODER After having accessed the test mode as indicated, press start the RESET ENCODER: LED legend: blinking: reset in progress steady ON: reset done [10]... -
Page 11: Statistics Mode
Doc. Nr.: DSDL_24011_B 7 STATISTICS MODE The appliance allows the reading of the statistics data to understand exactly how the machine operated along the time. To access the STATISTICS MODE: make sure the appliance is ready to use (i.e. in ready-for- coffee mode) ... - Page 12 Doc. Nr.: DSDL_24011_B Example: To display a total amount of 104 coffee beverages, the appliance will display: 1. the LEDS flash to advice which icons will be involved on the count 2. the LED flashes once 3. the machine emits a long beep to advice that the second value is 0 4.
-
Page 13: Heating Elements Resistance Check
Doc. Nr.: DSDL_24011_B 8 A. HEATING ELEMENTS RESISTANCE CHECK Thermoblock resistance value: ≈ 35 Ohms. Resistance/temperature characteristics for the thermoblock NTC: [13]... -
Page 14: Coffee Temperature Test
Doc. Nr.: DSDL_24011_B 9 COFFEE TEMPERATURE TEST Complaints from end users about coffee temperature are quite frequent. They are mainly due to incorrect appliance adjustments or to an incorrect expectation by the customer. A coffee temperature measurement is required all the times any of these complaints are encountered. To perform the coffee temperature test, follow in sequence the below steps: 1. -
Page 15: Frothed Milk Consistency And Temperature Test
Doc. Nr.: DSDL_24011_B 10 FROTHED MILK CONSISTENCY AND TEMPERATURE TEST A frothed hot milk consistency and temperature test can be required whenever the Serviceman is getting complaints from the end user about the quality or the temperature of the hot milk beverages. To perform the frothed hot milk consistency and temperature test, follow in sequence the below steps: 1.
