Specified Technologies EZ-Path 33 Series Installation Instructions

Optional Ground Attachment

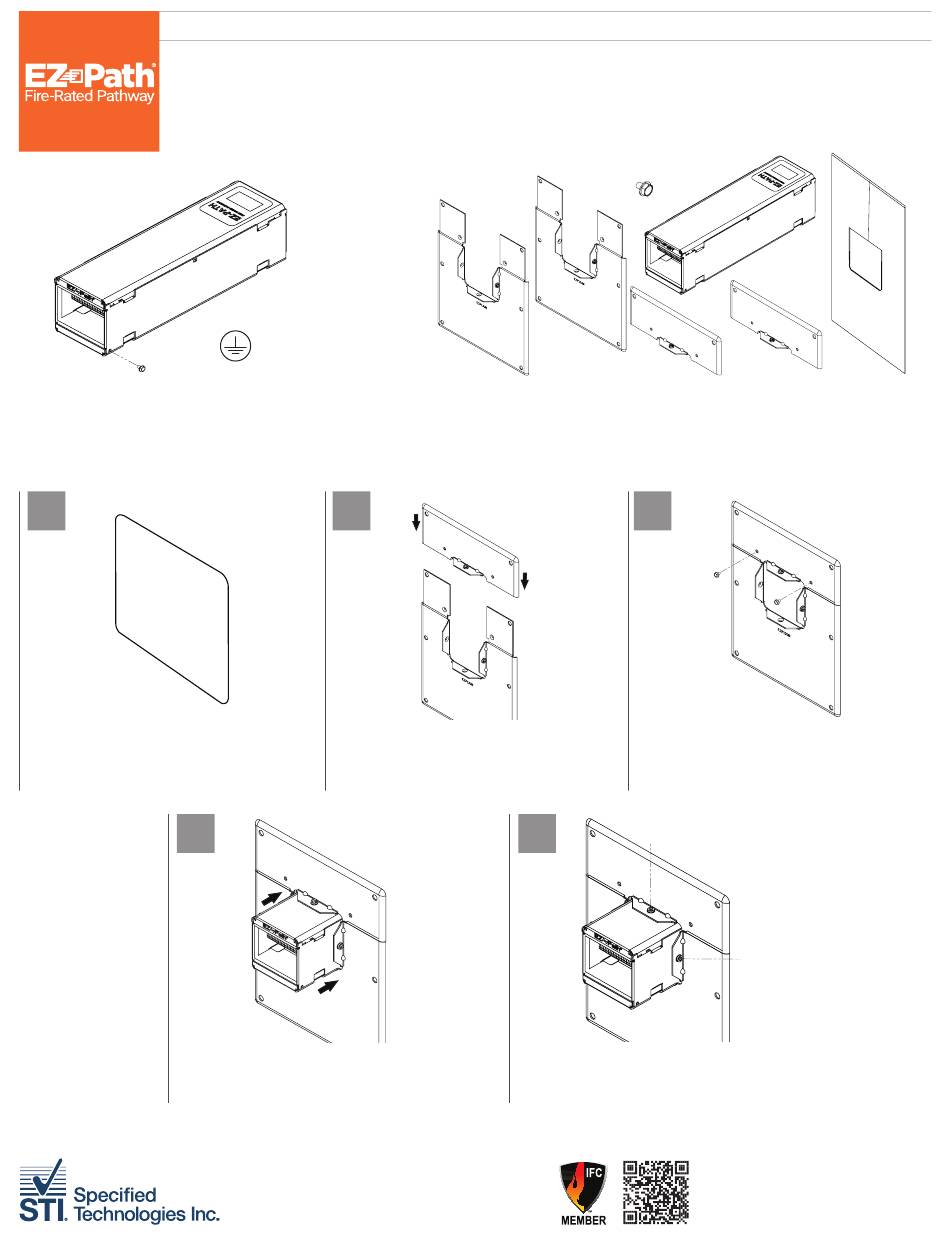

Option 1 – New Work Installations
1
Cut max 6" (152 mm) by 8" (203 mm)
opening in wall.
4
Note: For more information on firestop installation, refer to ASTM E3157.
I N S T A L L A T I O N
Series 33 Single Split Wall Plate for Retro-Fit Applications
2
Assemble wall plates and
gasket over opening
Slide pathway into opening
in wall plate and gasket
Specified Technologies Inc.
Somerville, NJ 08876 USA
T: (800) 992-1180
F: (908) 526-9623
www.stifirestop.com
I N S T R U C T I O N S
(Part Numbers: EZP133R & EZDP33WR)
Parts Included (Not to Scale)
Devices not included in Part No. EZP133R
3
Use (2) #8-32 x 1/4" screws to
secure plate sections together
5
Secure plate to pathway on both sides of
wall by tightening hex head screws
Page 1 of 2
