Summary of Contents for Huaxin Classic Series

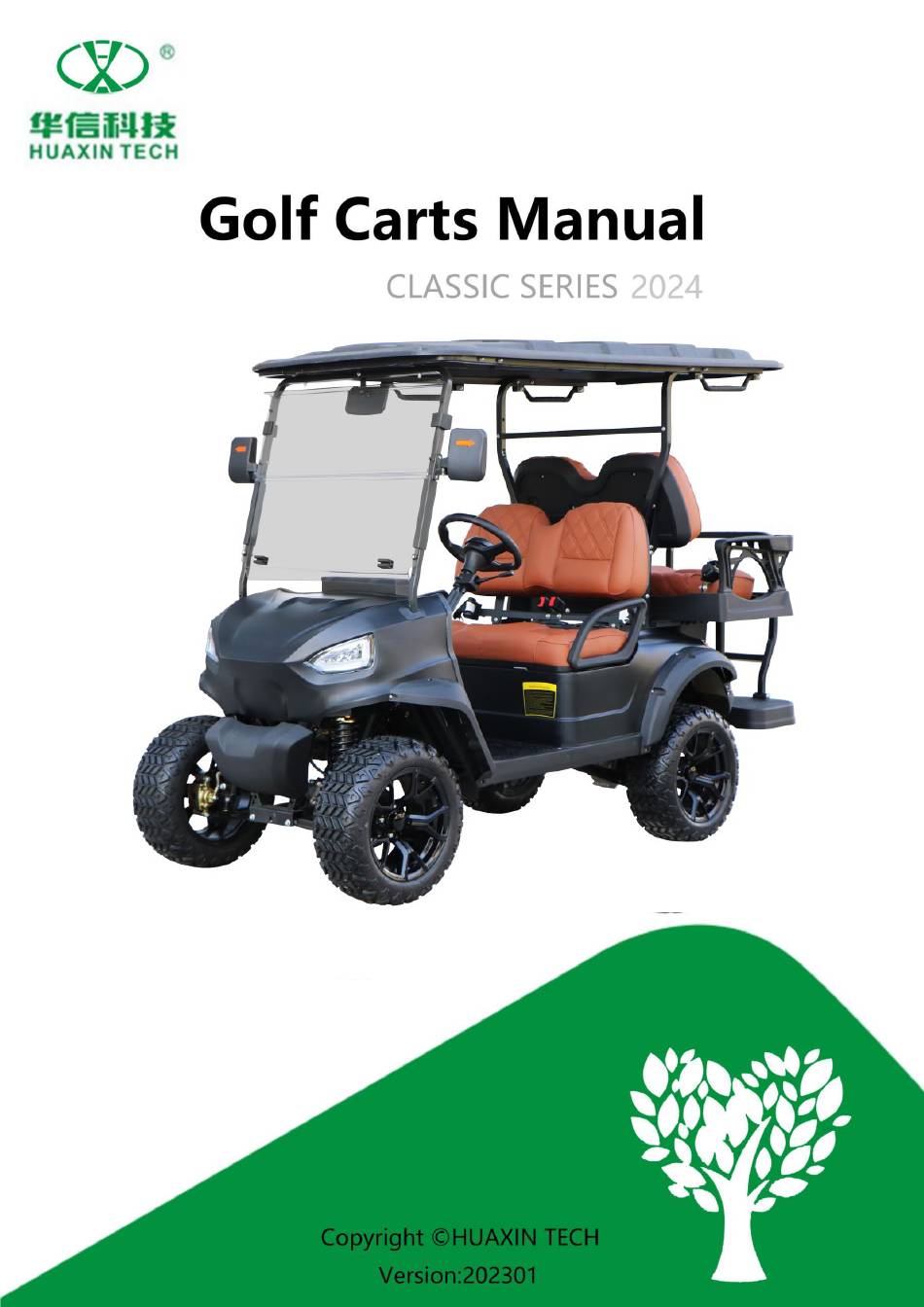

Page 1 第 1 页共 40...
Page 2 Anhui Huaxin Electric Technology Co., Ltd PREFACE Dear Customer, Thank you for choosing our company's electric golf cart. Please note that this User's Manual is an essential component of the golf cart and must be delivered to the customer upon purchase.
Page 3: Table Of Contents
CATALOGUE Precaution（Must-Read） ....5 II. Safety of Passengers ....9 III. Operation and Control of the Equipment ... 11 IV. Driving Essentials ..... 29 Common Troubleshooting & Maintenance . 32 Attachment ......35...
Page 4: Description Of The Manual
Anhui Huaxin Electric Technology Co., Ltd Description of The Manual  Signal words (DANGER, WARNING, CAUTION and NOTICE) and safety messages are included in this manual and on the safety decals on the golf cart, so please read, understand and follow the instructions, safety precautions and safety decals before driving.
Page 5: Precaution（Must-Read
1.Upon receiving the golf cart, turn on the green main power switch (lithium battery). This switch is responsible for powering the entire cart and must be turned on during charging. I.Precaution（Must-Read)
Page 6 Anhui Huaxin Electric Technology Co., Ltd 2.To avoid over-discharging the power battery, which is safer, remember to switch off the green mains if you don't use it for a long time. 3.To prevent damage to the battery caused by power loss, it is...
Page 7 6.The power meter is accurate when driving at low speeds on a flat road. Stopping may show a false charge, which is not accurate.If the lithium voltage falls below 10% or the lead-acid voltage falls below 42V, the power of the ball car will weaken and it may not be able to climb slopes.
Page 8 Anhui Huaxin Electric Technology Co., Ltd Our golf carts are equipped with AC electric control systems that have high voltage circuits in certain areas of the chassis. It is strictly prohibited for ordinary users to overhaul the chassis circuits. To...
Page 9 We strictly prohibit any unauthorized modifications or additions to our golf carts, especially to the electrical, braking, steering, and other safety-related systems. We will not be held liable for any direct or indirect damages resulting from such modifications.
Page 10: Safety Of Passengers
Anhui Huaxin Electric Technology Co., Ltd Safety of Passengers Adjustment of Parts Pre-driving...
Page 11 Safety for Pregnant Women and Children This is an open golf cart. Children must be accompanied by an adult. Close attention should be paid to children's safety while the golf cart is in motion to prevent them from causing any disturbance. To avoid accidents when braking sharply, never allow two children to sit in the same seat.
Page 12: Operation And Control Of The Equipment
Anhui Huaxin Electric Technology Co., Ltd III.Operation and Control of the Equipment 1.Lighting Controls The light control switch is a black handle located on the left side of the combination switch, with the logo printed on it. The light can be turned on and off using a toggle lever.
Page 13 2. Switch Panels Operation via toggle switch——Type A The golf cart switch gear is under the dash and is turned on by a key. ON：After screwing the gear to the ON position, wait for the 'click' sound, which indicates that the motor controller has started and the cart can now be driven.
Page 14 Anhui Huaxin Electric Technology Co., Ltd The headlight switch is located to the right of the key switch. The low beam and high beam will only work when the headlights are switched on. The cue light will still work. Gear Switch D——Forward...
Page 15 Key switch panel set directly below the dashboard screen Operation via toggle switch——Type B The golf cart switch gear is under the dash and is turned on by a key. ON：After screwing the gear to the ON position, wait for the 'click' sound, which indicates that the motor controller has started and the cart can now be driven.
Page 16 Anhui Huaxin Electric Technology Co., Ltd Gear Switch D——Forward N——Neutral R——Reverse The reverse buzzer sounds when in reverse gear. Pressing the hazard warning light switch activates all turn signals on the vehicle. The golf cart can use this feature to signal danger, attract...
Page 17 3.LCD Multimedia Screen Logo icon Back Sleep Volume plus Home Button Volume minus...
Page 18 Anhui Huaxin Electric Technology Co., Ltd 4. Battery Lithium Battery Lead Acid Battery 4.1 Battery Charge Promptly charge the golf cart's battery when it runs out. Use a charger that complies with the relevant battery charging conditions of our company.
Page 19 4.4 Lead Acid Battery Wiring （Red is positive, black is negative） 4.5 Battery Maintenance and Precautions 1)Please check the battery outer frame packaging upon receiving the cart. If it is deformed or broken, it may cause damage to the cart. 2)Please avoid arbitrary machine work on the circuit boards as it may damage the internal circuits and cause malfunctions.
Page 20 Anhui Huaxin Electric Technology Co., Ltd 5. Charger 5.1 Introduction The golf cart uses a domestic intelligent charger that is specifically designed for carts. The charger's high-voltage DC output is directly connected to the power battery's positive and negative poles, while the AC input is connected to the vehicle's charging port socket.The charger has a...
Page 21 5.2 Wiring Harness Requirements Core Wire Harness Handling 2.5mm Trident Plug AC Input 4-8 terminals (with positive and 25A：6mm DC Output negative battery terminals) Output Over-voltage The charger will cut off the output relay and sound an alarm if the output voltage Protection exceeds the protection setting value.
Page 22 Anhui Huaxin Electric Technology Co., Ltd Reverse Battery No output from the charger when the batteries are connected backwards. Protection 5.3 Protective Features 5.4 Indicator Status Battery Indicator Repair of severely under-voltage batteries Normal charging, battery capacity < Battery capacity is >80%...
Page 23 NOTE‘ Indicates that the indicator light is on for one second ’ ， Indicates that the indicator light is off for one second. ‘ ’ 5.6 Technical Parameters Nominal Input Input Power Efficiency Main Output Charge Output Voltage Current Factor Maximum Output Cutoff Current...
Page 24 Anhui Huaxin Electric Technology Co., Ltd 6. Pedal 6.1 Brake Pedal Depress the brake pedal to apply the brakes on all four wheels. It is normal for the brakes to occasionally rattle in cold, wet, and icy weather conditions. Release the pedal to release the brakes. However, if the noise is excessive and occurs every time the brakes are applied, have them inspected.
Page 25 7.1 Instructions for Tire Use Maintain normal tire pressure. Incorrect air pressure can cause abnormal tire wear, leading to a shorter tire lifespan. Adjust tire pressure appropriately for both winter and summer weather variations. 2) Avoid starting abruptly and accelerating suddenly. This is because the friction between the tires and the ground is what allows the cart to move, and sudden starts can increase this friction and cause the tires to wear out more quickly.
Page 26 Anhui Huaxin Electric Technology Co., Ltd 8.Steering Wheels Role: Maneuvering the direction of travel of the car, controlling the steering wheel of the car to make the cart go straight or turn. How to operate： When driving on a straight and level road, balance the movements of both hands.
Page 27 9.Oil Bottle The reservoir holds the brake fluid, which transmits the braking pressure in the hydraulic system. Liquids cannot be compressed, so the pressure from the master cylinder is transmitted directly to the brake pump through the brake fluid. 1）It lubricates the moving parts of the brake system and extends the life of brake pumps and bowls.
Page 28 Anhui Huaxin Electric Technology Co., Ltd a.Fuel filler b.Fuel outlet How to add： 1, At the bottom of the rear axle gear box is equipped with an oil drain screw plug, block the oil outlet, unscrew the screw plug and drain the old gear oil.
Page 29 Adjustment Nut The brake pump is a crucial component of the braking system. Its primary function is to move the brake pads. When the brakes are applied, the brake pump generates force, which pushes the brake fluid into the brake pads. The brake pads then create friction with the brake drums, causing the car to slow down and eventually stop.
Page 30 Anhui Huaxin Electric Technology Co., Ltd Adjustment of braking system 1,Before adjusting the brakes, press your foot on the brake pedal several times and let it adjust the brakes on its own. 2,Remove cover and brake pedal. 3,Use your hand (light pressure) on the foot pedal and count the distance until you feel the boost.
Page 32: Driving Essentials
Anhui Huaxin Electric Technology Co., Ltd IV.Driving Essentials 1. Pre-driving check Check the seats Golf Cart and headrests Make sure the front glass, Check the brake mirrors, lights, pedal reflectors, etc. are clean Check tire Adjusting the pressure Reversing Mirror...
Page 33 increases with the speed of the car before braking. 3.2If the cart is driven in a water area or washed, water will enter the brake hub, which may lead to a decrease in braking performance. If this occurs, gently and repeatedly press the brake pedal at low speeds to dry the brakes.
Page 34 Anhui Huaxin Electric Technology Co., Ltd The greater the load of the vehicle, the more power Keep the total weight it consumes, and it should be minimized by not of the cart the lightest loading unnecessary baggage and goods. Insufficient air pressure in tires will increase...
Page 35: Common Troubleshooting & Maintenance
V.Common Troubleshooting & Maintenance Common Troubleshooting & Maintenance Troubleshooting and Troubleshooting and Type Reasons Type Reasons Resolution Resolution Poor braking performance No power to electrical Charging Excessive clearance between equipment Turn on the main power Adjustment of clearance brake disc/drum and Power is running out switch Replacement of brake...
Page 36: Service Standards
Anhui Huaxin Electric Technology Co., Ltd Adjusting the nut Inflexible steering Replacement of bearings No overloading and no Damaged bearings Overloading of motors Grease Others forced climbing No grease Replenish to proper air Insufficient tire pressure pressure Warning： 1.When abnormalities or malfunctions occur while the vehicle is in motion, it must be safely parked on the side of the road and be properly warned before overhauling (do not blindly dismantle or repair the vehicle).
Page 37 2. Exclusion of Warranty Coverage Exceeded warranty period. Consumers who fail to properly use or maintain the product as specified in the Use and Maintenance Instructions or who cause damage due to improper storage. Not responsible for damage caused by the repairer's own disassembly and repair.
Page 38: Vi. Attachment
Anhui Huaxin Electric Technology Co., Ltd VI. Attachment Maintenance Records Name： Address： Defective Phenomenon Reasons for Failure Repair Contents Client Signature： Signature of maintenance staff： Name： Address： Defective Phenomenon Reasons for Failure Repair Contents Client Signature： Signature of maintenance staff：...
Page 39 Client Signature： Signature of maintenance staff：...
Page 40 Anhui Huaxin Electric Technology Co., Ltd ANHUI HUAXIN ELECTRIC TECHNOLOGY CO. Address:No.023 Meichong Lake Road,Shangfeng Economic Development Zone,Hefei City,Anhui Province,China. Sales And Service Hotline:+86 551 66338328 After-Sales Service Hotline:+89 177 5604 1573 E-mail:sales@hfhxdd.com...
