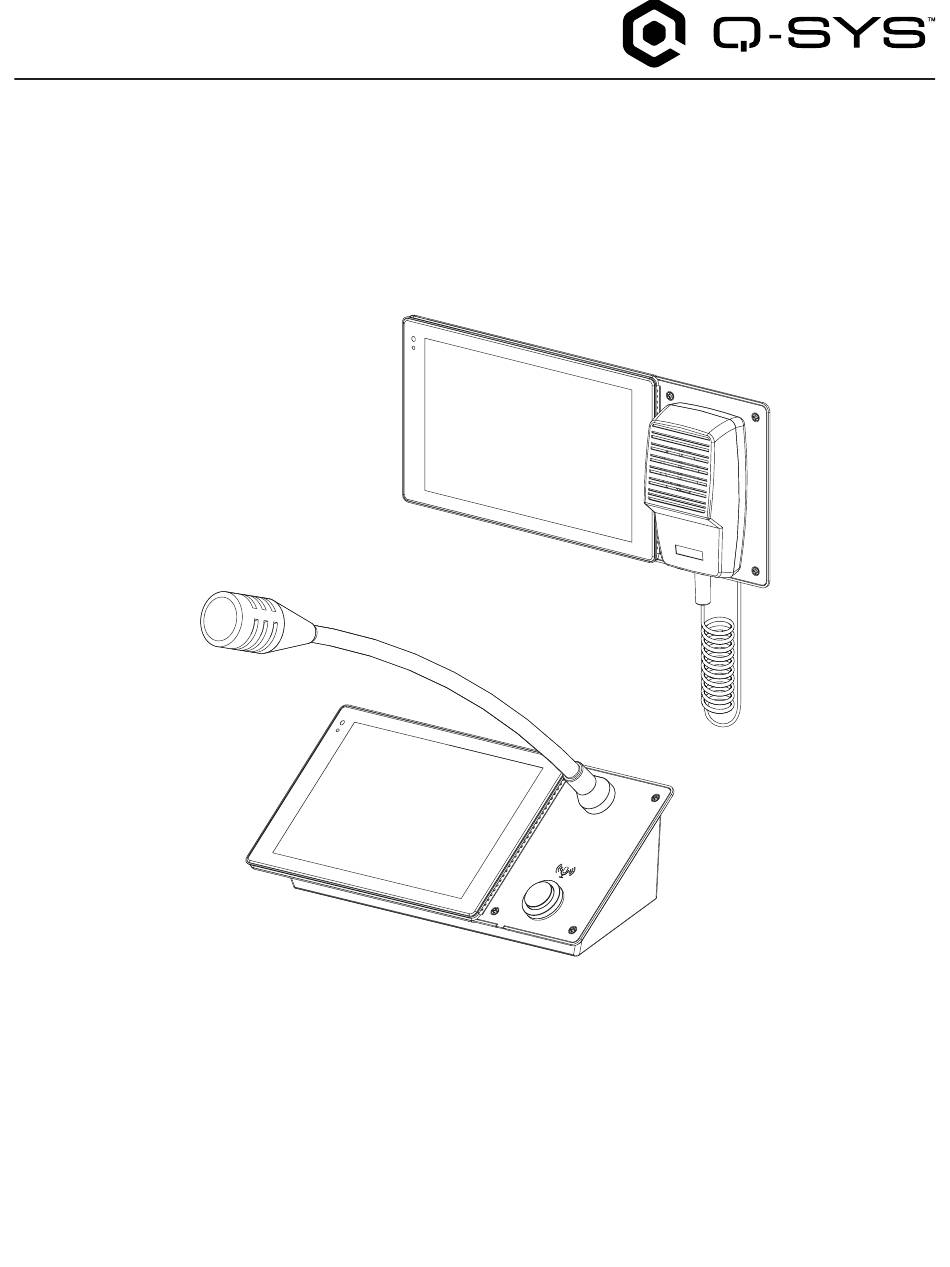

- Page 1 Hardware User Manual PS-TSCG3 Series Networked Page Stations PS-TSCG3-H (Handheld) PS-TSCG3-G (Gooseneck) WA-001006-01-A *WA-001006-01*...
-
Page 2: Important Safety Instructions
QSC International Distributor. QSC is not responsible for any injury, harm or related damages arising from any failure of the customer, owner or user of the apparatus to facilitate those repairs. WARNING!: PS-TSCG3 Series products are designed for indoor installation only. Environmental •... -
Page 3: Environmental Compliance
FCC Statement Q-SYS PS-TSCG3 Series products have been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 4: What's In The Box
What's in the Box PS-TSCG3-G (Gooseneck) (1x) PS-TSCG3-G (1x) PS-DB Paging Station Kit Desktop Base (4x) 6-32 Screws (1x) Screwdriver (1x) Warranty (1x) Safety Information TD-000453 TD-001707 (1x) Quick Start Guide TD-001708 PS-TSCG3-H (Handheld) (1x) PS-TSCG3-H (1x) Screwdriver Paging Station Kit (1x) Warranty (1x) Safety Information TD-000453... -
Page 5: Specifications
The TSC-70-G3 touchscreen installs easily into both variants of the paging station kit, connecting to the microphone and push-to-talk button via the included USB-C connection. A network connection to the Q-SYS network allows the touchscreen to transmit the paging audio to the core for further processing, and powers the entire solution using Power over Ethernet (PoE). The TSC-70-G3 touchscreen... -
Page 6: Installation
Installation PS-TSCG3-G (Gooseneck) Mount the Page Station Bracket to the Desktop Base. (See Figure 3) 2. Make proper connections. Route ethernet cable through mouse hole in the back of the Page Station Bracket. Ensure the flag on the USB-C cable is oriented as shown. (See Figure 4) 3. - Page 7 4. Fully press the TSC into the Page Station Bracket. (See Figure 1 1) IMPORTANT! Avoid pinching cables when pressing TSC into the Page Station Bracket 5. Remove protective plastic film from the Q-SYS logo on the Page Station Bracket. (See Figure 1 1) TSC Mounting...
- Page 8 Replacing the PS-HH Handheld Microphone NOTE: You do not have to remove the Page Station from the wall in order to replace the Handheld Microphone. Carefully pull the TSC out so that the inner bracket locks into its outward position and unscrew the four (4) screws that hold the faceplate onto the Page Station Bracket.
-
