Summary of Contents for Exclusiva BlueStar BSW950

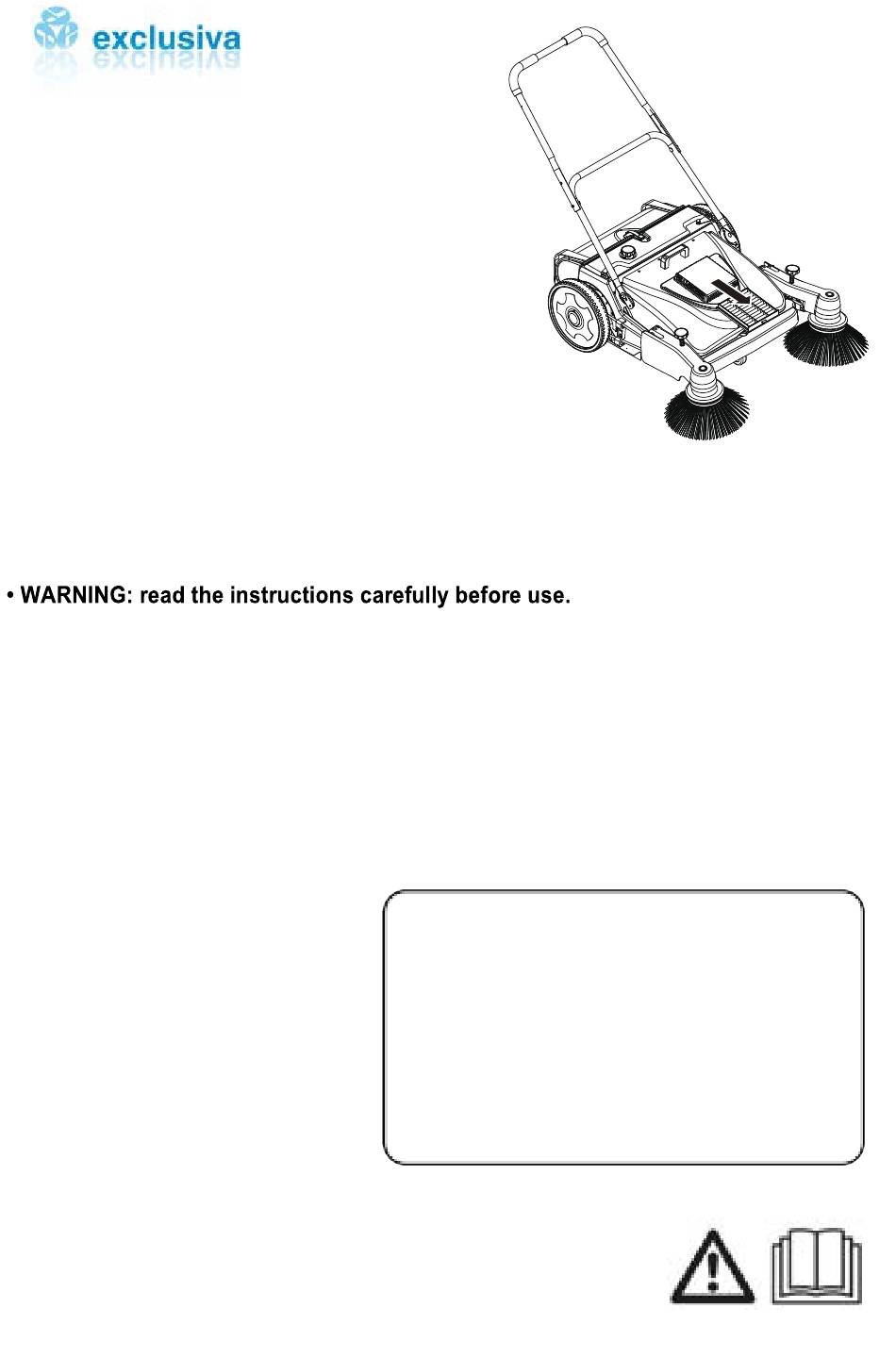

- Page 1 Manual sweeper BlueStar BSW950...
-
Page 2: Specification
English SPECIFICATION Working width 950mm Bin Capacity Maximum Theoretical Area Performance 3800㎡/h Net weight 25kg Packing size 880x800x390 mm STANDARD PRODUCTS AND SPARE PARTS IN THE BOX Sweeper body Handle and bolts Side brush and screws... - Page 3 New machine assembly � � � � � STEP 1 Install arm Remove the bin and cut the cable tie. Lift the arm and align the holes, insert the tube and block both sides. Note: When you take off the arm, don’t remove the belt or rotate the arm. It may cause the belt to turn wrong.
- Page 4 New machine assembly � � � � STEP 2 Return driving belt Make the belt into the example 1 and put down the arm. And make the belt into the example 3.Then push the manual sweeper and make sure the rotation direction of the turntable is same as the label.
- Page 5 New machine assembly STEP 3 Handle assembly Install the bin and lock it.Then install the handle. left right right left STEP 4 Side brush installation According to the label on the front brush to distinguish the left and right side brush. Three screws to set up each side brush.
- Page 6 New machine assembly Main brush height turning knob Lower the brush: counterclockwise rotate the knob Raise the brush: clockwise rotate the knob Side brush height turning knob Lower the brush: counterclockwise rotate the knob Raise the brush: clockwise rotate the knob...
- Page 7 Usage and Maintenance ● The cleaning surface should be competitive flat and height difference≦2.5cm. Walking the step in the opposite direction≦19cm. ● Adjust the height of handle for need. ● Adjust the angle of handle for need. ● Open metal button then pull back to unload back bin. ●...
- Page 8 Usage and Maintenance ● Crashing bin is forbidden. ● Install the ground lip on the back of main brush. ● Set up the ground lip of both sides of main brush. ● Install bin seal baffle.
-
Page 9: Usage And Maintenance
Usage and Maintenance ● Main brush unload installing. ● Clean filter in time. The sponge filter can be washed with water, dried and used. ● To clean the top filter, please use a brush to clean it, do not flush with water. - Page 10 STORAGE loosen the turning knob...
- Page 11 STORAGE Flat the handle and tighten the turning knob Hold the front of the machine frame and lift the sweeper...
-
Page 12: Explosion Drawing
Explosion Drawing... - Page 13 Name Name Handle Nut M8 Turning knob Pressing plate Body frame Washer 8 Rear bin Arm Plug Sliding handle parts Metal sleeve plug Saucer-head Screw Mx45 Left side brush arm components Sleeve Sponge filter Screw ST5.5X22 Screw St3.5x13 Armrest plate Belt guide plate Saucer-head Screw M8x25 Spring...
- Page 14 Distributeur: www.exclusiva.nl Dynamostraat 11 1014 BN Amsterdam 7.100.2374-00...
