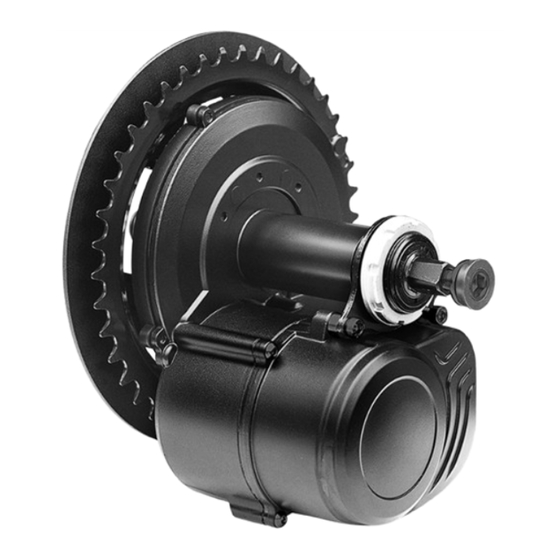

- Page 1 Product Manual——Mid-Drive Conversion Motor TSDZ2B Suzhou Tongsheng Electric Appliances Co., Ltd www.tongsheng-e.com Doc No.：TSE-PM-MM-TSDZB-A-00 (EN) Thank you for choosing Tongsheng products. When using or modifying parameters, please make sure to comply with the local laws and regulations.
-
Page 2: Table Of Contents
Manual of Mid-drive Conversion Motor——TSDZ2B Document No.：TSE-PM-MM-TSDZ2B-A-00 Contents General Introduction ..........................3 1.1 Safety ................................3 1.2 Application ..............................3 1.3 Scope of Application ............................3 1.4 Product Features ............................4 Parameter .............................4 2.1 Appearance ..............................4 2.2 Specification ..............................4 2.3 Mechanical composition .......................... -
Page 3: General Introduction
TSDZ2B bike——ebike. TSDZ2B is suitable for bikes with bottom bracket (BB) length of 68mm or 73mm. Note: Before buying the motor, the measuring tool can determine if your bicycle size is available to install the TSDZ8 motor. -
Page 4: Product Features
49.5/55mm Certification CE/EN15194/ROHS Light Drive Capacity 6V/3W Except for the TSDZ2B standard, there’re some options as below: Option-1： Rated Power： 350W Option-2： Rated Voltage： （Please consult the sales staff for more details of the options） Suzhou Tongsheng Electric Appliances Co., Ltd... -
Page 5: Mechanical Composition
Manual of Mid-drive Conversion Motor——TSDZ2B Document No.：TSE-PM-MM-TSDZ2B-A-00 Mechanical composition Spider Center shaft Clutch Gear Fixing Plate Controller Motor Core Cover of Chain whell Main Body Back Cover Chain wheel Reduction Gear Front Cover 3 Motor Parts and Installation Tools Motor Parts List ①... -
Page 6: Installation
Document No.：TSE-PM-MM-TSDZ2B-A-00 4 Installation Motor Installation Push the center shaft of TSDZ2B motor through the bottom bracket of your bike and make sure the exposed shaft length should be no less than 10mm. ≥10mm Make sure the motor flange didn’t touch the bike frame. If the motor flange touched the bike frame, 1-3pcs of washers will be needed to ensure necessary space between the motor flange and the bike frame. -
Page 7: Kits Installation And Connection
Manual of Mid-drive Conversion Motor——TSDZ2B Document No.：TSE-PM-MM-TSDZ2B-A-00 Drag the motor towards the front wheel with your hand then tighten the locking nut with locking wrench (Locking torque: 50~60N.m). The motor can’t be twisted by hands. Tighten the fixing plate screws completely with the hexagonal wrench. - Page 8 Manual of Mid-drive Conversion Motor——TSDZ2B Document No.：TSE-PM-MM-TSDZ2B-A-00 4.2.1 Speed Sensor Installation spoke of back wheel and align it with the triangle “△”on the sensor. Finally, adjust the distance Fix the speed sensor at the chain stay with ribbon. Then assemble the magnetic button on the between the sensor and magnetic button to 10~15mm.
-
Page 9: Maintenance Video Of The Motor Parts
Manual of Mid-drive Conversion Motor——TSDZ2B Document No.：TSE-PM-MM-TSDZ2B-A-00 4.2.3 Connection 1） Wiring of the motor and display 2） Wiring of the motor and speed sensor 3） Wiring of the motor and battery 5 Maintenance Video of The Motor Parts Clutch Gear Replacement... -
Page 10: Packing
Manual of Mid-drive Conversion Motor——TSDZ2B Document No.：TSE-PM-MM-TSDZ2B-A-00 6 Packing Standard Packing -Without Logo(Default) 250mm This standard packing without logo will be used as default if there’s no indication for the packing in the order. Standard Packing -With Logo 250mm Please indicate “Standard Packing with Logo”...
