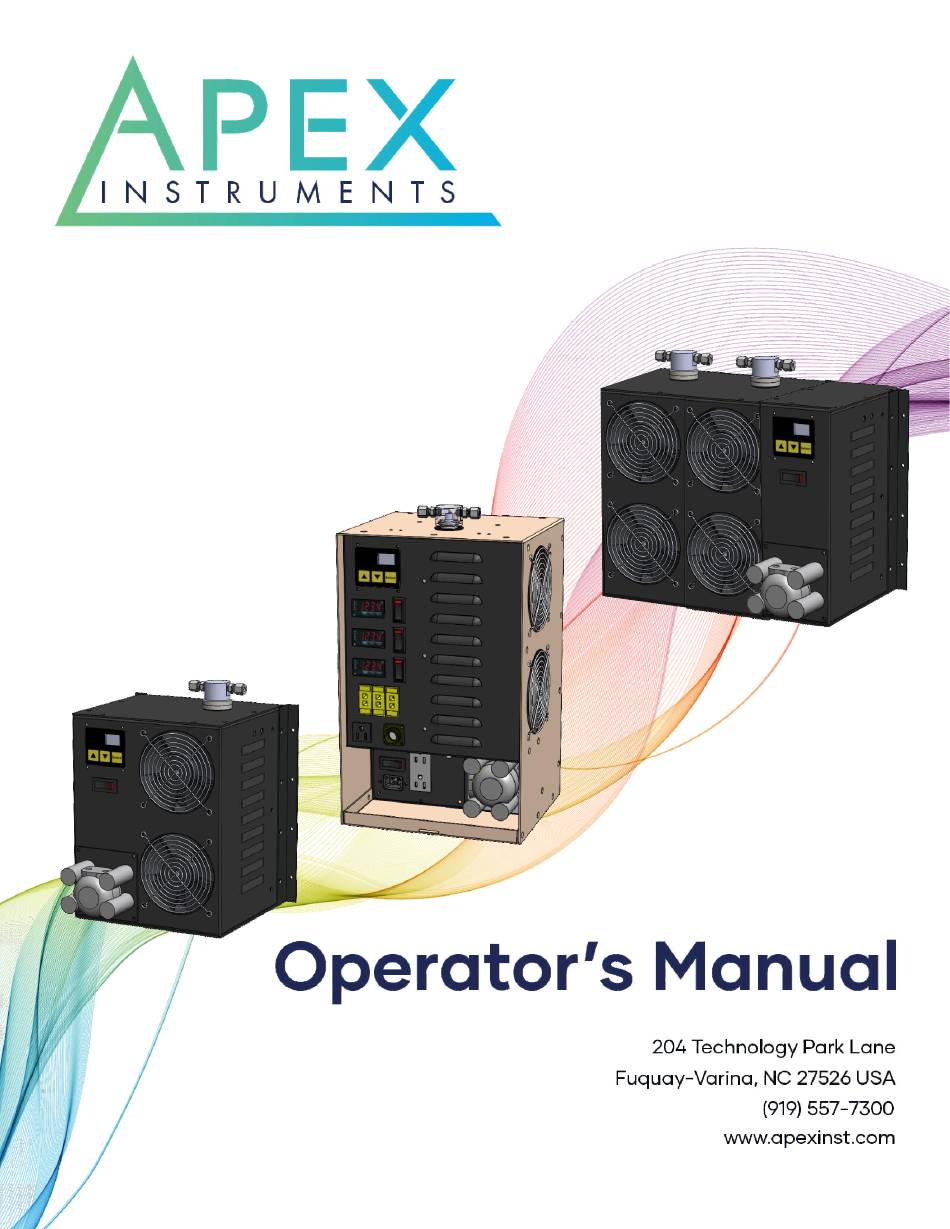

Apex Instruments TEC-1612 Operator's Manual

Gas cooler
Table of Contents

Advertisement

Quick Links

GAS COOLER
TEC-1624
TEP-1612
TEC-1612
TEC-1612
TEP-1612
TEC-1624
Rev. 9.22.2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEC-1612 and is the answer not in the manual?

Questions and answers

Summary of Contents for Apex Instruments TEC-1612

  • Page 1 GAS COOLER TEC-1624 TEP-1612 TEC-1612 TEC-1612 TEP-1612 TEC-1624 Rev. 9.22.2023...
  • Page 2 TEC-1612/TEP-1612/TEC-1624 Gas Coolers 204 Technology Park Lane Fuquay-Varina, NC 27526 www.apexinst.com (919) 557-7300 For Support or Service Contact: Technical Services Group support@apexinst.com (877) 726-3919 Apex Instruments, Inc.
  • Page 3: Disclaimer

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers...
  • Page 4: Warranty Policy

    Apex Instruments, Inc. warrants repairs to be free from defects in materials for a period of one year and workmanship for a period of 90 days from date of delivery. During the warranty period, we will repair any item Apex Instruments repaired or replaced that fails due to a defect in materials or workmanship under normal use.
  • Page 5: Table Of Contents

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers Table of Contents Disclaimer............................... Retaining Instructions........................Warranty Policy............................1.0 Preface.............................. 1.1 Product Introduction......................... 1.2 Purpose of this Manual......................1.2.1 Relevant US EPA method descriptions............... 1.3 Safety Instructions........................1.3.1 Safety information related to intended use..............1.3.2 Explanation of safety warnings...................
  • Page 6 6.0 TEP-1612 Fuji Temperature Controllers..................6.1 Settings............................ 6.1.1 Set Value (SV) Setting....................6.1.2 Thermocouple Type Setting..................7.0 Diagrams and Schematics......................7.1 TEC-1612 Electrical Diagram....................7.2 TEP-1612 Electrical Diagram....................7.3 TEC-1624 Electrical Diagram....................7.4 TEC-1612 Plumbing Diagram....................7.5 TEP-1612 Plumbing Diagram....................
  • Page 7 TEC-1612/TEP-1612/TEC-1624 Gas Coolers Reserved Apex Instruments, Inc.
  • Page 8 TEC-1612/TEP-1612/TEC-1624 Gas Coolers Figures Fig. 1 Example Sampling Syste m......................Fig. 2 TEC-1612, TEP-1612 and TEC-1624 Dimensions................ 15 Fig. 3 TEC-1612/TEC-1624 Main External Components................Fig. 4 TEP-1612 Main External Components..................Fig. 5 Minimum Free Space........................Fig. 6 User Interface..........................Fig. 7 Temperature Controller Configuration....................
  • Page 9: Preface

    Thermoelectric Gas Cooler! These units are robust, single-stage gas coolers that effectively remove condensate from the sample gas and delivering dry gas to the analyzer. The TEC-1612 is designed to be mounted on a wall or in a rack. The TEP-1612 portable model is designed to be used as a stand-alone unit or coupled with our ACC-1610 Air-Cooled Condenser.
  • Page 10: Safety Instructions

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 1.3 Safety Instructions 1.3.1 Safety information related to the intended use Source sampling is intended to be performed by technicians who have been trained in source sampling methods. Personnel conducting source sampling are expected to understand basic gas laws and chemistry.
  • Page 11: Weight

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 1.3 Safety Instructions cont. 1.3.4 Weight CAUTION Although the unit is compact and lighter than previous versions, the unit itself can present risks due to its weight. When carrying the unit, make sure to use proper form to lift using your legs. Lift and carry the unit using the provided handles or by holding the entire unit close to the body.
  • Page 12: Leak Checks

    The unit is sold with a factory calibration on the sensors and thermocouples provided with the unit. Apex Instruments suggests performing calibration checks of the sensors before and thermocouples after each testing period and performing a full calibration on the sensors and thermocouples annually.
  • Page 13: How To Transport And Store The Unit

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 1.5 How To Transport and Store the Unit 1.5.1 Dimensions See 2.4 Technical Specifications 1.5.2 TEP-1612 Lifting and handling CAUTION Avoid dropping the unit and other forms of collision during transport. When lifting, make sure to use the handle to lift.
  • Page 14: Description Of The Product

    TEP-1612 is designed to be portable and used as a stand-alone unit or coupled with our ACC-1610 Air- Cooled Condenser. The TEC-1612 and TEC-1624 are designed to be mounted on a wall or in a rack. The gas coolers contain easily removable 316 stainless steel condensers which can be treated with a variety of coatings: silicon, polyfluorinated, silane: polar or non-polar.
  • Page 15: Technical Specifications

    9.5” 10.25” 19” w/ Rails 17” w/o Rails Fig. 2 TEC-1612, TEC-1624 and TEP-1612 Dimensions • Refrigeration: Pinnacle Heat Pump System: two 80-watt solid-state thermoelectric modules • Power Supply: 120-240 VAC 10-15Amps 120V@15A 240V@10A • Temperature display: OLED display +/- 0.1 °C/°F •...
  • Page 16: Main External Components

    Air Inlet Air Inlet and Guard and Guard Peristaltic Pump Fig. 3 TEC-1612 and TEC-1624 Front, Rear and Bottom Panel Overview: Standard version shown, depiction of options may differ. TEP-1612 Condenser Entry/Exit Ambient Air Inlet OLED User Display and Guard...
  • Page 17: Unit Operation

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 3.0 Unit Operation Fig. 5 Minimum Free Space 4” Minimum of Free Space NOTICE Allow a minimum if 4 inches (10cm) of free space around unit to allow for proper air flow into and out of vents.
  • Page 18: Pre-Field Test Operations

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 3.2 Pre-Field Test Operations 3.2.1 Unit configuration Ensure that the following unit settings are configured in the lab before performing a field test: unit types and chiller block set point. To change the unit types between °C and °F, press and hold the Select button for 3 seconds. To adjust the set point, press the Up or Down buttons until the desired set point is displayed in yellow.
  • Page 19: Setting The Membrane Switch

    Fig. 8 Adjust Temperature what the reference thermometer is displaying. Display Reading 3.6 Operation using software (reserved) The TEC-1612, TEC-1624 and TEP-1612 do not currently use software for operation, all functions are controlled on the unit itself. °C Apex Instruments, Inc.
  • Page 20: Maintenance

    4.1.2 Initial end user Calibration Checks Although the unit’s temperature sensor is factory calibrated, Apex Instruments suggests that the end user check the calibration of the thermocouples by taking the TC out of the chiller block and dipping it in an ice bath that also has a calibrated thermometer dipped inside.
  • Page 21: Post-Test Maintenance

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 4.3 Post-Test Maintenance 4.3.1 Purging At the conclusion of a test series, it is highly recommended to “purge” the unit plumbing by drawing in clean, ambient air for 10 minutes or greater. This process will extend the life of the internal tubing, fittings and other parts that contact sample gas.
  • Page 22: Fig. 9 Sc-1612 Disassembly And Reassembly

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers Fig. 9 SC-1612 DISASSEMBLY AND REASSEMBLY Fig. 9 SC-1612 DISASSEMBLY AND REASSEMBLY O-RING GROOVE APPLY THIN LAYER TO O-RING NOTICE APPLY THIN CHAMFERED END LAYER TO TO THE TOP OUTER TUBE 35 in-lbs. PTFE SEALING TAPE ADAPTER...
  • Page 23: Inspections

    Email: support@apexinst.com 4.6.2 Calibration services Apex Instruments does not require this unit to be sent to us for calibration services to meet warranty. 4.6.3 Obtaining documentation and information Internet Detailed product information, firmware and/or software, stack sampling guides and EPA regulation references are available on our website: https://www.apexinst.com...
  • Page 24: Troubleshooting

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 5.0 Troubleshooting 5.1 Power 5.1.1 No power to unit or screen CAUTION 1. 5-Pin Connector in the center of the board is not secure or plugged into incorrect pins Resolution - Ensure that all wires are firmly clamped inside of the connector and that the connector is plugged into the board 2.
  • Page 25: Tep-1612 Fuji Temperature Controllers

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 6.0 TEP-1612 Temperature Controller Settings 6.1 Settings FUJI M-PRX3-# Temperature Controllers (NOTE: °F shown) 6.1.1 Set Value (SV) Setting °F °F °F To change the Set Value (SV) press once. Current Value is displayed and SV is lit.
  • Page 26: Diagrams And Schematics

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 7.0 Electrical and Plumbing Diagrams 7.1 TEP-1612 MEMBRANE DISPLAY CHILLER BLOCK ASSEMBLY SWITCH EXHAUST FANS Select NOTICE BOTTOM NOTE GROUND POSITION ON DISPLAY AND PCB WHEN RD= B+ PELTIER RD= A+ BK= A- CONNECTING RIBBON CABLE (X2)
  • Page 27: Tep-1612 Electrical Diagram

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 7.2 TEC-1612 EXHAUST FANS MEMBRANE DISPLAY SWITCH CHILLER BLOCK ASSEMBLY Select NOTICE NOTE GROUND POSITION ON DISPLAY AND PCB WHEN CONNECTING RIBBON CABLE BOTTOM (RIBBON CABLE COLORS VARY) RD= A+ RD= B+ PELTIER BK= A- (X2) BK= B-...
  • Page 28: Tec-1624 Electrical Diagram

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 7.3 TEC-1624 MEMBRANE DISPLAY SWITCH CHILLER BLOCK ASSEMBLY EXHAUST FANS Select BOTTOM RD= B+ PELTIER RD= A+ BK= A- BK= B- 7 PINS OF 7 PINS (X2) 4 PINS OF 4 PINS BK- OEM BK- OEM TEMP...
  • Page 29: Tec-1612 Plumbing Diagram

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 7.4 TEC-1612 GAS SAMPLE GAS SAMPLE INLET OUTLET Gas Conditioner Temperature Set: 1.1C 16.4 Select Main +1 919 557 7300 PERISTALTIC PUMP CONDENSATION OUTLET Apex Instruments, Inc.
  • Page 30: Tep-1612 Plumbing Diagram

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 7.5 TEP-1612 GAS SAMPLE GAS SAMPLE INLET OUTLET Gas Conditioner Thermoelectric Gas Conditioner Temperature TEP-1612 Set: 1.1C 16.4 Select Probe Probe °F Oven Oven °F °F PROBE OVEN CAUTION Disconnect Power Before Servicing +1 919 557 7300...
  • Page 31: Tep-1624 Plumbing Diagram

    TEC-1612/TEP-1612/TEC-1624 Gas Coolers 7.6 TEC-1624 GAS SAMPLE GAS SAMPLE INLET OUTLET Gas Conditioner Temperature Set: 1.1C 16.4 Select Main +1 919 557 7300 PERISTALTIC PUMP CONDENSATION OUTLET Apex Instruments, Inc.

This manual is also suitable for:

Tep-1612Tec-1624
