Eastron SDM72CT series User Manual
SDM72CT-D
Three Phase 4 Wire Energy Meter
CT operated
4 module wide
Active energy (kWh) measurement
Pulse output
IEC62053-21 Class 1.0
Din rail mounted
Zhejiang Eastron Electronic Co.,Ltd.
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: 0086-573-83698881 83698882
Fax: 0086-573-83698883
Web:
www.eastron.com.cn
User Manual V1.1
2016
- 1 -
Email: sales@eastrongroup.com
Advertisement
Related Manuals for Eastron SDM72CT Series
Summary of Contents for Eastron SDM72CT Series
- Page 1 Eastron SDM72CT series User Manual SDM72CT-D Three Phase 4 Wire Energy Meter CT operated 4 module wide Active energy (kWh) measurement Pulse output IEC62053-21 Class 1.0 Din rail mounted User Manual V1.1 2016 Zhejiang Eastron Electronic Co.,Ltd.
-
Page 2: Specification

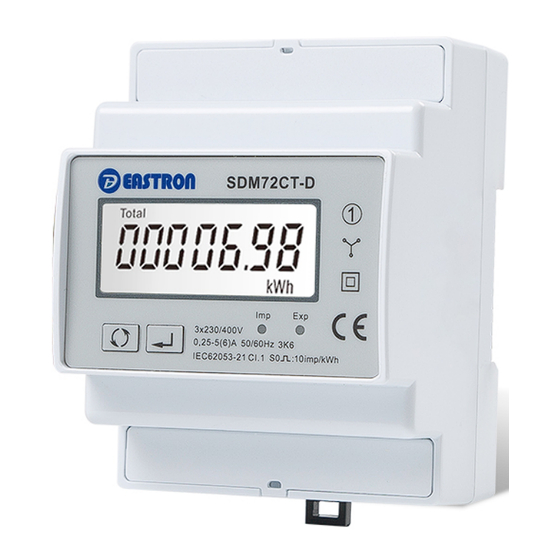

Eastron SDM72CT series User Manual Introduction The SDM72CT-D is a digital three phase 4 wire energy meter with a white back-lighted LCD screen for perfect reading. It provides an economical solution for active energy measurement in three phase applications and it is high accurate, durable and reliable. -
Page 3: Operation
Eastron SDM72CT series User Manual Mechanics Din rail dimensions 72x100x66mm (WxHxD) DIN 43880 Mounting DIN rail 35mm Sealing IP51 (indoor) Material self-extinguishing UL94V-0 PART 2 Operation Initialization Display When it is powered on, the meter will initialize and do self-checking. - Page 4 Eastron SDM72CT series User Manual Scroll display There are two buttons on the front panel of the meter, can be used to scroll display and reset the partial energy. If click the button, the user can scroll down the display for data checking.
- Page 5 Eastron SDM72CT series User Manual Password To get into Set-up mode, it asks a password confirmation. Default password: 1000 Set Password Default : 1000 Press the “Enter” button, the red part flash. Press the “Scroll” button to change the value.
- Page 6 Eastron SDM72CT series User Manual Dimensions Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 83698882 Fax: 0086-573-83698883 - 6 - Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: sales@eastrongroup.com...
