VIAIR
INSTALLATION
1. Drain air pressure completely from storage tank and air lines before attempting to install regulator.
2. Locate air flow directional arrows and securely install regulator using a threadlock compound with
arrows pointing toward tool or work station.
3. Unlock the regulator adjusting knob by pulling knob upward or away from the regulator body.
4. Turn the regulator adjusting knob counter-clockwise until no load is on the regulating spring.
5. Securely install a gauge with appropriate pressure.
6. Turn on the air compressor to rebuild tank and line pressure. Rotate the regulator adjusting knob
clockwise until the desired working pressure is achieved. Push the adjusting knob back down or
toward the regulator body to lock in the desired working pressure.
7. We highly suggest the installation of a filtration device or water trap behind the regulator to remove
moisture and prolong the life of the regulator and tools being operated.
8. The regulator is the most effective when installed as close as possible to the work station or tools
being operated.

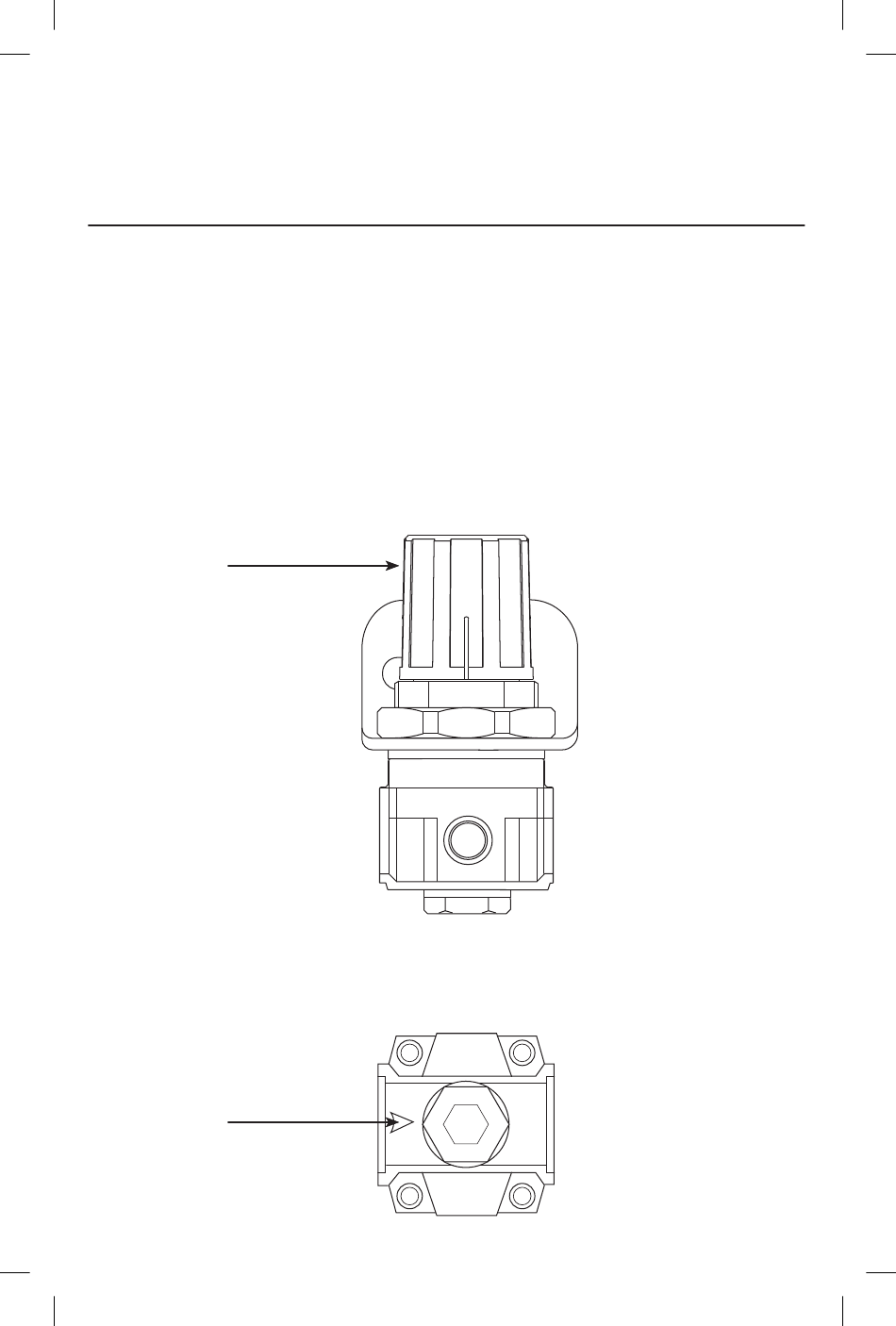

REGULATOR
ADJUSTMENT KNOB
FLOW DIRECTION
ARROW

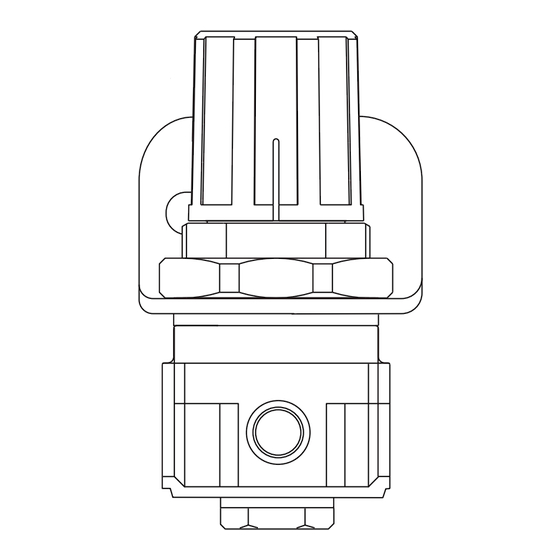

PRESSURE REGULATOR
®
PNs - 90160-90161
Advertisement
Summary of Contents for VIAIR 90160
- Page 1 VIAIR PRESSURE REGULATOR ® PNs - 90160-90161 INSTALLATION 1. Drain air pressure completely from storage tank and air lines before attempting to install regulator. 2. Locate air flow directional arrows and securely install regulator using a threadlock compound with arrows pointing toward tool or work station.
- Page 2 O-Ring Bracket O-Ring Spring Valve Gauge Body O-Ring V-Ring Piston Spring Adjusting Screw Dome Knob Fixed Ring...
- Page 3 Gauge Ports 1/8” controls and the proper use tions. Adj. Pressure 7~140 psi (PN 90160) of this equipment. Adj. Pressure 7~200 psi (PN 90161) Proper Installation 1. Safety glasses must be Temperature Range 23~140˚ F worn during operation.
- Page 4 5. RESPONSIBILITIES OF PURCHASER UNDER THIS WARRANTY: Provide dated proof of purchase and email it to customerservice@viaircorp.com along with the description of the problem.. Freight charges for products shipped to VIAIR for warranty concern are the ® responsibility of the person seeking warranty consideration.
