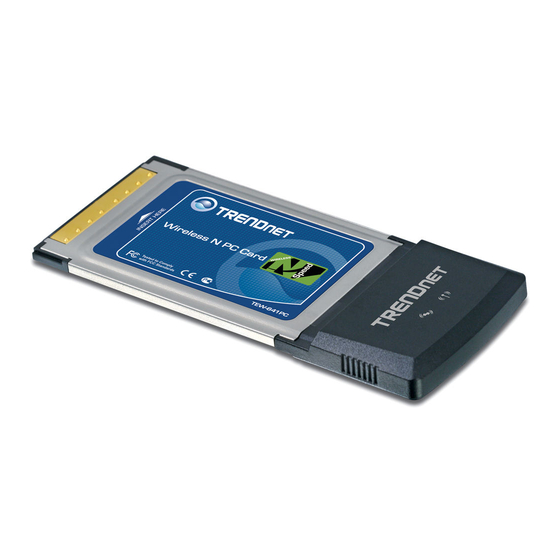

TRENDnet TEW-641PC Quick Installation Manual
  1. Manuals
  2. Brands
  3. TRENDnet Manuals
  4. Network Card
  5. TEW-641PC
  6. Quick installation manual

TRENDnet TEW-641PC Quick Installation Manual

Hide thumbs Also See for TEW-641PC:

Advertisement

Quick Links

Download this manual See also: User Manual
Quick Installation Guide
TEW-641PC
TEW-643PI
1.03

Advertisement

loading
Need help?

Need help?

Do you have a question about the TEW-641PC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TEW-641PC

Summary of Contents for TRENDnet TEW-641PC

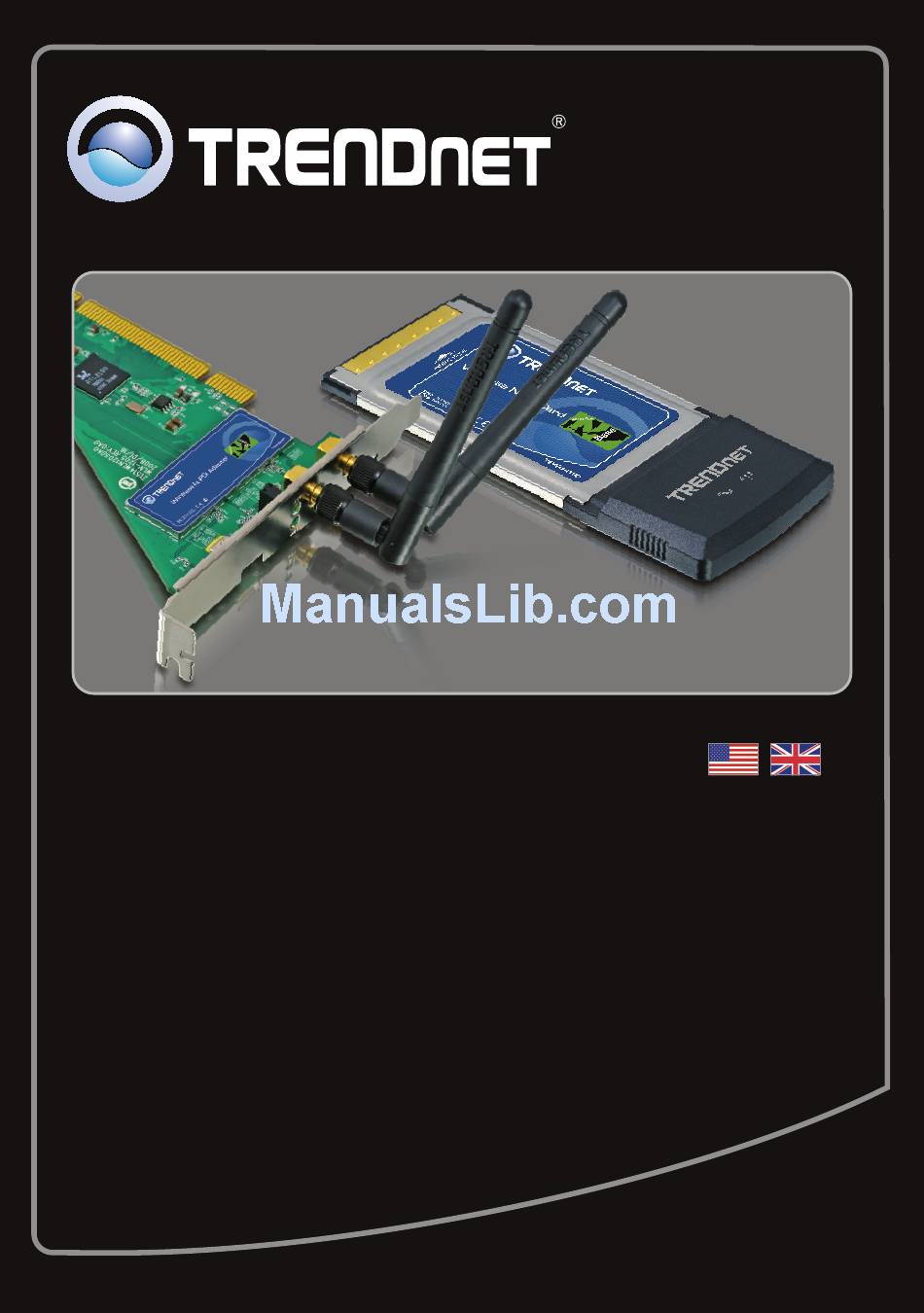

  • Page 1 Quick Installation Guide TEW-641PC TEW-643PI 1.03...

  • Page 2: Table Of Contents

    Table of Contents English 1. Before You Start 2. How to Install 3. Using the Wireless Adapter Troubleshooting Wireless Tip Version 01.27.2010...

  • Page 3: English

    1. Before You Start Package Contents TEW-641PC/TEW-643PI CD-ROM (Utility and Driver) Multi-Language Quick Installation Guide 2 x 2dbi Detachable Antennas (TEW-643PI only) System Requirements 32-bit CardBus Type II Card slot (TEW-641PC) 32-bit PCI 2.2 slot (TEW-643PI) CD-ROM Drive CPU: 1GHz or above (Windows 7) / 800MHz or above (Windows Vista) / 300Mhz or above (Windows XP/2000) Memory: 1GB RAM or above (Windows 7) / 512MB RAM or above (Windows Vista) / 256MB RAM or above (Windows XP/2000)

  • Page 4: How To Install

    2. How to Installation Important! DO NOT install the TEW-641PC/TEW-643PI in the computer until instructed to do so. 1. Insert the Utility & Driver CD-ROM into your computer's CD-ROM Drive . 2. Click Run autorun.exe (Windows 7/ Vista only). 3. Click Install Utility. 4.
  • Page 5 6. Click Continue Anyway (Windows XP). 7. Click Yes (Windows 2000). 8. Click Finish. Note: Please refer to your computer's user manual regarding hardware installation. Then proceed to the appropriate section below. TEW-641PC 9. Shutdown your computer. 10. Insert PC Card firmly into an available PC Card slot of the notebook PC and then turn ON the computer and wait until the Windows desktop appears.
  • Page 6 11. Go to Step 15. TEW-641PC 12. Shutdown your computer. 13. Open your computer's case. 14. Insert PCI Card firmly into an available PCI Card slot of the desktop PC, attach the included antenna, and then turn ON the computer and wait until the Windows desktop appears.
  • Page 7 Windows XP 17. The Found New Hardware Wizard appears. Select No, not this time and then click Next. 18. Click Install the software automatically (Recommended) and then click Next. 19. Click Continue Anyway. 20. Click Finish.
  • Page 8 Windows 2000 21. Click Yes. Your installation is now complete...

  • Page 9: Using The Wireless Adapter

    3. Using the Wireless Adapter Note: 1. Windows XP Wireless Zero Configuration utility must first be disabled as shown in step 1 and 2. If it is already disabled, then go to Step 3. 2. For Windows 7/Vista/2000, proceed to Step 3. 1.
  • Page 10 Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register register your product Online at: Thank you for choosing TRENDnet...

  • Page 11: Troubleshooting

    Properties. Click on the Wireless Networks tab and uncheck Use windows to configure my wireless settings. Then click OK. If you still encounter problems or have any questions regarding the TEW-641PC/TEW-643PI, please refer to the User's Guide included on the Utility & Driver CD-ROM or contact TRENDnet's Technical Support Department.

  • Page 12: Wireless Tip

    Wireless Tips The following are some general wireless tips to help minimize the impact of interference within an environment. Assign your network a unique SSID Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks. Do not turn off the SSID broadcast The SSID broadcast is intended to be on and turning it off can cause connectivity issues.
  • Page 13 2. Keep the number of obstructions to a minimum. Each obstruction can reduce the range of a wireless device. Position the wireless devices in a manner that will minimize the amount of obstructions between them. 3. Building materials can have a large impact on your wireless signal. In an indoor environment, try to position the wireless devices so that the signal passes through less dense material such as dry wall.
  • Page 15 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
  • Page 16 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
  • Page 17 Copyright ©2010. All Rights Reserved. TRENDnet.

This manual is also suitable for:

Tew-643pi
