Sony TRINITRON KV-32TW76 Service Manual

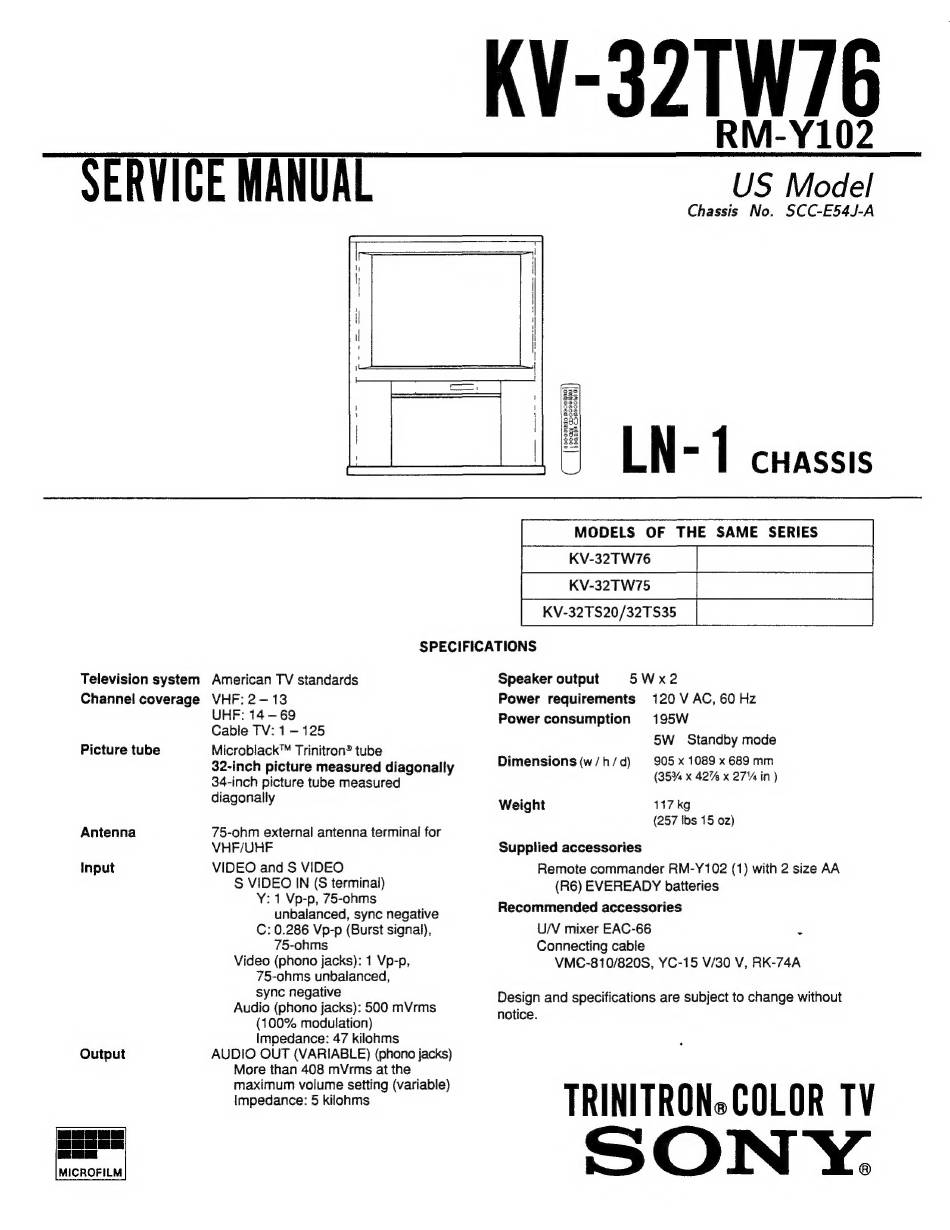

SERVICE MANUAL
KV-32TW76 |
RM-Y102
US Model
Chassis No. SCC-E54J-A
ir
GDocee nat CREO OF
8
5 3
&
a
Ss
= s
S
4 &
\oaobh
|
LN 7 1 CHASSIS
Twarwe [
avaerws fs
kvartsajsrrsss [TS
SPECIFICATIONS
Television system American TV standards
Channel coverage VHF: 2-13
UHF: 14-69
Cable TV: 1-125
Microblack™ Trinitron® tube
32-inch picture measured diagonally
34-inch picture tube measured
diagonally
Picture tube
Antenna 75-ohm external antenna terminal for
VHF/UHF
Input VIDEO and S VIDEO
S VIDEO IN (S terminal)
Y: 1 Vp-p, 75-ohms
unbalanced, sync negative
C: 0.286 Vp-p (Burst signal),
75-ohms
Video (phono jacks): 1 Vp-p,
75-ohms unbalanced,
sync negative
Audio (phono jacks): 500 mVrms
(100% modulation)
Impedance: 47 kilohms
AUDIO OUT (VARIABLE) (phono jacks)
More than 408 mVrms at the
maximum volume setting (variable)
Impedance: 5 kilohms
Output
MICROFILM
Speaker output 5Wx2
Power requirements 120 V AC, 60 Hz
Power consumption 195W
5W_ Standby mode
905 x 1089 x 689 mm
(35% x 427% x 27% in )
Dimensions (w /h/d)
Weight 117 kg
(257 ibs 15 oz)
Supplied accessories
Remote commander RM-Y102 (1) with 2 size AA
(R6) EVEREADY batteries
Recommended accessories
UN mixer EAC-66
Connecting cable
VMC-810/820S, YC-15 V/30 V, RK-74A
.
Design and specifications are subject to change without
notice.
TRINITRON» COLOR TV
SONTY.
