ATLO -CD02-TUYA User Manual

Manufactured in China for:
DELTA-OPTI Monika Matysiak,
60-713 Poznan, 10 Graniczna St., Poland
www.shopdelta.eu
Product Review:
The 2.4 GHz Wi-Fi Carbon Monoxide detector provides smart protection for your home, and you'll receive real-time
notifications on your smartphone whenever an alarm is triggered or any status change occurs.
It is suitable for all place where it is possible to produce carbon monoxide, such as your home kitchen, bedroom, bathroom,
hotel, or you are in the barbecue time, your parking garage.
Specification:
Input voltage: DC3V LR6-AA(2pcs)
Quiescent current: ≤55uA
Alarm current: ≤160mA
Low voltage and undervoltage: ≤2.4V
Wi-Fi: 802.11b/g/n
Detectable Gas: Carbon Monoxide (CO)
Alarm Set Value: 128ppm (±50ppm)
Alarm Sound: >70Db/1M
Alarm Mode: Sound and flash Alarm
Detection humidity: 0-99%RH
Installation method: wall-mounted
Working temperature: -10℃-55℃
Working humidity: maximum 90%RH

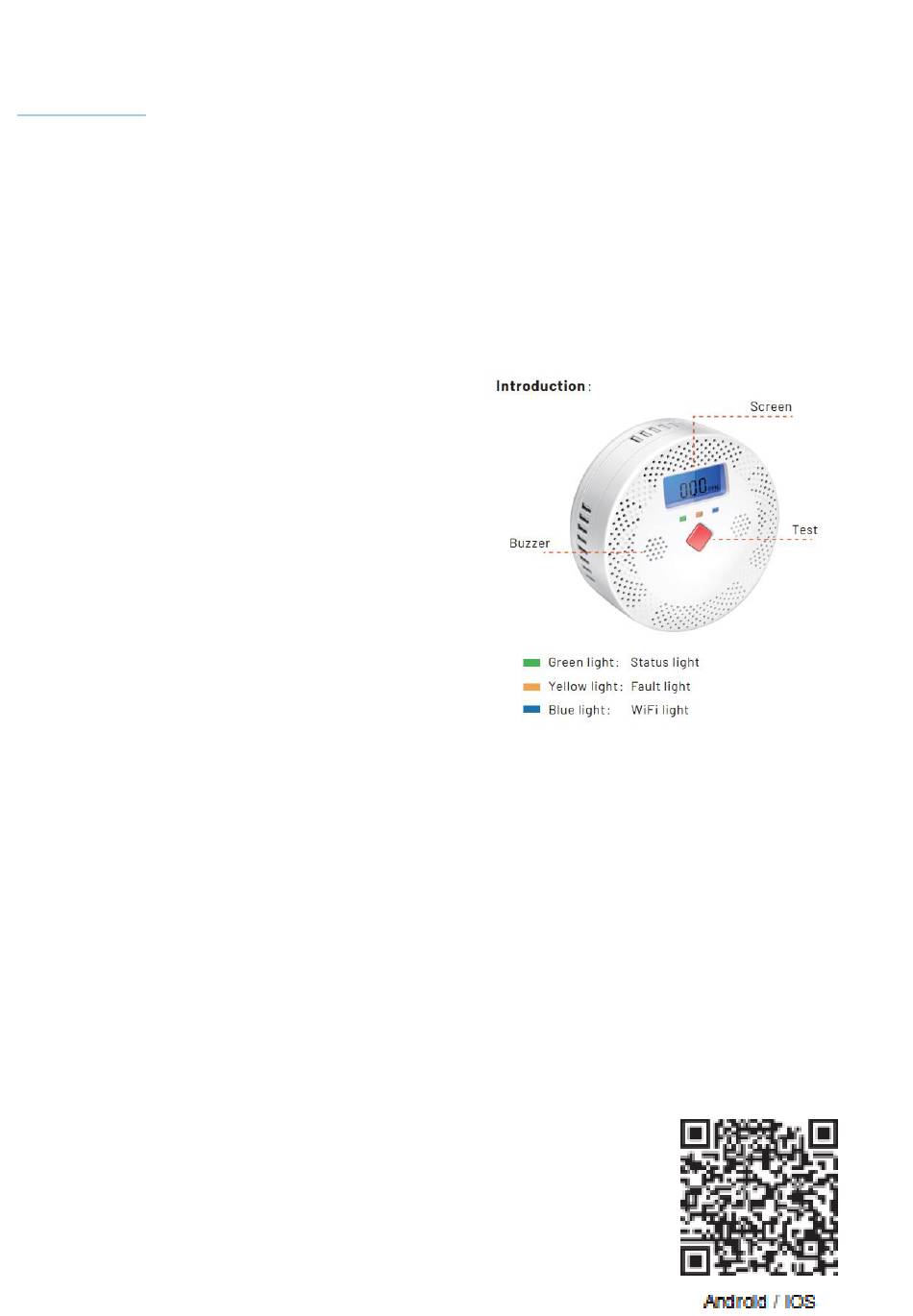

Functional Description:
All indicator lights briefly turn on and then turn off when power on. The green indicator light flashes every second, the
1.
screen shows a 120-second countdown. The flashing stops after 120 seconds, then the screen shows "0 ppm." The green
indicator light flashes once every 40 seconds.
When there is malfunction with CO sensor, the orange indicator light flashes twice every 40 seconds, the buzzer beeps
2.
twice, and the screen shows "ERR."
When press the test button the green and yellow lights keep turn on , the red light to blink, and the buzzer to sound a
3.
beep.
When the CO concentration in the environment exceeds the set value (128ppm), the red indicator light blinks, and a
4.
continuous beeping sound until the screen shows "0 ppm" then stop alarm ( APP receives alarm message if network
connected success)
For user testing, you can lit a cigarette and let smoke into the product. After a moment, the screen will show the CO
5.
concentration value. If it exceeds the set value, an alarm will sound, and the red indicator light will flash simultaneously.
How to use APP:
1. -Download "Tuya Smart" or
2.Register by mobile phone or email.
Wi-Fi Smart Carbon Monoxide Detector
ATLO-CD02-TUYA User
"SmartLife" by APP store or scan below QR code.
Manual
