Summary of Contents for Move 'N See PIX4TEAM 2

  • Page 1 U s e r m a n u a l v 1 . 0 4 User manual...

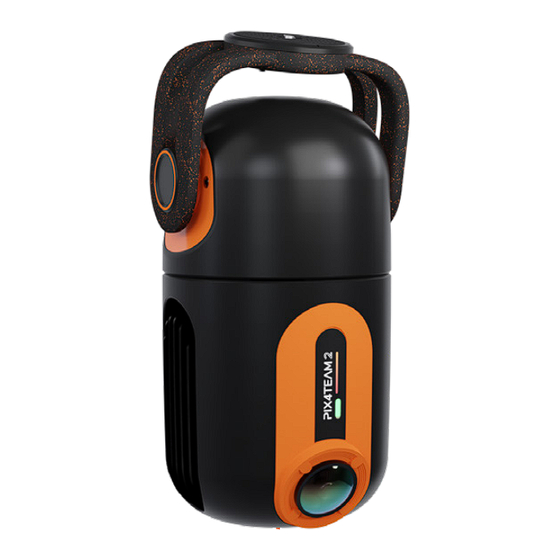

  • Page 2 Congratulations ! You have just purchased your PIX4TEAM cameraman robot to automatically film your games! The best image quality on the market, thanks to the camera of your choice with a real optical zoom! A one-time purchase, without subscription, with free live streaming, easily transportable and installed in just a few minutes! Remember to update the remote control application and the robot's internal software.

  • Page 3: Table Of Contents

    Table of contents Part 1. Installation guide A. Provided equipment B. Turning the robot on and off 1. Power supply C. Installation and configuration of the robot 1. Robot placement 2. Installing the camera/smartphone/tablet on the robot 2. Turning the robot on/off 3.

  • Page 4: Part 1. Installation Guide

    Part 1. Installation guide A. Provided equipment Your PIX4TEAM kit is delivered with: The PIX4TEAM robot. A quick-release plate with a 1/4" screw to install any camera, smartphone or tablet. A support for smartphones & tablets (max screen size 11"). A multi cable to connect the PIX4TEAM robot to a SONY camera to enjoy automatic zoom and control from the PIX4TEAM Remote app.

  • Page 5: Installation And Configuration Of The Robot

    2. Turning the robot on/off To turn on the robot, press the power button until the green LED lights up. The robot then initializes for about forty seconds and the green LED flashes rapidly. Wait for the initialization to complete and green LED to flash slowly before continuing. To turn off the robot, press the power button during 2 seconds until the green and red LEDs start flashing alternatively.
  • Page 6 FILM WITH A CAMERA FILM WITH A SMARTPHONE / TABLET If you choose to film with your lf you choose to film with one of the compatible cameras smartphone / tablet mounted mounted on the robot, here is the procedure: on the robot, here is the procedure : Vissez la caméra sur la platine...

  • Page 7: Start The Robot

    3. Start the robot Connect the robot to the mains socket or install the battery on the robot in the specific location. Remove the protective cover from the wide-angle camera. Turn on the robot by pressing the POWER button until the green LED lights up.

  • Page 8: Configuration With Pix4Team Remote

    5. Configuration with PIX4TEAM Remote It's time to configure your game on the app! Follow the instructions in the app to choose : The right sport, Camera / smartphone / tablet The dimensions of the field Select the sport of your PIX4TEAM robot Choose the sport you wish to film with your PIX4TEAM robot.

  • Page 9: Select The Filming Device

    Select the filming device Filming with a camera If you are filming with a camera, select "camera" Then select your camera model If your camera is not in the list, select "others". Recording and zooming will not be automatic. Filming with a smartphone If you're filming with an Apple smartphone or tablet, select "Smartphone/Tablet"...

  • Page 10: Set Up The Robot

    Once connected to the PIX4TEAM robot, you will directly arrive on the top camera view. Video recording starts from the PIX4TEAM Remote application. If you have several PIX4TEAM, you can associate the PIX4TEAM Camera app with the robot of your choice. In the settings you can configure the quality of the recording as well as the destination of the video...
  • Page 11 Place the 4 orange circles at the 4 corners of the field. To help you place them as precisely as possible and adjust your robot's placement, the app switches to a horizontal view. If you want to restart the complete placement of the 4 orange circles, a reset button (1) puts the circles back in their default position.

  • Page 12: Film And Stream Live With Pix4Team

    D. Film and stream live with PIX4TEAM 1. Record a video and use the videos files You can record the video from the camera mounted on the robot either: on the camera memory card¹ (not supplied) or the robot microSD card (not supplied). on the robot microSD card²...

  • Page 13: Live Stream A Video

    3. Live stream a video To do live streaming and broadcast your game live, you will need to connect your robot to the internet. A. Connect the robot to the internet Go to the options of the app by pressing the button at the top right corner Press internet configuration, then select the type of connection you prefer: - Ethernet: by connecting the robot to your internet network using an RJ45 cable (Ethernet).
  • Page 14 ATTENTION It's important to note that in this mode of operation, your phone's WiFi card is used both for transmission (as an access point) and reception (for communication with the PIX4TEAM). To achieve a high-quality video stream, it's essential that the access point has a solid connection, preferably using 5G.

  • Page 15: Host And Quickly Share Your Videos

    . Then you'll need to take out a subscription. Once you're connected, you can access all the videos captured by your PIX4TEAM 2 on its micro SD card. Press the "Upload" button WARNING Once you've confirmed the upload form, you...

  • Page 16: Score And Banner Management

    E. Score and banner management Go to the « Score » tab Press the « Subscribe » button . You will be redirected to our website. Put the « add-on Score » in your cart then proceed with payment. After your purchase, you will receive a confirmation email with a code to be activated in the PIX4TEAM Remote App.

  • Page 17: Part 2. Advanced Settings

    Part 2. Advanced settings A. Manual tracking and zoom Automatic tracking Automatic zoom Manual controls Tracking correction If you notice that the tracking is not accurate enough, press this button. The tracking is automatic, by Autozoom is activated by deactivate default.

  • Page 18: Updating Pix4Team

    C. Updating PIX4TEAM Your robot's internal software may sometimes need updating for additional functions or technical improvements. You will be informed by our customer support or by a notification in the PIX4TEAM Remote application. - Connect your robot to the internet. - Connect your robot with the AC adapter.

  • Page 19: Technical Specifications

    F. Technical specifications Be careful not to scratch or damage the lens of the robot's wide-angle camera. Always replace the cover after use and clean the lens from time to time with a microfiber cloth. Be careful, when using the robot as the robot's heatsink can reach 60°C / 140°F. Like every electronic device, proper functioning of the robot cannot be guaranteed when the temperature goes below 0°C / 32°F or goes over 40°C / 104°F.

  • Page 20: Automatic Zoom

    After sale postal address: MOVE ‘N SEE - SAV, 15 rue Johannes Kepler, 29200 BREST - FRANCE After sale phone: +33 (0) 9 70 75 13 15 (not overtaxed) MOVE 'N SEE products have two-years warranty normal use without opening the devices. Any opening of the device voids the warranty.

  • Page 21: Warning

    To return a faulty product to MOVE 'N SEE, you must first contact MOVE 'N SEE support to explain the problem encountered. If the technical department at MOVE ‘N SEE decides that the robot cameraman needs to be returned to them, you will be given a re- turn code (RMA: Return Material Authorization).

  • Page 22: For Customers In The Usa

    For customers in the USA Recycling of lithium ion batteries: Lithium ion batteries are recyclable. You can help preserve the environment by returning used bat- teries to the nearest collection and recycling point. For more information on battery recycling, call toll-free 1-800-822-8837 (US and Canada only), or visit http://www.call-2recycle.org/ This device complies with Part 15 of the FCC Rules.

  • Page 23: Troubleshooting

    3. Troubleshooting Remember to update the remote control application and the robot's internal software. Automatic tracking quality 1. Remember to clean the robot's wide-angle lens with a soft cloth or microfiber towel, to ensure that it is not obstructed. 2. Make sure you are in auto tracking mode and not in manual con- trol mode.
  • Page 24 Automatic zoom quality 1. Check that your camera is in the list of compatible cameras (most SONY and CANON cameras are compatible). 2. Check that you have selected the correct camera model in the PIX- 4TEAM Remote application settings. 3. Check that you are zooming automatically and not manually. 4.

  • Page 25: Sound Quality

    Stream quality 1. Check that WiFi and mobile data are enabled in your phone's settings. 2. You have not created a Facebook / Youtube / Twitch account. 3. The HDMI cable is not connected all the way between your camera and The stream is impossible the robot 4.
  • Page 26 Depending on the location of the device, your camera's microphone will pick up cheers from nearby people, the mood, or the sound of the wind. Depending on your use, several solutions are available to you to have a suitable sound: - If you want to capture the atmosphere of the stadium in an optimal way, The sound quality does not you can place an external microphone with a foam windscreen on your...

  • Page 27: Customer Support

    CUSTOMER SUPPORT After sale email: pix4team-ccc@movensee.com After sale postal adress: MOVE ‘N SEE - SAV, 15 rue Johannes Kepler, 29200 BREST-FRANCE After sale phone: +33 (0) 9 70 75 13 15 (not overtaxed)
