Oasis NNEBFPG Installation Instructions Manual

Cooler to bottle filler conversion kit for pg8ac coolers
Hide thumbs

Advertisement

Table of Contents

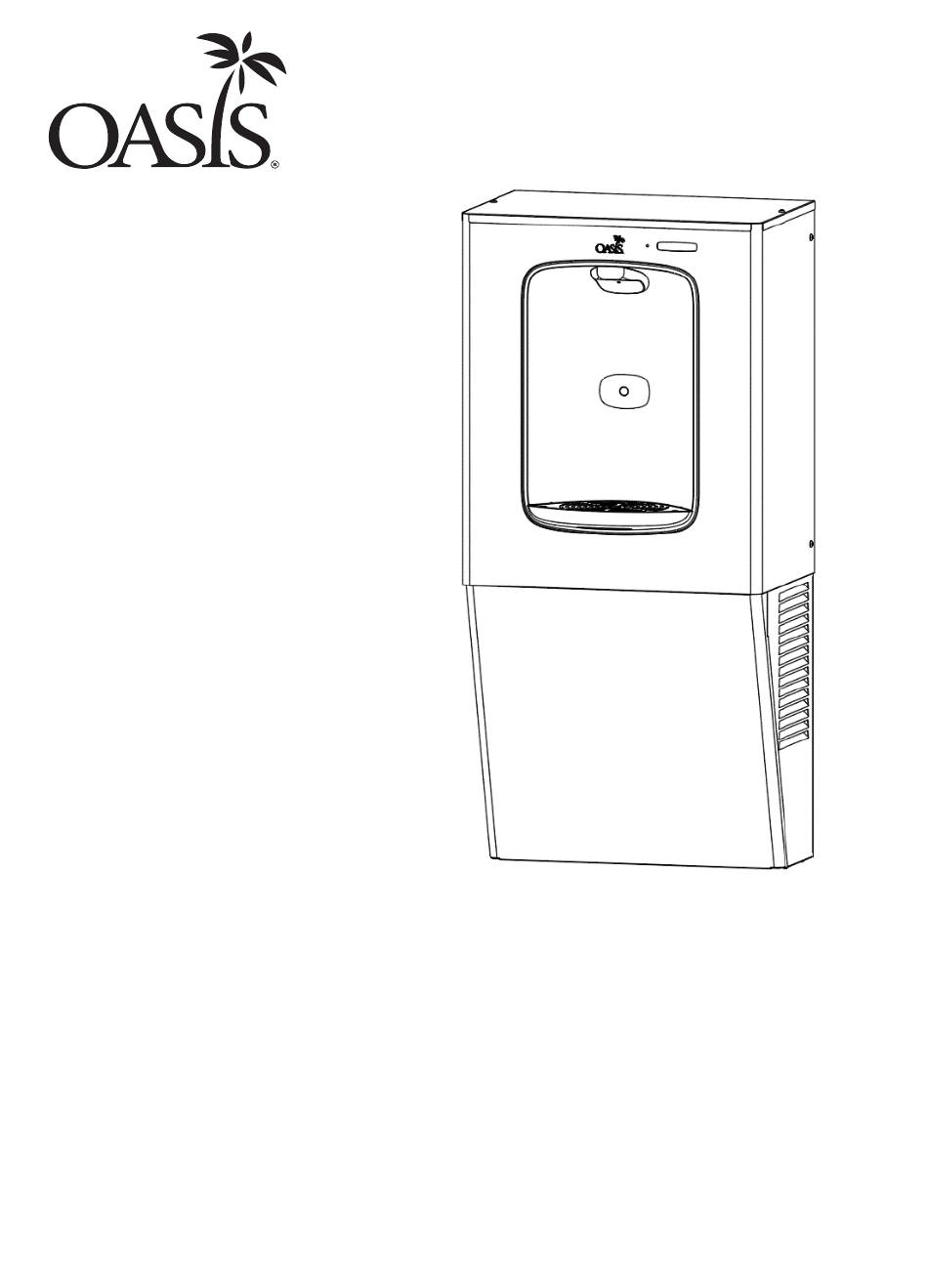

NNEBFPG
NNFEBFPG with VersaFilter III
Cooler to Bottle Filler Conversion Kit for OASIS PG8AC
Coolers
INSTALLATION INSTRUCTIONS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NNEBFPG and is the answer not in the manual?

Questions and answers

Summary of Contents for Oasis NNEBFPG

  • Page 1 NNEBFPG NNFEBFPG with VersaFilter III Cooler to Bottle Filler Conversion Kit for OASIS PG8AC Coolers INSTALLATION INSTRUCTIONS...

  • Page 2: Section 1: Getting Started

    Section 1: Getting Started What’s Included: Strain Relief P-Clip Drain Elbow Installation instructions T15 Torx Screws Assembled Side Mounting NN(F)EBFPG Cabinet Bracket #8 Hex Screw Center Bracket #8 Thread Cutting Drainpipe Hex Screw VersaFilter III (Model NNFEBFPG only) Tools & Hardware Required: •...
  • Page 3 Section 2: Single Level Rough-In Drawing NNEBFPG: NNFEBFPG: NOTES: 1. * DIMENSIONS ARE REFERENCE ONLY. 2. ALL DIMENSIONS ARE IN INCHES. DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS.
  • Page 4 PREPARATION • Disassembly of P8AC Cooler • Wiring • Water Lines...
  • Page 5 Section 3: Preparation 1. Remove the front panel by removing two Phillips screws under the nose assembly and by loosening the 2x #8 hex screws at the bottom. 2. Disconnect power by UNPLUGGING the unit. 3. Turn OFF water supply to the unit. Bleed any remaining pressure from the lines by activating the bubbler valve.
  • Page 6 Section 3: Preparation 5. Remove fountain nose assembly. Tool: T15 Torx Driver Remove 6x T15 Disconnect water line Torx screws from from cold water tank the fountain Drainpipe pulls up with cooler top 6. Remove the cooler nose assembly. On the Contractor’s Choice Model, be sure to carefully remove the cold control.
  • Page 7 Section 3: Preparation 7. The cooling tank must be pressurized for the NNEBFPG. If the water source line is plumbed directly into the cooling tank, the unit is already pressurized. For the filtered model NNFEBFPG with the Versafilter III move to Section 3: Step 8.
  • Page 8 Section 3: Preparation 8. Model NNFEBFPG with Versafilter III: Remove the 1/4”OD water source line plumbed directly into the cooling tank or plumbed directly to the cartridge valve on the cooler nose assembly removed in Section 3: Step 6. 9. Remove the cooling tank water outlet line attached to the cooling tank outlet but do not remove the elbow fitting.

  • Page 9: Single Level Installation

    SINGLE LEVEL INSTALLATION • Assembly of NNEBFPG & NNFEBFPG Cabinet • Wiring • Plumbing...

  • Page 10: Section 4: Installation

    Section 4: Installation 1. The NNEBFPG and the NNFEBFPG comes partially assembled for shipping. Remove the kit from the packaging and separate it into the assemblies and components shown below. Tool Needed: T15 Torx bit NNEBFPG NNFEBFPG Frame Frame Assembly...
  • Page 11 Section 4: Installation 2. Assemble the center bracket to the holes in each of the cooler struts with 4x T15 Torx screws. Original P8AC Model: DO NOT RELOCATE COLD CONTROL ON THIS MODEL Center Bracket T15 Screws 4x Contractor’s Choice Model: After affixing the center bracket to the cooler, assemble the cold control to the center bracket using the original machine thread screws that were on the unit.
  • Page 12 Section 4: Installation 3. Assemble the two side brackets to the unit with two T15 Torx screws each. The brackets are identical and will work on both sides of the unit. Align each bracket as shown. Use the clearance hole to attach the screw in the cooler strut (away from the wall) and use the slot to attach the bracket in the rear (closer to wall).
  • Page 13 NNFEBFPG Frame Assembly Align the side edges of the NNEBFPG or NNFEBFPG and cooler frames to center the frame. 5. Affix the frame to the wall with at least 4 anchors into any appropriate anchor points through the staggered slotted holes.
  • Page 14 Section 4: Installation 6. With 4x T15 Torx screws, assemble the drip tray assembly to the center bracket and wall frame. Put IN FRONT OF center bracket 7. Attach the filter support bracket with 2x T15 Torx screws to the frame and drip tray support bracket.
  • Page 15 Section 4: Installation 8. NNFEBFPG with Versafilter III only: Insert Filter Head Inlet Tube into water supply reducing fitting. Install VersaFilter III filter cartridge to Filter Head Assembly. See instructions on filter cartridge for Installation Instructions and for Filter Flushing Instructions.
  • Page 16 Section 4: Installation 9. Attach one of the drain elbows to the drip tray stem. Insert the drainpipe provided into the elbow and then attach another elbow onto the pipe. Use the remaining drainpipe and connect the drip tray drainage system to the installed P-trap. NOTE: Drainpipes will need to be positioned and cut to length as needed.
  • Page 17 Section 4: Installation 10. Assemble NNEBFPG or NNFEBFPG wrapper to the installed frame. Rest the alcove on the drip tray and ensure the wrapper walls rest OUTSIDE of the frame and side brackets. NOTE: The drip tray will hold the weight of the wrapper but it is recommended to keep a hold on the unit during installation for safety.
  • Page 18 Section 4: Installation 11. If the outer edge of the drip tray is not properly aligned, loosen the screws mounting the filter support and drip tray bracket to the frame and push forward or back as needed. Then retighten the screws. Slotted Holes...
  • Page 19 Section 4: Installation 12. Attach the end of the provided ¼” water line with insulation tubing to the cold tank water outlet fitting at the top of the reservoir. ¼” Water Line With Insulation Tubing (Provided) Cooling Tank Water Outlet...
  • Page 20 Section 4: Installation 13. Install the strain relieving P-Clip roughly 36” from the three-prong wall plug and attach to the fountain strut with the provided #8 Hex, tapping screw. Use the clearance hole shown in the image below. 14. Attach the ground ring terminal using the provided thread cutting machine screw to an available hole on the fountain strut.
  • Page 21 Section 4: Installation 16. Complete the installation by turning on the water source and checking for leaks. 17. Ensure nothing is obstructing the fan blade. Plug both fountain and bottle filler power cords into the wall outlet and then test to ensure the bottle filler is functioning properly. 18.
  • Page 22 SPLIT LEVEL INSTALLATION • Assembly of NNEBFPG and NNFEBFPG Cabinet • Wiring • Plumbing...
  • Page 23 Section 5: Split Level Rough-In Drawing NNEBFPG: NNFEBFPG Option: NOTES: 1. * DIMENSIONS ARE REFERENCE ONLY. 2. ALL DIMENSIONS ARE IN INCHES. DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS.
  • Page 24 Section 6: Split Level Installation 1. Remove the fountain wrappers and nose assembly from each unit (refer to pages 5-6) to prepare the units for the NNEBFPG or the NNFEBFPG installation. Unplug the fountain unit and shut off their water source.
  • Page 25 Section 6: Split Level Installation 4. Take one of the NNEBFPG frames and center it on the dummy unit frame. Mark 4 appropriate holes for your chosen wall anchors (not provided) and then remove the frame to pre-drill the anchor points.
  • Page 26 NNEBFPG or the NNFEBFPG kit to the dummy unit frame. Refer to pages 11- 8. Lay the dummy unit on the floor and set the NNEBFPG frame or the NNFEBFPG frame assembly onto the unit and then install the drip tray bracket assembly with the T15 Torx...
  • Page 27 Section 6: Split Level Installation 9. Remove the top panel from the NNEBFPG or NNFEBFPG wrapper assembly and lay the wrapper over the assembled frame and drip tray. Secure with 4x T15 Torx screws provided. Refer to page 17. 10. Carefully lift the assembled dummy unit by taking hold of the fountain frame and NNEBFPG or NNFEBFPG kit.
  • Page 28 11. Ensure that the frame and fountain are flat against the wall and install your 4 chosen wall anchors (not supplied) to secure the NNEBFPG frame or the NNFEBFPG frame assembly to the wall. Ensure that the NN(F)EBFPG frame remains centered on the dummy unit frame.
  • Page 29 Section 6: Split Level Installation 14A. Reconnect the water source line to the water reducing fitting but, DO NOT turn on the water. Model NNFEBFPG with Versafilter III, remove the water source line at the cooling tank 14B. water inlet fitting. See Section 4: Step 8 for connecting Filter Head Water Inlet & Outlet Lines, installing the Filter Cartridge on the Filter Head and Flushing the Filter.
  • Page 30 Section 6: Split Level Installation 16. Connect each of the power bricks in each NN(F)EBFPG kit with one of each of the two IEC connectors. Ensure that the wires will not obstruct the fan blade. Power Brick IEC Connector 17. Connect the provided insulated water tubing to the cooling tank water out fitting. Refer to page 19.
  • Page 31 ® Section 7: Set-Up Guide For OASIS Hands-Free Bottle Filler Electronics Factory default program settings are: • Bottle Count = 0.5L (1 Bottle) • Units - Gallons • Flow Rate = 1.2 GPM • Unfiltered unit • 20 second maximum dispense time •...

  • Page 32: Section 8: Parts Breakdown

    Section 8: Parts Breakdown Item QTY P/N Description Item QTY P/N Description 041245-004 Frame 026675-003 Screw, Flat HD Tapping 041250-001 Panel, Front 041207-001-SP Power Cord Assembly 041241-001 Panel, Filter 038036-003 Power Supply, 100-240VAC/12VDC 041238-006 Wrapper 042369-001 Spout, ARF A020967 1-1/2" Elbow, W/ Nuts, 1-1/4" 017681-024-SP Insulation, Songe Tube 24.0"...
  • Page 34 THIS PAGE IS INTENTIONALLY LEFT BLANK...
  • Page 35 Kit for OASIS P8AC Water Coolers Installation Instructions P/N 030099-702 Date: 02/2023 OASIS INTERNATIONAL © 2023 LVD Acquisition, LLC 222 East Campus View Blvd. Columbus, OH 43235 Oasis, Aqua Pointe, Versacooler and VersaFiller are registered trademarks of 614-861-1350 LVD Acquisition, LLC dba Oasis International www.oasiscoolers.com...
