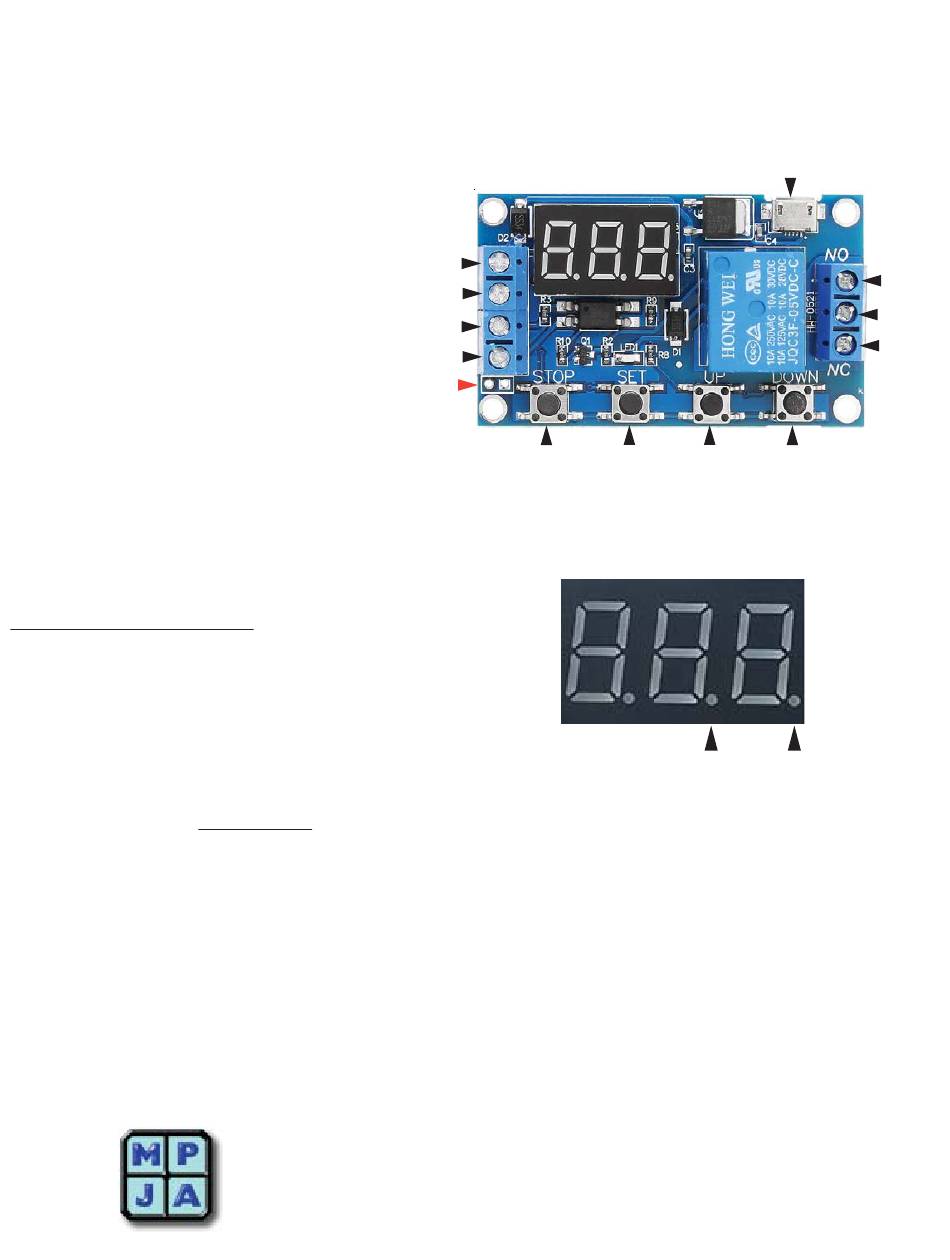

Microprocessor based, programmable, triggered
timing module. Opto-isolated trigger input starts
timing.
Programming requires patience and practice.
Programmable as a Delay on Start, Delay on Stop
or Recycling.
Programmable ON/OFF Times & Number of
Recycles (Looping)
Time Ranges: 3
Range:0.1sec. to 999min.
0-999 Minutes 1 Minute Resolution
0-999 Seconds 1 Second Resolution
0-99.9 Seconds .1Second Resolution
Power: 6-30VDC
5V Only on the USB input
Current: Standby: <20mA <60mA Relay
energized
Trigger Voltage; 3-24VDC
Relay: SPDT
Contacts: 10A 125/250VAC/30VDC
Terminal Strip for Relay Contacts
Terminal Strip for Power & Trigger
USB Micro B for 5V only Power.
L: 2-1/2"
W: 1-1/2"
GETTING STARTED
It is recommened that before you install the module:
Set up module with only Power and a Trigger Source
connected.
This makes learning how to program the unit easier.
NOTES ON TRIGGER ISOLATION (Ground Jumper)
COMPLETE ISOLATION: Factory Default, Jumper Missing
(Next to 4Position Terminal Strip)
Power and Signal (Trigger) Ground are NOT Connected
COMMON GROUND:
Install Ground Jumper
Power - and Signal (Trigger) Grounds are then Connected
Information including Drawings, Schematics, Links and Code (Software) Supplied or Referenced in this Document is supplied
by MPJA inc. as a service to our customers and accuracy or usefulness is not guaranteed nor is it an Endorsement of any
particular part, supplier or manufacturer. Use of information and suitability for any application is at users own discretion and
user assumes all risk.
© 07/24
38581-MP
Multi-Function Timer
6-30VDC
3-24VDC +
TRIGGER
Common Ground
Jumper
H: 3/4"
WT: .06
Information Subject to Change Without Notice
All rights are retained by the respective Owners/Author(s)
MARLIN P. JONES
MARLIN P. JONES
8380 Resource Rd. West Palm Beach, Fl 33404
800-652-6733
+
POWER
-
-
STOP
.
888
Decimal point in "Units" place, range: 1 second ~ 999 seconds
.
88
8 Decimal point in "Tens", range: 0.1 seconds ~ 99.9 seconds
.
.
.
8
8
8
3 decimal points, range: 1 minute to 999 minutes
FAX 561-844-8764
WWW.MPJA.COM
5VDC ONLY
USB MICRO B
SET
UP
CONTROL BUTTONS
RANGE INDICATION
Tens
& ASSOC., INC.
& ASSOC., INC.
CONTACTS
NO
COM
NC
DOWN
Units
Advertisement
Summary of Contents for Marlin 38581-MP
- Page 1 Use of information and suitability for any application is at users own discretion and user assumes all risk. Information Subject to Change Without Notice All rights are retained by the respective Owners/Author(s) MARLIN P. JONES MARLIN P. JONES & ASSOC., INC. & ASSOC., INC.
- Page 2 ON until next Power Up. Trigger is Inactive. F-4 Relay ON at Power UP. The count specified in the OP parameter starts, after the countdown, the relay is switched OFF until next Power Up. Trigger is Inactive. MARLIN P. JONES MARLIN P. JONES & ASSOC., INC.
- Page 3 38581-MP P2.1- In this mode the relay ON or OFF Upon Powering Up Is Set By Status of F-3/F-4. F-3: Relay is Closed (ON) at Power UP, When a Trigger signal is applied to the Input, the relay remains Closed (ON), counts down the time specified in the OFF state CL, after this time the relay Opens (OFF) and counts down for the time set for the Closed state OP.
-
