- Page 1 OTM-RM1 dametric OTM – RM1 VAL0122982 / SKC9068263 OPTIONAL TEMPERATURE MONITOR FOR THE RMS-SYSTEM USERS MANUAL OTM-RM1 EN.docx June 5, 1998 / BL 1(5)
-
Page 2: Location Of Components
Channel 2, Internal 100 C full span level ................5 Channel 2, Internal 200 C full span level ................5 CONTACT ............................. 5 LOCATION OF COMPONENTS OTM-RM1 EN.docx June 5, 1998 / BL 2(5) -
Page 3: Description Of Operation

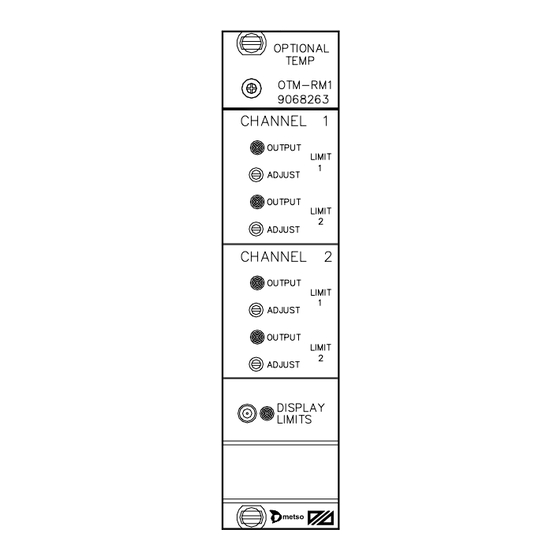

OTM-RM1 DESCRIPTION OF OPERATION The OTM-RM1 unit monitors two PT-100 type temperature sensors. The monitor includes following functions: Zero and span calibration for each PT-100 input. Internal zero and span level-adjustments to 1V (0%) and 5V (100%). 100 or 200 C full span levels, determined by dip settings. - Page 4 The adjustment of the alarm limits is done on this unit, but the reading of the limits must be done on the indicator unit (LDU-RM1 or DCU-RM1/2) of the RMS-system. For adjustments, see the CALIBRATION MANUAL for the RMS-system, RMS-EX1, RMS-SD1, RMS-CD1 or RMS-DD1. OTM-RM1 EN.docx June 5, 1998 / BL 4(5)
-
Page 5: Factory Adjustments
Sales, development, production and service: Dametric AB Jägerhorns Väg 19, SE 141 75 Kungens Kurva, Sweden Phone: +46-8 556 477 00 Telefax: +46-8 556 477 29 e-mail: service@dametric.se Web site: www.dametric.se OTM-RM1 EN.docx June 5, 1998 / BL 5(5)
