ASSEMBLY

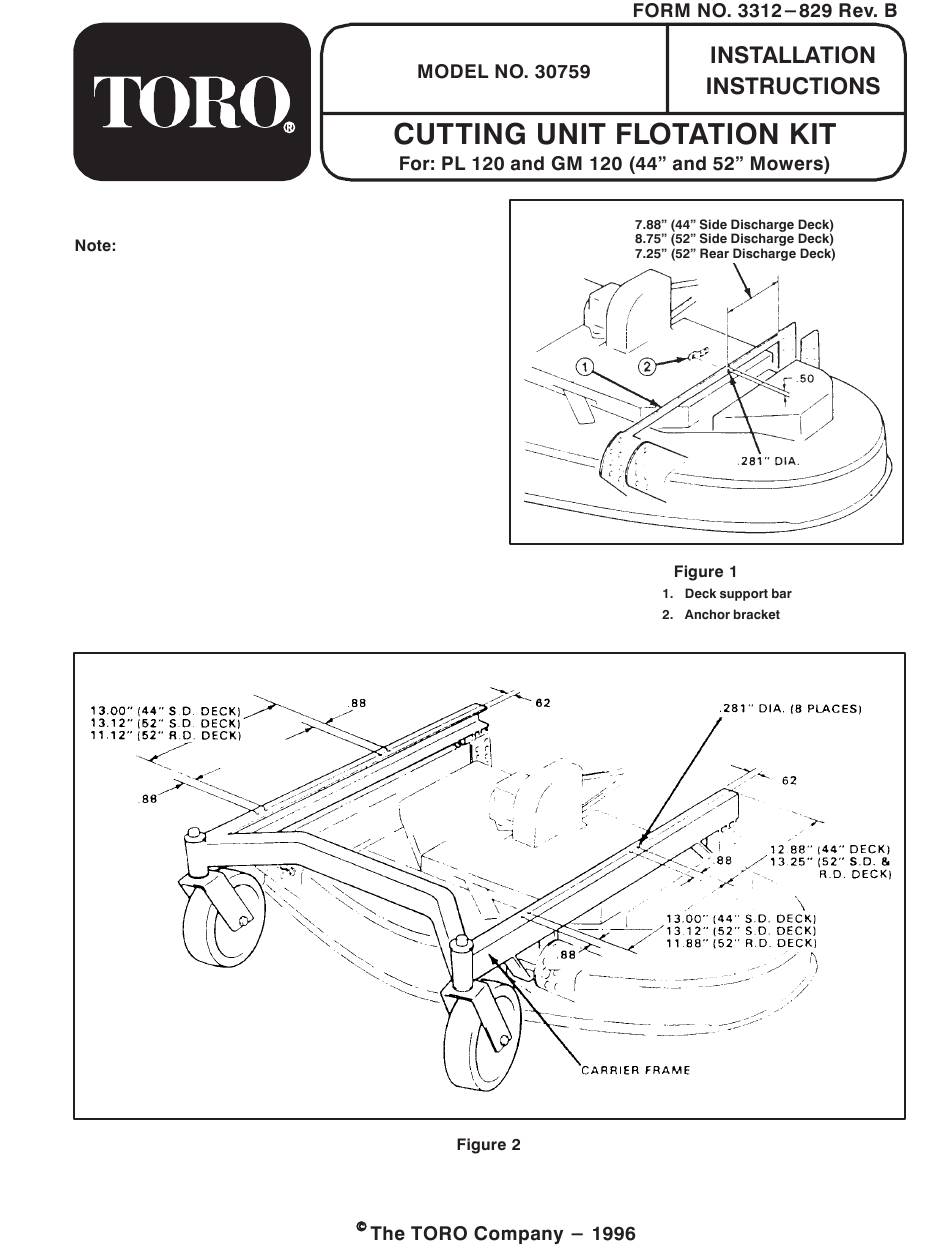

Dimensions shown in (Fig. 1 and 2) pertain to
both 44" and 52" cutting units unless otherwise speci-
fied. Use appropriate dimensions when locating holes.
Cutting units with serial numbers of 60001 and up may
have mounting holes drilled.
1. Using dimensions shown in (Fig. 1), locate and drill
(2) .281" dia. holes in cutting unit deck support bars (one
on each side).
2. Position anchor bracket on inside of deck support
bar, aligning front hole with drilled hole (Fig. 1).
3. Using anchor bracket as a template, mark and drill
(2) .281" dia. holes in each deck support bar. Clevis pin
may be used to align holes when marking.
4. Mount anchor bracket to the inside of each deck
support bar with (2) round head screws and locknuts.
Position screw heads toward outside of deck.
5.
Using dimensions shown in (Fig. 2), locate and drill
(8) .281" dia. holes in carrier frame (4 in each side).
Advertisement
Summary of Contents for Toro 30759
- Page 1 ASSEMBLY Dimensions shown in (Fig. 1 and 2) pertain to both 44” and 52” cutting units unless otherwise speci- fied. Use appropriate dimensions when locating holes. Cutting units with serial numbers of 60001 and up may have mounting holes drilled. 1.
- Page 2 6. Mount a pulley bracket and control adjustment OPERATION bracket to each side of carrier frame with capscrews and lock nuts, positioning them as shown in (Fig. 3). The cutting unit performs best when spring tension is adjusted so deck can easily float over the terrain, but still 7.
