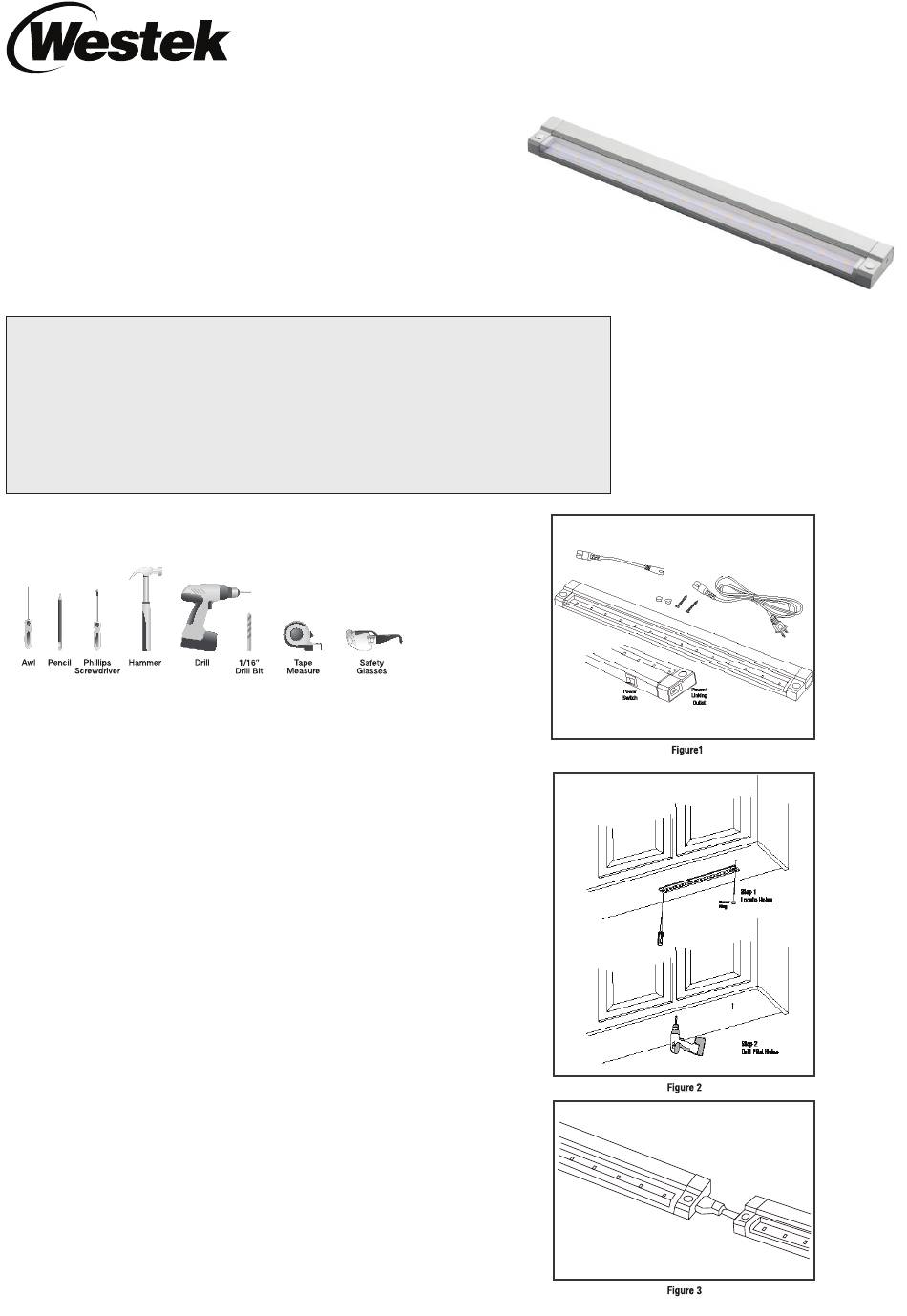

AmerTac Westek Utility Series Instructions For Installation

Utility Series LED Undercabinet Lighting
Models: ZIO-L15W
FEATURES
Plug-in design for easy installation
Quick and easy linking system
On/Off Switch
INCLUDES
ZIO Series 15" Plug-in Light Fixture
(1) Power Cord, (1) Linking Cord, Mounting Hardware.
IMPORTANT SAFETY INSTRUCTIONS
For use with 120V, 60Hz electrical power supply only.
WARNING: TO PREVENT OVERHEATING AND ELECTRICAL SHOCK DO NOT INSTALL IN SMALL ENCLOSED SPACES. TO
PREVENT ELECTRICAL SHOCK DO NOT INSTALL IN WET LOCATIONS.
SAVE THESE INSTRUCTIONS
1. Read and understand all of these instructions before installing fi xture.
2. Keep these instructions in a safe place for future reference.
3. Do not mount over sink or stove.
4. WARNING: These products may represent a possible shock or fi re hazard if improperly installed or attached in any way.
Products should be installed in accordance with these instructions, current electrical codes and/or the current National
Electric Code (NEC).
SECTION 1 - PREPARATION FOR INSTALLATION
Tools Needed
Parts of this Light Fixture
This Fixture comes with a the 5' Power Cord with a polarized plug (one blade wider than
the other) as a safety feature. This plug can be used in a polarized outlet only one way.
If the plug does not fi t fully in the outlet, reverse the plug. If it still does not fi t, contact a
qualifi ed electrician. Never use with an extension cord unless the plug can be fully inserted.
Do not alter the plug.
- 15" light fi xture
- Linking Cord
- Power Cord
- Mounting Hardware (screws, screw plugs)
SECTION 2 - INSTALLATION
Placement of Fixture
Determine location for connecting to nearest 120V polarized receptacle. (Note: before
mounting to cabinet be sure fi xture is within 5' of an electrical outlet, considering path
cord will take to be neatly and securely mounted to cabinet and wall.) If you are not sure
about this installation consult a local licensed electrician or electrical contractor before
proceeding.
Locate Mounting Holes: Place fi xture on mounting surface and with a thin screwdriver,
pencil or scratch awl mark the spot where the screws will be located through the Mounting
Holes in the top of the fi xture. See Figure 2. Do the same for a multiple fi xture installation.
For mounting into drywall, drill 3/16" holes for the plastic wall anchors (not included). Insert
the plastic wall anchors into the proper holes and tap them into place so they are fl ush
with the surface of your drywall. For mounting into wood cabinets drill 1/16" pilot holes,
1/2" deep. Caution: Check your cabinet thickness fi rst. Be careful not to drill through
cabinet.
Attach fi xture to cabinet or wall by tightening screws securely. Insert screw plugs for a
clean installation. Remove Power/Outlet Linking cover and connect 5' Power Cord to
Power/Linking Outlet in end of fi xture. Plug in Power Cord to a 15A circuit grounded outlet.
Warning: Do not conceal power supply cord inside a wall, ceiling, soffi t, kitchen cabinet,
or similar permanent structure. Do not run the power supply cord through holes in walls,
ceilings or fl oors.
Use UL listed cable staples (not included) to route Power Cord to bottom of cabinet and
wall for a clean installation.
INSTRUCTIONS FOR INSTALLATION OF
PLUG-IN LIGHTING FIXTURE
