Homeworks HWI-ENC-CC Installation Instructions Manual

Installation Instructions
1. Mount Rough-In Enclosure using one of the fol-
lowing methods (mounting hardware is not provid-
ed):
a. Surface Mount - Use keyholes shown in
Figure 1 with bolts sufficient for 20 lbs. (9 kg) load
(3/16" (4.75mm) to 1/4" (M6) bolts recommend-
ed).
b. Recess Mount - Use screws through the right
side of the enclosure as shown in Figure 1. Mount
panel flush to or not more than 1/8" (3 mm)
below the finished wall surface. (Panel is 1-11/16"
(4.3 cm) deep past cover mounting tabs.)
Caution - Connect only HomeWorks Interac-
tive Class 2 wire.
Caution - Internal relays will click while in
use. Mount in a location where such noise is
acceptable.
2. Install Low Voltage Accessory Board. Install one
Contact Closure Board (HWI-CCO-8 or HWI-CCI-8),
using instructions packaged with the unit. If board is
not installed at this time, leave these instructions
inside the enclosure.
3. Connect ground wire. A location for connecting the
grounding wire is shown in Figure 2.
4. Install cover. Tighten screws to 20 in.-lbs. (2.3
Nm).
Caution - Intended for use only with
HomeWorks Interactive Contact Closure
Boards.
HWI-ENC-CC
HomeWorks Interactive
Low Voltage Rough-In Enclosure

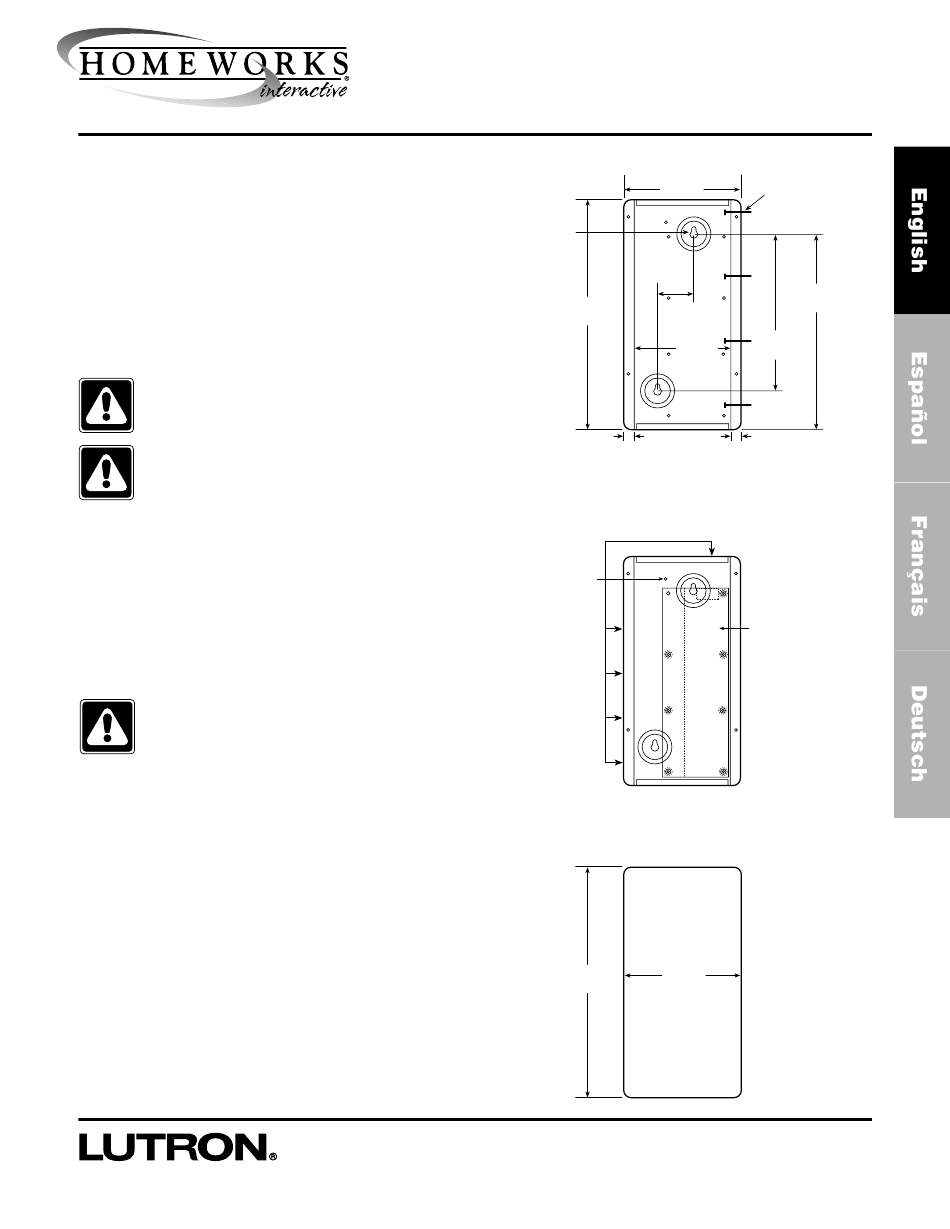

Figure 1: Mounting Dimensions
5-1/4"
(12cm)
Surface Mount
Keyhole
1-5/8"
(4cm)
10-1/4"
(26cm)
3/8"
(1cm)
Figure 2: Wiring Entry
Low Voltage
Wiring Entry
Connect Ground
Wire Here
Low Voltage
Wiring Entries
Figure 3: Cover Dimensions
5-3/4"
10-3/4""
(27cm) (15cm)
This product may be covered under one or more of the following U.S. patents:
4,797,599; 4,889,999; 5,170,068; 5,237,207 and corresponding foreign patents. U.S.
and foreign patents pending. Lutron and HomeWorks are registered trademarks of
Lutron Electronics Co., Inc.
© 1999 Lutron Electronics Co., Inc.
Recess Mount
Screw 1-3/4"
(4.5cm)
9"
(23cm)
7"
4.5"
(18cm)
(11cm)
3/8"
(1cm)
HWI Contact
Closure Board
