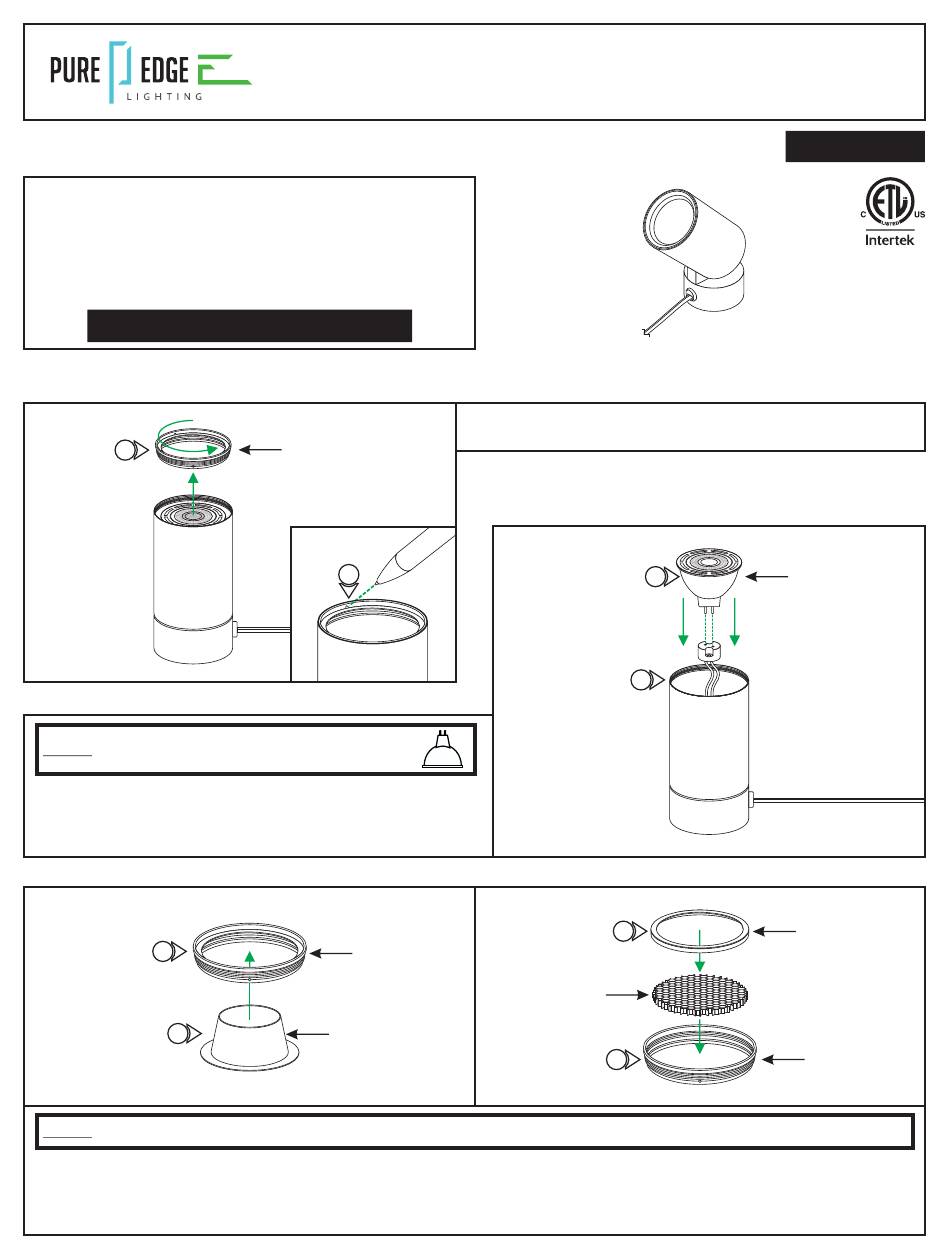

PureEdge Lighting Big Shorty Installation Instructions

Installation Instructions for Big Shorty
IMPORTANT INFORMATION
- This product is ETL listed.
- This instruction shows a typical installation.
- This product is suitable for dry locations.
- This product is dimmable with an ELV dimmer connected
to the outlet.
SAVE THESE INSTRUCTIONS!
Install the Fixture
A
1
MAX 9
NOTE: Use Watt Type MR16 LED lamp.
2: Align and completely install the LED MR16 lamp pins into the
socket holes.
3: Place the lamp properly inside the fixture.
C
4
4
NOTE: Omit steps 4 and 5 if not using an accessory.
4: To install the Snoot or Half Snoot, simply place the snoot behind the accessory holder.
5: Unsnap the retaining ring to install an Egg Crate Louver or a lens inside the lamp cover. Snap back the retaining ring to hold
the accessory in place.
ACCESSORY HOLDER
1
ACCESSORY
HOLDER
SNOOT
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
1: Insert a pin such as a pen into the lamp cover and rotate
counter-clockwise to remove the accessory holder.
B
2
3
5
EGG CRATE
LOUVER OR
LENS
5
Doc # 904-BSF_03
BSF-MR16-12V-__
LAMP
RETAINING
RING
LAMP COVER
