Summary of Contents for BENIFERRO zvzx1320

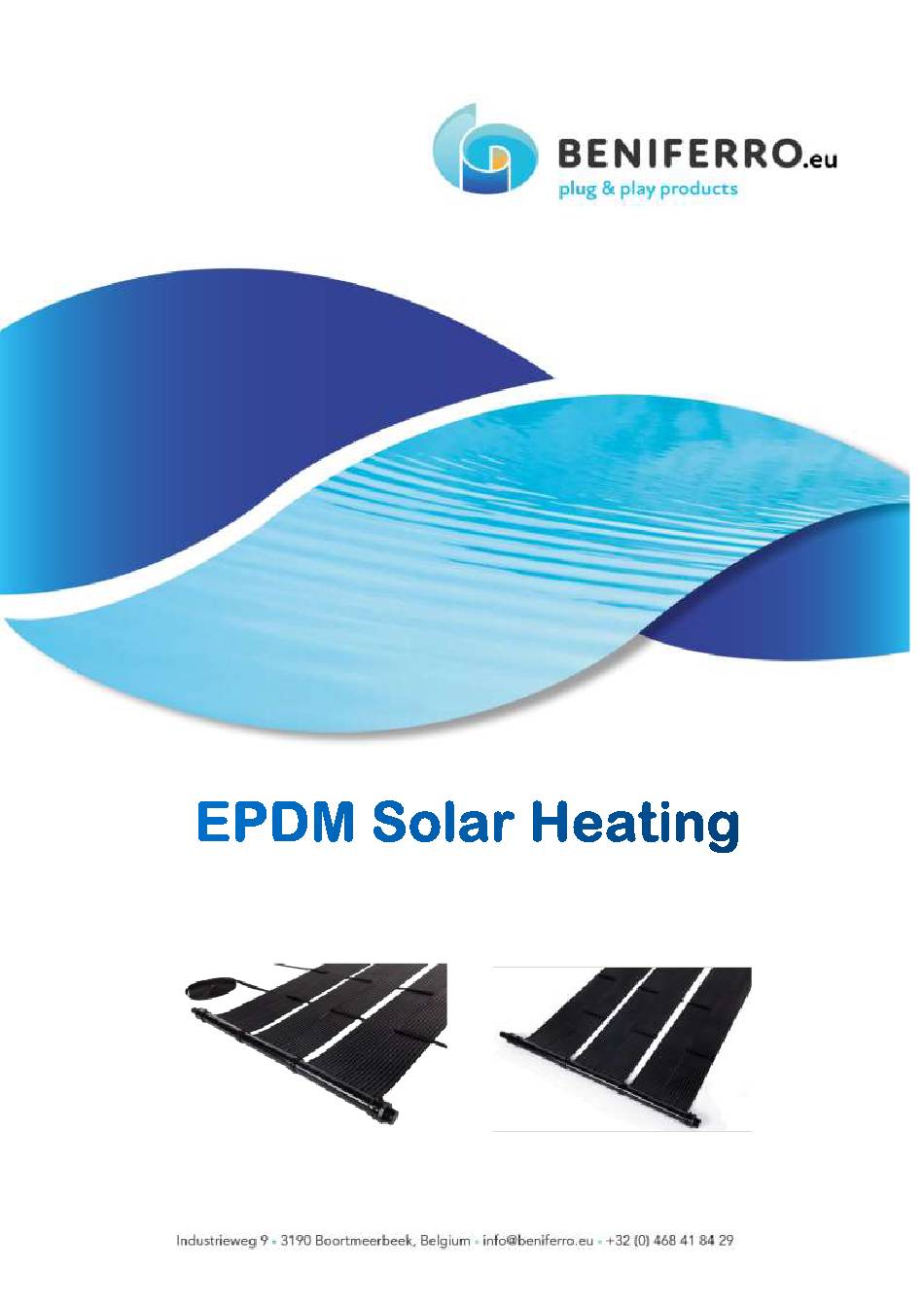

- Page 1 EPDM Solar Heating Full Manual...
-
Page 2: Table Of Contents
Contents Introduction ..........................3 Safety Instructions ........................3 Specifications ..........................4 Unpacking ..........................4 Product description ........................5 Installation ..........................6 Fastening the solar panels ......................8 Winterizing ..........................10 Automatic or manual 3-way valve ................... 10 Creating a separate circuit ....................... 11 Maintenance .......................... -
Page 3: Introduction
To install the EPDM solar heating, you must follow a number of steps: 1 Unpacking 2 Installation This manual contains information necessary for installation, troubleshooting and maintenance. Please read the entire manual on www.beniferro.eu before installing and commissioning the product. Safety Instructions General •... -
Page 4: Specifications
• Clean Components: Regularly clean and inspect solar collectors and other components to ensure optimal performance and prevent blockages. Specifications Internal code: zvzx1320 Efficiency In full sun, an area of 20m² of solar heating is equivalent to a 15 kW Comparison: heat pump. -
Page 5: Product Description
Product description The 33,33cm long collectors are made from ASA, which is more UV-resistant than ABS. Furthermore, the solar panels consist of tiny tubes made from EPDM rubber. EPDM rubber has several advantages compared to other materials: • Frost resistant •... -
Page 6: Installation
Since the entrance and exit are located diagonally from each other, the water will be heated in the most efficient manner. It is recommended to place the exit at a higher level than the entrance in order to push the bubbles out of the collector. In order to obtain the best results, the solar panels have to be located towards the south (45°... - Page 7 - Consider using an automated 3-way valve to bypass the solar heating if the roof temperature is lower than the pool water temperature. Refer to the connection diagram for details.
-
Page 8: Fastening The Solar Panels
6. Optional: Drill a hole in the sealing caps, so they can be easily emptied during the winter. The hole can be closed with a 1 ¼ cap inch thread [ZALX3010] (The 1 ¼ cap is not included). Fastening the solar panels With the nylon strap, the solar panels can be placed either horizontally or vertically. -
Page 9: Horizontal Placement
Horizontal placement It is also possible to assemble the straps underneath the roof tiles by connecting them to the slating battens with screws. In this case, one attachment per collector is needed. Collectors – placed horizontally EPDM Screw (Not included) Strap (1m) It is also possible to fasten the collectors with a concrete steel net. -
Page 10: Winterizing
As a result, the water will run or stop running through the collectors causing the water temperature to drop/increase. Using a manual valve is also possible, but the manual valve will be less effective than the automatic valve. A detailed manual of the valves can be found on www.beniferro.eu. -
Page 11: Creating A Separate Circuit
As a result, the water will run or stop running through the collectors causing the water temperature to drop/increase. Using a manual start-stop is also possible, but the manual operation will be less effective than the automatic valve. A detailed manual of the valves can be found on www.beniferro.eu. -
Page 12: Maintenance
• Additional Resources: For more detailed repair instructions, please visit our website at Beniferro.eu. There, you will find comprehensive guidance to help you through the repair process. For further information and in-depth troubleshooting, refer to the complete manual, which provides extensive details and additional support. - Page 13 Hole in EDPM Panel Hole made by Cut the tube where the hole (middle) 1. vermin is. At this spot, you can use 2. gnawing and pecking a repair nipple to attach the animals two tubes back together. 3. stepping on to it 4.
