Installation Instructions
PM014 Power Supply Module
Order Number: S3090-0617-62
This document describes how to remove an existing power supply module and install a new power
supply module in its place. Refer to Power Supply Module PM014 Installation, Operation, and
Troubleshooting Guide (BAS-SVX33-EN) for detailed information on this power supply module.
Remove the Existing Power Supply Module
Hazardous Voltage!
Power supply module PM014 contains hazardous voltage during normal operation. Do not open
the power supply module under any circumstances. Failure to comply could result in death or
serious injury.
1. De-energize the 24 Vac power source.
2. Disconnect pluggable terminal blocks and ribbon cables from the failed power supply module.
NOTICE
Avoid Equipment Damage!
Do not use excessive force. Excessive force could cause equipment damage.

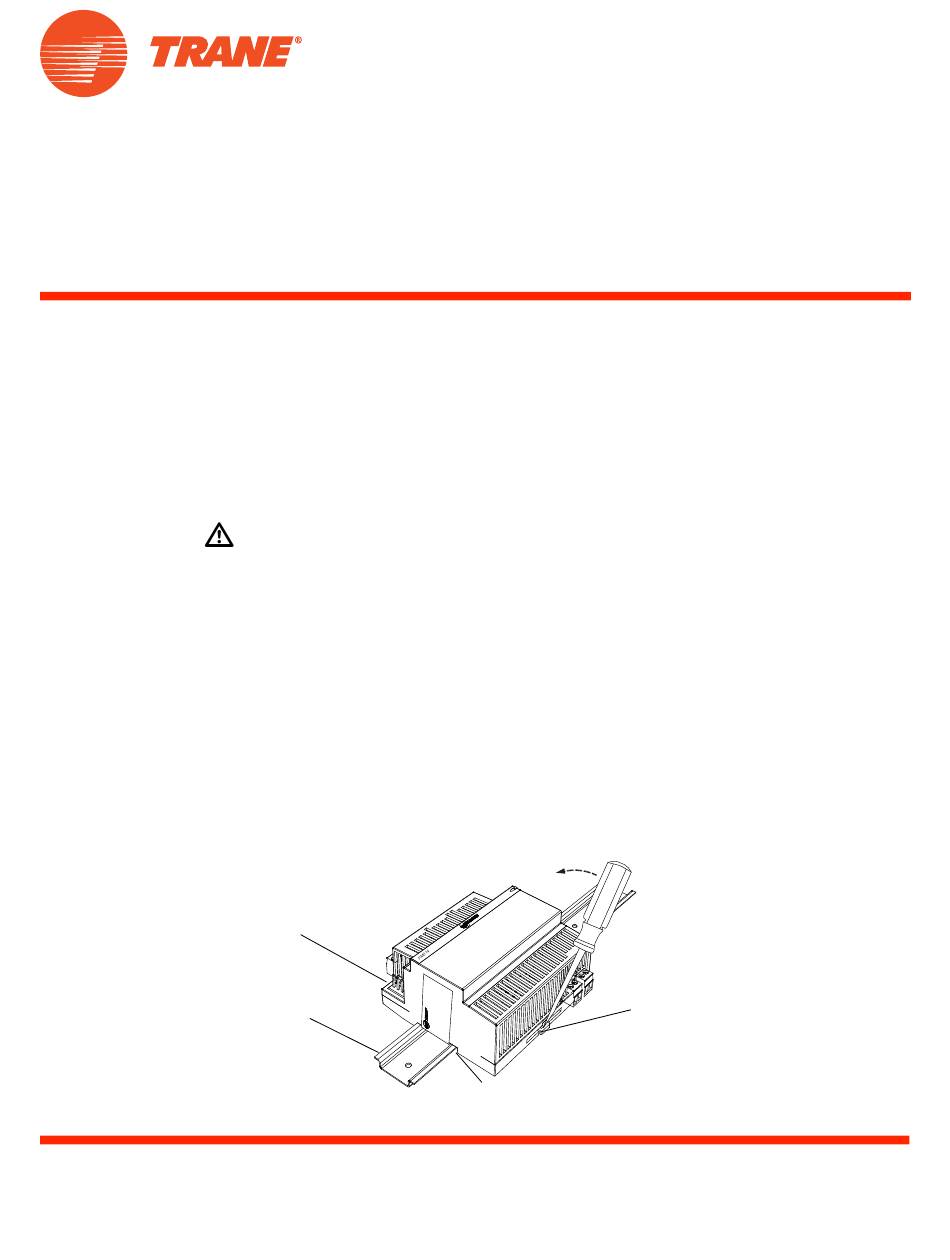

3. Insert a flat-head screwdriver into the DIN rail latch.
IMC pin connector
(two places)
June 2009
WARNING
DIN rail
© 2009 Trane. All rights reserved
DIN rail
latch
DIN rail groove
X39641149-01B
