mbj SL-0404 Operating Manual

Mechanical Integration
The light is equipped with 2x M4 threaded holes and 1x ¼"
threaded hole for various mounting options. They can be used to
fix the lighting to the specified position.

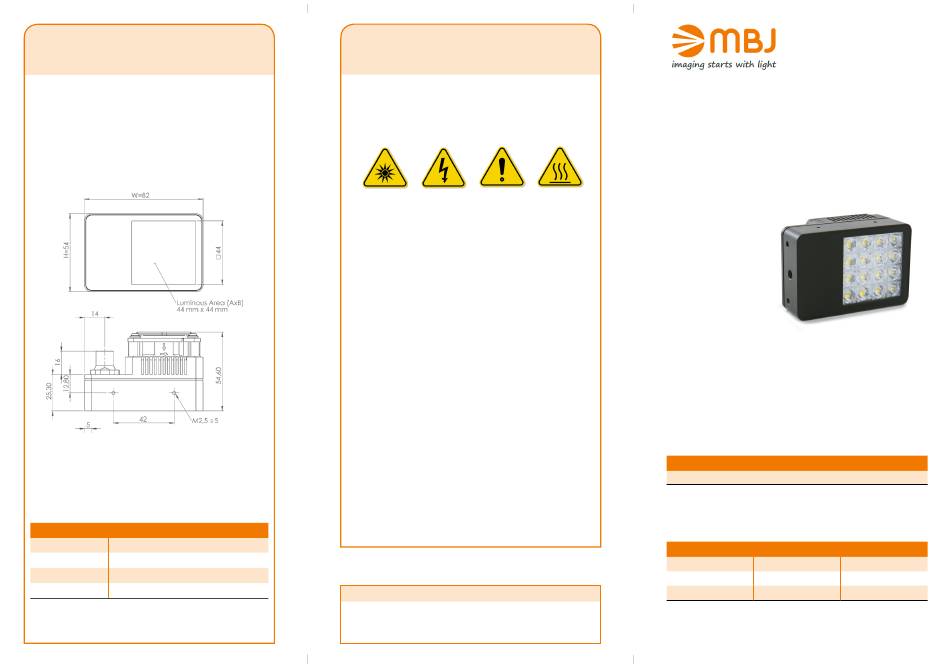

Example: Model Cooled Power Spotlight SL-0404
More 2D and 3D drawings can be found online:
www.mbj-imaging.com
Specification Cooled Power Spotlight
Operating temperature 10°C to 30°C / 45°C
Certifications CE, RoHS
Degree of protection IP20
Humidity 30 % to 70 %
1) Maximum of 30°C is recommended for steady light operation w/o additional
heat transfer measurements. For max. 45°C a good thermal connection is
mandatory. Max. of 45°C is also permissible for flash light operation with a
max. 10 % duty cycle.
Before working with this unit, read the warning and application
instructions carefully and completely before operating the device.
Have the illuminators commissioned only in compliance with the
specified protective measures. It is essential that you comply with the
permissible ambient conditions.
1. The device is designed for indoor use only.
2. Light – Due to the risk of flash burn of the eyes it is not recom-
mended to look directly into the light source. The lighting must be
switched off before installation and/or maintenance. The device
must not be used when a failure may cause a personal injury.
3. Heat – In case of insufficient heat dissipation or when running the
light in flash mode with a too high duty cycle, the surface tempera-
ture may get hot. Do not touch the product during operation or
immediately after it is turned off. Keep off flammable materials at
any time and allow for sufficient heat dissipation.
4. Electricity – The housing is electrically isolated from the ground
of the power supply. Exceeding the permissible input voltage U
or U can lead to the destruction of the device or to a significant
LED(+)
shortening of the lifetime of the LEDs in the device.
5. Usage – Please prevent mechanical stress to the light surface during
operation. This will lead to an inhomogeneous light emission.
6. Cleaning – The light emission surface has to be cleaned with a
standard glass cleaner and a soft cleaning cloth. Do not use other
material for cleaning as it will damage the device.
7. Installation – The service life of the LED can be maximized by
avoiding heat build-up. To achieve this, the lighting should be in-
stalled with a good thermal connection. Allow for sufficient air cir-
culation for the active cooling system.
1)
04360.00 Manual MBJ Cooled Power Spotlight, July 2024
Jochim-Klindt-Straße 7
22926 Ahrensburg, Germany
Safety Notes
in
MBJ Imaging GmbH
+49 4102 778 90 - 31
sales@mbj-imaging.com
www.mbj-imaging.com
Operating Manual
Technical Data
Cooled Power
Spotlight Series
Models and Sizes in Series
The light is available in the following models and sizes
Cooled Power Spotlight SL-0404
1) Size definition: Cooled Power Spotlight SL-0404 refers to a spotlight with a luminous
area of 44 mm x 44 mm.
Possible LED Colors
LED Abbr.
1)
White -WT
Red -RD
Infrared -IR
1) Color option will be added to the model name after the size information. Cooled
Power Spotlight SL-0404-RD refers to a Cooled Power Spotlight with 634 nm red light.
2) This is an approximated value. The exact value also depends on LED temperature
and LED current.
1)
Peak Wavelength
2)
5000 K, min. CRI70
near 634 nm
near 850 nm
