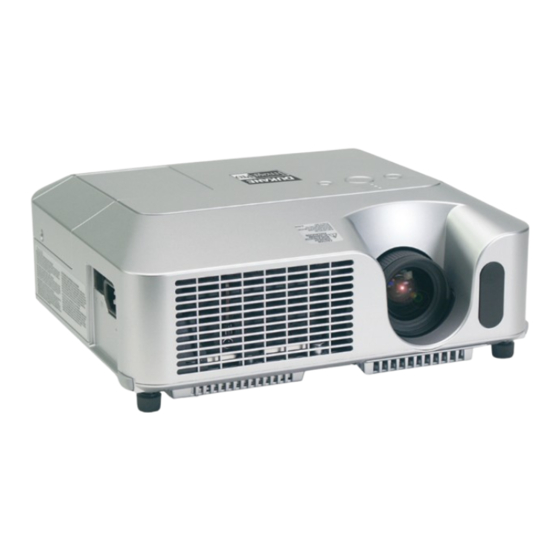

LCD Projector

Model 8776-W
USER'S MANUAL
Includes: Technical Information & Networking Operation
401-8776-W-00

Advertisement

Table of Contents
loading

Related Manuals for Dukane ImagePro 8776-W

Summary of Contents for Dukane ImagePro 8776-W

  • Page 1: Lcd Projector

    LCD Projector Model 8776-W USER’S MANUAL Includes: Technical Information & Networking Operation 401-8776-W-00...

  • Page 3: About This Manual

    Projector 8776-W User's Manual – Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, please read the "User's Manual - Safety Guide" and related manuals to ensure the proper use of this product. After reading them, store them in a safe place for future reference. About this manual Various symbols are used in this manual.

  • Page 4: Table Of Contents

    Content Content EASY Menu ....27 About this manual..1 Aspect, Auto keystone Execute, Content .

  • Page 5: Content

    Contents of package Contents of package VIDEO SEARCH ASPECT AUTO BLANK MAGNIFY HOME PAGE UP VOLUME () Projector PAGE DOWN MUTE FREEZE MY BUTTON KEYSTONE () Remote control POSITION MENU ENTER RESET with two AA batteries (3) Power cord (4) RGB cable (5) Audio/Video cable (6) Soft case (7) User’s manuals...

  • Page 6: Projector Features

    Projector features / Preparations Projector features This projector is used to project various computer signals as well as NTSC/PAL/ SECAM, Component (SD, HD) video signals onto a screen. It requires just a little space for installation and gets a large image from short distance. ...

  • Page 7: Part Names

    Part names Part names Projector ê Control buttons (7) Lamp cover (58) Remote sensor (18) (Lamp unit is inside.) Speaker Zoom ring (21) Security bar (11) Focus ring (21) (Use for attaching a commercial anti-theft chain or wire.) Vent Elevator button (10) Lens (19) Front-Right side Elevator foot (10)
  • Page 8 Part names Power switch (19) AC inlet (15) Elevator button (10) Ports (See below.) Elevator foot (10) Rear-Left side Vent AUDIO IN port (13) (In the default setting, the AUDIO IN port is the audio port for the RGB IN port, however, it is possible to AUDIO IN3 L/R port (14) change the settings.

  • Page 9: Control Buttons

    Part names Control buttons LAMP indicator (64, 65) TEMP indicator (64, 65) Cursor buttons ▲,▼,◄,► (26) POWER indicator (19) STANDBY/ON button (19) INPUT button (20) NOTE • INPUT button is function as ENTER key when the projector is in the PC-LESS presentation mode.

  • Page 10: Setting Up

    Setting up Setting up WARNING ►Place the projector in a stable position horizontally. A fall or a turnover could cause an injury and/or damage to the projector. Then using damaged projector could result in a fire and/or an electric shock. •...

  • Page 11: Arrangement

    Setting up Arrangement Refer to the illustrations and tables below to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen: 04×768 (a) The screen size (diagonal) (b) Distance from the projector to the screen (±0%) (c) The height of the screen (±0%) (c) up 6:9...

  • Page 12: Adjusting The Projector's Elevator

    Setting up Adjusting the projector's elevator CAUTION ►If you press the elevator button without holding the projector, the projector might crash down, overturn, smash your fingers and possibly result in malfunction. To prevent damaging the projector and injuring yourself, always hold the projector whenever using the elevator buttons to adjust the elevator feet.

  • Page 13: Using The Security Bar

    Setting up Using the Security Bar WARNING ►Do not use the security bar to prevent the projector from falling. Dropping or knocking over the projector may cause damage or injury. CAUTION ►The security bar is not a comprehensive theft prevention measure.

  • Page 14: Connecting Your Devices

    Setting up Connecting your devices CAUTION ►Turn off all devices prior to connecting them to the projector. Attempting to connect a live device to the projector may generate extremely loud noises or other abnormalities that may result in malfunction and/or damage to the device and/or projector.
  • Page 15 Setting up Examples of connection with a computer * In the default setting, the AUDIO IN port is the audio port for the RGB IN, and the AUDIO IN port is the audio port for the RGB IN ports. To change the settings, refer to the AUDIO item in the SETUP menu. (38) USB cable RGB cable SD CARD...
  • Page 16 Setting up Examples of connection with a VCR/DVD player * In the default setting, the AUDIO IN3 L/R port is the audio port for the VIDEO, S-VIDEO and COMPONENT VIDEO ports. To change the settings, refer to the AUDIO item in the SETUP menu.

  • Page 17: Connecting Power Supply

    Setting up Connecting power supply WARNING ►Please use extra caution when connecting the power cord, as incorrect or faulty connections may result in fire and/or electrical shock. • Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one.

  • Page 18: Inserting An Sd Card And Usb Memory

    Setting up Inserting an SD Card and USB Memory When using the projector with a wireless LAN please insert the included Wireless Network Card. When using a commercial SD Memory card in order to view images insert the SD Memory card in the same manner. And when using a commercial USB MEMORY in order to view images insert the USB MEMORY to the AUX I/O port.

  • Page 19: Remote Control

    Remote control Remote control Putting batteries WARNING ►Always handle the batteries with care and use them only as directed. Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire. And also improper use may result in cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.

  • Page 20: Using The Remote Control

    Remote control Using the remote control CAUTION ►Be careful in handling the remote control. • Do not drop or expose the remote control to physical impact. • Do not get the remote control wet or place it on wet objects. It may result in malfunction.

  • Page 21: Power On/Off

    Power on/off Power on/off WARNING ►When the power is on, a strong light is emitted. Do not look into the lens of projector. Also do not peep at the inside of projector through a hole. NOTE • Turn the power on/off in right order. Please power on the projector prior to the connected devices.

  • Page 22: Operating

    Operating Operating Adjusting the volume Press the VOLUME button on the remote control. A dialog will appear on the screen to aid you in adjusting the volume. SEARCH VIDEO BLANK Use the cursor buttons ▲/▼ to adjust the volume. ASPECT AUTO MAGNIFY To close the dialog and complete the operation, press the...

  • Page 23: Searching An Input Signal

    Operating Selecting an input signal (continued) Press the VIDEO button on the remote control to select an input for video signal. SEARCH VIDEO Each time you press the button, the projector switches its ASPECT AUTO BLANK video input port as below. MAGNIFY HOME PAGE UP...

  • Page 24: Using The Automatic Adjustment Feature

    Operating Using the automatic adjustment feature Press the AUTO button on the remote control. SEARCH VIDEO  For an RGB signal ASPECT AUTO BLANK The vertical position, the horizontal position, the horizontal MAGNIFY phase and the horizontal size will be automatically adjusted. HOME PAGE UP VOLUME...

  • Page 25: Correcting The Keystone Distortions

    Operating SEARCH VIDEO Correcting the keystone distortions ASPECT AUTO BLANK Press the KEYSTONE button on the MAGNIFY PAGE UP HOME VOLUME remote control. A dialog will appear on the PAGE DOWN MUTE screen to aid you in correcting the distortion. FREEZE MY BUTTON KEYSTONE...

  • Page 26: Freezing The Screen

    Operating VIDEO SEARCH Freezing the screen ASPECT AUTO BLANK Press the FREEZE button on the remote control. MAGNIFY PAGE UP VOLUME HOME The “FREEZE” indication will appear on the screen, and the PAGE DOWN MUTE projector will enter the FREEZE mode. FREEZE MY BUTTON KEYSTONE...

  • Page 27: Operating The Computer Screen

    Operating Operating the computer screen CAUTION ►Mistaken use of the mouse/keyboard control could damage your equipment. • While using this function, please connect only with a computer. • Before connecting, read the manuals of the computer you will connect. NOTE • It may not be possible to control notebook PC, and other computers with built-in pointing device (e.g.

  • Page 28: Multifunctional Settings

    Multifunctional settings Multifunctional settings Using the menu function VIDEO SEARCH This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, SCREEN, ASPECT AUTO BLANK OPTION, MIU, and EASY MENU. EASY MENU consists of functions often used, and MAGNIFY PAGE UP VOLUME HOME the other menus are classified into each purpose.

  • Page 29: Easy Menu

    EASY Menu EASY Menu With the EASY MENU, items shown in the table below can be performed. Select an item using the cursor buttons ▲/▼ on the projector or remote control. Then perform it referring to the following table. Item Description Using the buttons ◄/►...
  • Page 30 EASY Menu EASY Menu (continued) Item Description Using the buttons ◄/► adjusts the contrast. CONTRAST See the CONTRAST item in the PICTURE menu (29). Using the buttons ◄/► adjusts the strength of whole color. COLOR See the COLOR item in the PICTURE menu (30). Using the buttons ◄/►...

  • Page 31: Picture Menu

    PICTURE Menu PICTURE Menu With the PICTURE menu, the items shown in the table below can be performed. Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to execute the item.
  • Page 32 PICTURE Menu PICTURE Menu (continued) Item Description Using the buttons ▲/▼ switches the mode of color temperature. HIGH DEFAULT � HIGH CUSTOM � MID DEFAULT � MID CUSTOM LOW DEFAULT � LOW CUSTOM � Hi-BRIGHT-1 DEFAULT � Hi-BRIGHT-1 CUSTOM Hi-BRIGHT-2 DEFAULT � Hi-BRIGHT-2 CUSTOM To adjust CUSTOM Selecting the CUSTOM and then pressing the ENTER :...

  • Page 33: My Memory

    PICTURE Menu PICTURE Menu (continued) Item Description Selecting a mode of MY MEMORY using the buttons ▲/▼ and then pressing the button ► or the ENTER button performs each function. LOAD ó LOAD ó LOAD3 ó LOAD4 SAVE4 óSAVE3 ó SAVE ó SAVE This projector has 4 numbered memories for adjustment data.

  • Page 34: Image Menu

    IMAGE Menu IMAGE Menu With the IMAGE menu, items shown in the table below can be performed. Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to execute the item.
  • Page 35 IMAGE Menu IMAGE Menu (continued) Item Description Using the buttons ▲/▼ adjusts the horizontal size. Large ó Small • This item can be selected only for an RGB signal. H SIZE • When this adjustment is excessive, the picture may not be displayed correctly.

  • Page 36: Input Menu

    INPUT Menu INPUT Menu With the INPUT menu, the items shown in the table below can be performed. Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to execute the item.
  • Page 37 INPUT Menu INPUT Menu (continued) Item Description Using the buttons ▲/▼ switches the function of COMPONENT VIDEO port. COMPONENT ó SCART RGB When the SCART RGB is selected, the COMPONENT VIDEO port COMPONENT function as a port for a SCART RGB signal input and VIDEO port function as a port for SCART RGB sync input.
  • Page 38 INPUT Menu INPUT Menu (continued) Item Description The resolution for the RGB and RGB input signals can be set on this projector. (1) In the INPUT menu select RESOLUTION using the ▲/▼ buttons and press the ► button. The RESOLUTION menu will be displayed. () In the RESOLUTION menu select the resolution you wish to display using the ▲/▼...

  • Page 39: Setup Menu

    SETUP Menu SETUP Menu With the SETUP menu, the items shown in the table below can be performed. Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to execute the item.
  • Page 40 SETUP Menu SETUP Menu (continued) Item Description Using the buttons ▲/▼ switches the mode for mirror status. NORMAL ó H:INVERT ó V:INVERT ó H&V:INVERT MIRROR If Transition Detector is TURN ON and MIRROR status is changed, Transition Detector Alarm (50) will be displayed when projector is restarted after the power switch is turned off.

  • Page 41: Screen Menu

    SCREEN Menu SCREEN Menu With the SCREEN menu, the items shown in the table below can be performed. Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to execute the item.
  • Page 42 SCREEN Menu SCREEN Menu (continued) Item Description Using the buttons ▲/▼ switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected. MyScreen ó ORIGINAL ó TURN OFF MyScreen is a screen you can register as a desired screen.The ORIGINAL screen is the existing standard screen.
  • Page 43 SCREEN Menu SCREEN Menu (continued) Item Description Using the buttons ▲/▼ turns on/off the message function. TURN ON ó TURN OFF When the TURN ON is selected, the following message function works. “AUTO IN PROGRESS” while automatically adjusting ”NO INPUT IS DETECTED” ”SYNC IS OUT OF RANGE”...

  • Page 44: Option Menu

    OPTION Menu OPTION Menu With the OPTION menu, the items shown in the table below can be performed. Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to execute the item, except for the items LAMP TIME and FILTER TIME.
  • Page 45 OPTION Menu OPTION Menu (continued) Item Description Using the buttons ▲/▼ adjusts the time to count down to automatically turn the projector off. Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE) AUTO OFF AUTO OFF ENABLE DISABLE When the time is set to 0, the projector is not turned off automatically.
  • Page 46 OPTION Menu OPTION Menu (continued) Item Description Selecting this item displays the SERVICE menu. Select an item using the buttons ▲/▼, and press the button ► or the ENTER button on the remote control to execute the item. FAN SPEED ó AUTO ADJUST ó GHOST ó FILTER MESSAGE ó KEY LOCK FACTORY RESET ó...
  • Page 47 OPTION Menu OPTION Menu (continued) Item Description REMOTE FREQ. Use the ▲/▼ button to change the Projector's remote sensor setting (18). :NORMAL ó :HIGH Items with a checkmark are on. The factory default setting is for both :NORMAL and :HIGH to be on. If the remote control does not function correctly set the this to either only  or only  as described in Remote Control Settings (18).
  • Page 48 OPTION Menu OPTION Menu (continued) Item Description This projector is equipped with security functions. User registration is required before using the security functions. Please contact your local dealer. 1. Using Security Features 1.1 Inputting the PASSWORD 1.1-1 Use the ▲/▼ buttons on the OPTION menu to select SECURITY and press the ►...

  • Page 49: Using The Myscreen Password Function

    OPTION Menu OPTION Menu (continued) Item Description 1.3 If you have forgotten your PASSWORD .3- Follow the procedure in .- to display the ENTER PASSWORD BOX. .3- While the ENTER PASSWORD BOX is displayed, press and hold the RESET button on the remote control for about 3 seconds or press and hold the INPUT and ►...

  • Page 50: Using The Pin Lock Function

    OPTION Menu OPTION Menu (continued) Item Description .-4 Move the cursor to the right side of the CHECK PASSWORD BOX and press the ► button to display the PASSWORD for about 0 seconds, please make note of the PASSWORD during this time.
  • Page 51 OPTION Menu OPTION Menu (continued) Item Description 3.1-3 Input a 4 part PIN Code using the ▲/▼/◄/► /RGB and INPUT buttons. A CONFIRMATION BOX will appear. Reenter the same PIN Code. This will complete the PIN Code registration. PIN BOX NOTE: If there is no key input for about 55 seconds while the PIN BOX or the CONFIRMATION BOX are displayed the menu will close.

  • Page 52: Using The Transition Detector Function

    OPTION Menu OPTION Menu (continued) Item Description 4. Using the Transition Detector Function While the Transition Detector function is ON, when power switch is started to supply to the projector, it might react as below. • Transition Detector alarm shown below might appear on screen, if the projector has been moved or re-installed.
  • Page 53 OPTION Menu OPTION Menu (continued) Item Description 4.3 Setting the Transition Detector off 4.3- Follow the procedure in 4.- to display the Transition Detector on/off menu. 4.3- Select TURN OFF to display the ENTER PASSWORD BOX (large). Enter the registered PASSWORD and the screen will return to the Transition Detector on/off menu.

  • Page 54: Miu Menu

    MIU Menu MIU Menu Select [MIU] from the main menu to access the following functions. NOTE • The factory default setting for DHCP is “TURN OFF”. If your network has DHCP enabled , and need to set [IP ADDRESS], [SUBNET MASK] and [DEFAULT GATEWAY] automatically, please set [DHCP] to “TURN ON”.
  • Page 55 MIU Menu MIU Menu (continued) Item Operation e-SHOT display : Use the ▲/▼ buttons to select an item and the ► or ENTER buttons to display the image. Image Image Image3 Image4 File names of registered images are displayed by 6 characters or less. Example: DEMONSTRATION-0 Once an image is displayed, you can use the ▲/▼...
  • Page 56 MIU Menu MIU Menu (continued) Item Description IP ADDRESS Input the IP ADDRESS : Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function is available as long as DHCP is set to “TURN OFF”. ~Note~ IP ADDRESS is a number which identifies this projector on the network.
  • Page 57 MIU Menu MIU Menu (continued) Item Description MODE Select the communication connection control method to use between the PC and projector. Match to your PC’s settings. Use the ▲/▼ buttons to select the MODE to be used. ADHOC ó INFRASTRUCTURE Select the channel when using a wireless LAN connection.
  • Page 58 MIU Menu MIU Menu (continued) Item Description INFORMATION display : Use the ► or ENTER buttons to view network information and confirm settings. See [INFORMATION] in [User’s Manual] – Network Functions] for more information. ~Note~ • Only the first 16 characters of the projector name are displayed. •...

  • Page 59: Maintenance

    Maintenance Maintenance Lamp WARNING HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.
  • Page 60 Maintenance Lamp (continued) A lamp has a finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.

  • Page 61: Air Filter

    Maintenance Air filter WARNING ►Before caring, make sure the power switch is off and the power cable is not plugged in, then allow the projector to cool sufficiently. The care in a high temperature state of the projector could cause an electric shock, a burn and/or malfunction to the projector.
  • Page 62 Maintenance Air filter (continued) Apply a vacuum cleaner to the air filter and the filter cover. Please replace the air filter when it is damaged or too soiled. Replace the air filter in its original position. Secure the air filter in place by pressing each of the six locations.

  • Page 63: Replacing Internal Clock Battery

    Maintenance Replacing Internal Clock battery Consumption of the battery makes the clock not to work correctly. When the clock is wrong or it has stopped, please replace the battery according to the following procedures. WARNING ►Always handle the batteries with care and use them only as directed. Battery may explode if mistreated.

  • Page 64: Other Care

    Maintenance Other care WARNING ►Before caring, make sure the power switch is off and the power cable is not plugged in, and then allow the projector to cool sufficiently. The care in a high temperature state of the projector could cause a burn and/or malfunction to the projector.

  • Page 65: Troubleshooting

    Troubleshooting Troubleshooting Related messages When the unit's power is on, messages such as those shown below may be displayed. When any such message is displayed on the screen, please follow the instructions described below. If the same message is displayed after the remedy, or if a message other than the following appears, please contact your dealer or service company.

  • Page 66: Regarding The Indicator Lamps

    Troubleshooting Regarding the indicator lamps Lighting and flashing of the POWER indicator, the LAMP indicator, and the TEMP indicator have the meanings as described in the table below. Please follow the instructions within the table. If the same indication is displayed after the remedy, or if an indication other than the following is displayed, please contact your dealer or service company.
  • Page 67 Troubleshooting Regarding the indicator lamps (continued) POWER LAMP TEMP Description indicator indicator indicator The cooling fan is not operating. Please turn the power off, and allow the projector to Blinking cool down at least 0 minutes. After the projector has Turned sufficiently cooled down, please make confirmation Blinking...

  • Page 68: Phenomena That May Be Easy To Be Mistaken For Machine Defects

    Troubleshooting Phenomena that may be easy to be mistaken for machine defects WARNING ►Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately turn off the power switch and then disconnect the power plug from the power outlet.
  • Page 69 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The signal cables are not correctly connected. 3, 4 Correctly connect the audio cables. The MUTE function is working. Restore the sound pressing the MUTE or VOLUME button on the remote control.
  • Page 70 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The brightness and/or contrast are adjusted to an extremely low level. 7, 8 Adjust BRIGHTNESS and/or CONTRAST settings to a higher level using the menu function.

  • Page 71: Warranty And After-Service

    Warranty And After-Service Warranty and after-service If a problem occurs with the equipment, first refer to the “Troubleshooting” and run through the suggested checks. If this does not resolve the problem, please contact your dealer or service company. They will tell you what warranty condition is applied. Specifications Specifications NOTE •...
  • Page 72 Specifications Specifications (continued) 306 mm...
  • Page 73 8776-W...
  • Page 91 Projector 8776-W User’s Manual – Network Functions Section This section is only intended to explain Network Functions. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual.
  • Page 92 Contents Contents  Caution …………………………………………………………………………………… 3 1. Main Functions ……………………………………………………………………… 5 1.1 Live Mode ………………………………………………………………………… 5 1.2 PC-LESS Presentation ………………………………………………………… 6 2. Equipment connection and network setting …………………………… 8 2.1 Required equipment preparation ……………………………………………… 8 2.2 Network connection using “One-Click-Communication” function ……………………………………………………………………………...

  • Page 93: Caution

    Caution Caution [Restriction in terms of inserts or pulls memory card and wireless LAN card] Do not pull out the memory card and the wireless card while the power is on. The memory card can be pulled out only while the card access LED (Red) is off. CAUTION n T he accompanying 802.11g wireless LAN card uses the 2.4GHz radio frequency band.

  • Page 95: Main Functions

    1. Main functions 1. Main functions 1.1 Live Mode (Project images from PC) The main function of MIU (Multi Information processing Unit) is the Live Mode. On Live Mode, the projector displays the screen appearing on the PC via network, supported by “MIU Live Viewer”...

  • Page 96: Pc-Less Presentation

    1. Main functions 1.2 PC-LESS Presentation (Display the images stored in SD card/USB memory.) Other main function is “PC-LESS Presentation”. (Fig. 1.2.a) “PC-LESS Presentation” has 4 kinds of display modes. 1) Thumbnail display: Display many stored images in SD card and USB memory at once.
  • Page 97 1. Main functions 1.2 PC-LESS Presentation (Display the images stored in SD card/USB memory.) (Continued) Fig. 1.2.b Remote Control NOTE • There are following limitations for file name and directory name in PC-LESS Presentation. (1) The projector's language setting is Japanese. Only alpha-numeric characters and Japanese are supported.

  • Page 98: Required Equipment Preparation

    2. Equipment connection and network setting 2. Equipment connection and network setting 2.1 Required equipment preparation Followings are required for 1 projector and 1 PC connection. Multiple PC connection is described in section 4.1. Projector: 1 unit PC: 1 set (“MIU Live Viewer” installation is required for “MIU Live Viewer” usage.) IEEE802.g wireless LAN equipment is required.
  • Page 99 2. Equipment connection and network setting 2.2 Network connection using “One-Click-Communication” function (Continued) wSelect the MIU menu by using ▲/▼ button. ePress the Reset key on remote control. Then Reset Menu will be displayed. rPress the ▲ button to reset the Network settings. NOTE •...

  • Page 100: Manual Network Connection Setting – Wired Lan

    2. Equipment connection and network setting 2.2 Network connection using “One-Click-Communication” function (Continued) 4) Click “One-Click” button in fig. 2.2.a. Projector is found. Then capture start button is pushed and real time display is started automatically. [Wireless LAN connection] 1) When projector network settings such as IP address and subnet mask are changed, need to return to the projector factory default settings.

  • Page 101: Network Settings

    2. Equipment connection and network setting 2.3 Manual network connection setting – In case of wired LAN - (Continued) 2.3.2. Network settings This is the explanation of network connection settings for Windows XP and Internet Explorer. 1) Log on to Windows XP as administrator authority. (*) 2) Open “Control Panel”...
  • Page 102 2. Equipment connection and network setting 2.3 Manual network connection setting – In case of wired LAN - (Continued) 5) When more than 2 usable network devices exist, make only one device “valid” that you want to use and the rest of devices “invalid”. (In this case, “Local Area Connection”...
  • Page 103 2. Equipment connection and network setting 2.3 Manual network connection setting – In case of wired LAN - (Continued) [About IP address] Network address portion of PC IP address should be common with projector’s one but the PC total IP address should not be overlapped with other networked equipments.

  • Page 104: Internet Option" Setting

    2. Equipment connection and network setting 2.3 Manual network connection setting – In case of wired LAN - (Continued) 2.3.3 “Internet Option” setting 1) Click “Internet Options” in “Network and Internet Connections” window (Fig. 2.3.3.a) to open “Internet Properties” window. (Fig. 2.3.3.b) Click Fig.

  • Page 105: Check Connection

    2. Equipment connection and network setting 2.3 Manual network connection setting – In case of wired LAN - (Continued) Fig. 2.3.3.c “Local Area Network (LAN) Settings” window 3) Uncheck all boxes in “Local Area Network (LAN) Settings” window. (Fig. 2.3.3.c) 2.3.4 Check connection Check PC and projector are connected properly here.

  • Page 106: Manual Network Connection Setting – For Wireless Lan

    2. Equipment connection and network setting 2.4 Manual network connection setting – For wireless LAN By installing SD-Link11g card, PC and wireless LAN are able to communicate in both Ad-Hoc and Infrastructure modes. How to set up wireless LAN connection manually. 2.4.1 Preparation for wireless LAN connection Fig.

  • Page 107: Wireless Lan Connection Set Up

    2. Equipment connection and network setting 2.4 Manual network connection setting – For wireless LAN (Continued) 2.4.2 Wireless LAN connection set up Using wireless LAN utility for Windows XP standard. Wireless LAN initial settings for the projector is as follows. Connection Control : Ad-Hoc SSID...
  • Page 108 2. Equipment connection and network setting 2.4 Manual network connection setting – For wireless LAN (Continued) 4) Set used protocol as “TCP/IP” and open TCP/IP property. Set IP address and other settings as same as wired LAN connection set up. (12) 5) Open “Wireless Networks”...

  • Page 109: Configuring And Controlling The Projector Via A Web Browser

    2. Equipment connection and network setting 2.4 Manual network connection setting – For wireless LAN (Continued) 8) Set each item as follows. Network name (SSID): wireless Data encryption: Invalid (Default setting is invalid.) * This explanation meets the projector default setting. If access point is used or data encryption is used, if needs to change settings properly.
  • Page 110 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) When configuring or controlling the projector via a web browser, an ID and password are required. There are two types of IDs, Administrator IDs and User IDs.
  • Page 111 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) Refer to the following for configuring or controlling the projector via a web browser. Example: If the IP address of the projector is set to 192.168.1.10: 1) Enter [http://192.168.1.10/] into the address bar of the web browser and the screen...

  • Page 112: Network Information

    2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.1 Network Information All screen images displayed in this manual are screens of a logon using an administrator ID. Any administrator only functions will not be displayed when using a user ID.
  • Page 113 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.2 Network Settings Displays and configures network settings. Item Description NETWORK MODE Select Network mode "wired" or "wireless". IP Configuration Configures network settings. DHCP ON Enables DHCP.
  • Page 114 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.2 Network Settings (Continued) Item Description Wireless Mode Mode Select "AD-HOC" or "Infrastructure". Select using channel between "1" and "11". NOTE • Depending on the country where you are the channels may vary.

  • Page 115: Port Settings

    2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.3 Port Settings Displays and configures communication port settings. Item Description Network Control Port1 Configures command control port 1 (Port:23). (Port:23) Port open Click the [Enable] check box to use port 23.

  • Page 116: Mail Settings

    2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.4 Mail Settings Displays and configures e-mail addressing settings. Item Description Click the [Enable] check box to use the e-mail function. Send Mail Configure the conditions for sending email under [Alert Settings].

  • Page 117: Alert Settings

    2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.5 Alert Settings Displays and configures failure & warning alerts. Item Description Cover Error Configures Cover Error alert settings. Click the [Enable] check box to enable SNMP Trap alerts for SNMP Trap this item.
  • Page 118 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.5 Alert Settings (Continued) Item Description Lamp Error Configures Lamp Error alert settings. Click the [Enable] check box to enable SNMP Trap alerts for SNMP Trap this item.
  • Page 119 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.5 Alert Settings (Continued) Item Description Lamp Time Error Configures Lamp Time Error alert settings. Click the [Enable] check box to enable SNMP Trap alerts for SNMP Trap this item.
  • Page 120 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.5 Alert Settings (Continued) Item Description Other Error Configures Other Error alert settings. Click the [Enable] check box to enable SNMP Trap alerts for SNMP Trap this item.
  • Page 121 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.5 Alert Settings (Continued) Item Description Filter Time Alarm Configures Filter Time Alarm alert settings. Alarm Time Configures the filter time to alert. Click the [Enable] check box to enable SNMP Trap alerts for SNMP Trap this item.

  • Page 122: Schedule Settings

    2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.6 Schedule Settings Displays and configures schedule settings. Item Description Daily Configures the daily schedule. Schedule Click the [Enable] check box to enable daily scheduling. Schedule List Displays the current daily schedule.
  • Page 123 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.6 Schedule Setting (Continued) Item Description Specific date No1 Configures the specific date (No.1) schedule. Click the [Enable] check box to enable specific date (No.1) Schedule scheduling.

  • Page 124: Date/Time Settings

    2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.6 Schedule Setting (Continued) To add additional functions and events click the [Add] button and set the following items. Item Description Time Configures the time to execute commands. Command Configures the commands to be executed.
  • Page 125 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.7 Date/Time Settings (Continued) Item Description Click the [ON] check box to enable daylight savings time and Daylight Savings Time set the following items. Start Configures the date and time daylight savings time begins.

  • Page 126: Security Settings

    2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.8 Security Settings Displays and configures passwords and other security settings. Item Description Administrator authority Configures the Administrator ID and Password. Configures the Administrator ID. Administrator ID The length of the text can be up to 32 alphanumeric characters.
  • Page 127 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.8 Security Settings (Continued) Item Description Configures the Authentication Password for the command Network Control control. Configures the Authentication Password. Authentication The length of the text can be up to 16 alphanumeric Password characters.

  • Page 128: Projector Control

    2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.9 Projector Control The items shown in the table below can be performed using the [Projector Control] menu. Select an item using the up and down arrow keys on the PC.
  • Page 129 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.9 Projector Control (Continued) Item Description Image Aspect Selects the Aspect setting. Over Scan Selects the Over Scan setting. V Position Adjusts the V Position. H Position Adjusts the H Position.
  • Page 130 2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.9 Projector Control (Continued) Item Description Audio Volume Adjusts the Volume setting. Treble Adjust the Treble setting. Bass Adjusts the Bass setting. SRS WOW Selects the SRS WOW setting.

  • Page 131: Logoff

    2. Equipment connection and network setting 2.5 Configuring and controlling the projector via a web browser (Continued) 2.5.10 Projector Status Displays and configures the current projector status. Item Description Error Status Displays the current error status Lamp Time Displays the usage time for the current lamp. Filter Time Displays the usage time for the current filter.

  • Page 132: Utilize Web Remote Control

    2. Equipment connection and network setting 2.6 Utilize Web Remote Control You can use your Web browser to remote control the projector once the projector is properly configured and connected to your PC via the wireless LAN card or via wired LAN.
  • Page 133 2. Equipment connection and network setting 2.6 Utilize Web Remote Control (Continued) Click “Remote Control” in this window to display Web Remote Control as shown in fig.2.6.b. The same operation as the bundled remote control will done. UP/LEFT/RIGHT/DOWN corresponds to ▲/◄/►/▼ respectively.

  • Page 134: How To Use "Miu Live Viewer

    3. How to use Projector software – Basics - 3. How to use Projector software – Basics - 3.1 How to use “MIU Live Viewer” This section explains how to use the “MIU Live Viewer”. 3.1.1. Install “MIU Live Viewer” In order to use the projector with a PC for Live Mode, you will first need to install the accompanying software on all the PCs you will be using.

  • Page 135: Software Installation Procedure

    3. How to use Projector software – Basics - 3.1 How to use “MIU Live Viewer” (Continued) 3.1.2. Software Installation Procedure 1) Turn on the PC. 2) Shut down all applications. 3) Insert the accompanying CD-ROM into the PC's CD-ROM drive. 4) After a moment, the Welcome to MIU Utilities Setup dialog will appear as shown on the right.

  • Page 136: Explanation Of "Miu Live Viewer

    3. How to use Projector software – Basics - 3.1 How to use “MIU Live Viewer” (Continued) 8) The Hardware Installation dialog appears. Press Continue Anyway. 9) After a moment, installation will complete and the Setup Complete dialog will appear as shown on the right.
  • Page 137 3. How to use Projector software – Basics - 3.1 How to use “MIU MIU Live Viewer” (Continued) [“MIU Live Viewer” window: Fig. 3.1.3.a] 1) “File” button Display file menu. 2) “Help” button Display “MIU Live Viewer” information. 3) Stop button Disconnect projector connection.
  • Page 138 3. How to use Projector software – Basics - 3.1 How to use “MIU Live Viewer” (Continued) [“Options” window] [“General” tab, Fig. 3.1.3.b] Fig.3.1.3.b “Options”, “General” tab 1) CPU Share Set up any capturing performance on the PC screen by using control bar Low (At the far left): Set this position when many CPU resources are required by applications other than “MIU Live Viewer”.
  • Page 139 3. How to use Projector software – Basics - 3.1 How to use “MIU Live Viewer” (Continued) [JPEG tab] Fig. 3.1.3.c “Options”, “JPEG” tab 1) JPEG Quality When “MIU Live Viewer” is used, it captures PC screen image. Then that is compressed as JPEG and sent to projector.

  • Page 140: Utilize "Miu Live Viewer" - Basic

    3. How to use Projector software – Basics - 3.1.4 Utilize “MIU Live Viewer” – Basic - This section explains basic of how to use “MIU Live Viewer” functions. • Before start up the MIU Live Viewer, you have to set the projector into LIVE MODE by either of following way.
  • Page 141 3. How to use Projector software – Basics - 3.1 How to use “MIU Live Viewer” (Continued) 2) Start Web Remote Control (refer to 2.6 Utilize Web Remote Control), and click “LIVE MODE” button on Web Remote Control to change projector mode to “MIU Live Viewer”.

  • Page 142: Utilize "Pc-Less Presentation" – Basic

    3. How to use Projector software – Basics - 3.1 How to use “MIU Live Viewer” (Continued) (3) Click Capture start button. Fig. 3.1.4.d Start capturing Based on the above operation, if captured picture of PC screen is displayed real time on monitor connected with projector, it is succeeded.
  • Page 143 3. How to use Projector software – Basics - 3.2 Utilize “PC-LESS Presentation” –Basic - (Continued) If thumbnail appears by above operation, it is succeeded. (Fig.3.2.a) This is basic usage. There are varieties of usage for “PC-LESS Presentation”. Refer to section 4.2 for further detailed explanation.

  • Page 144: Utilize "Miu Live Viewer" – Advanced

    4. Utilize projector – Advanced - 4. Utilize projector – Advanced - 4.1. Utilize “MIU Live Viewer” – Advanced - This section explains how to connect multiple PCs. 4.1.1. Connect multiple PCs with one projector (Multiple PCs connection) A projector can be connected with up to 4 PCs to display multiple windows. Fig.
  • Page 145 4. Utilize projector – Advanced - 4.1. Utilize “MIU Live Viewer” – Advanced - (Continued) [Connection] 1) Connect all PCs and projector using LAN cables and hub as shown in fig. 4.1.1.a. Connect projector and output monitor with RGB cable. 2) Start up “MIU Live Viewer”...

  • Page 146: Utilize "Pc-Less Presentation" - Advanced

    4. Utilize projector – Advanced - 4.2 Utilize “PC-LESS Presentation” – Advanced - “PC-LESS Presentation” reads image data from memory cards inserted into SD or USB slot and perform followings. SD Memory and SD Wireless card can not be inserted at the same time. - Thumbnail display (Section 4.2.1) - Display in full screen (Section 4.2.2) - Slide show (Section 4.2.3)

  • Page 147: Thumbnail Display

    4. Utilize projector – Advanced - 4.2 Utilize “PC-LESS Presentation” – Advanced - (Continued) Following picture and movie files can be displayed. • JPEG (.jpeg, .jpg) * Progressive is not corresponded. • BMP (.bmp) • PNG (.png) • MPEG4 (.mp4) * Supported bit resolution rate is less than 1Mbps in Simple Profile.
  • Page 148 4. Utilize projector – Advanced - 4.2 Utilize “PC-LESS Presentation” – Advanced - (Continued) Following operations can be accessible while thumbnail is displayed. ▲/◄/►/▼ Move cursor. Remote control/Keypad PAGE UP PAGE DOWN Switch pages. Remote control ENTER Remote control Display selected image in full screen. INPUT Keypad MENU...

  • Page 149: Display In Full Screen

    4. Utilize projector – Advanced - 4.2 Utilize “PC-LESS Presentation” – Advanced - (Continued) 4.2.2 Display in full screen Full screen display (fig.4.2.2) shows a full display image on the PC. To make Full- screen display, click [MENU] button in the Web Remote Control menu on the screen.
  • Page 150 4. Utilize projector – Advanced - 4.2 Utilize “PC-LESS Presentation” – Advanced - (Continued) You can display the image file with your desired size. 1) Select the DISPLAY SIZE in PC-LESS PRESENTATION Menu. 2) Press the Enter button on the remote control or ►...

  • Page 151: Slide Show

    4. Utilize projector – Advanced - 4.2 Utilize “PC-LESS Presentation” – Advanced - (Continued) 4.2.3. Slide show Slide show (fig.4.2.3) displays a full screen image and move to the next interval. Click the “SLIDE SHOW” button in Web Remote Control, then Slide show will be played.
  • Page 152 4. Utilize projector – Advanced - 4.2 Utilize “PC-LESS Presentation” – Advanced - (Continued) You can also play the Slide show with the projector Menu. Select “SLIDE SHOW” on PC-LESS PRESENTATION Menu. And press the Enter button on the remote control or ► button on Keypad. Then Slide show will start. You can play the Slide show at your desired configuration.

  • Page 153: Directory Display

    4. Utilize projector – Advanced - 4.2 Utilize “PC-LESS Presentation” – Advanced - (Continued) 4.2.4 Directory display Directory display (Fig.4.2.4) shows saved directories and files including undisplayable files in the memory card on the tree structure. Click the “DIRECTORY” button in the Web Remote Control, then the directory tree will be displayed.
  • Page 154 4. Utilize projector – Advanced - 4.2 Utilize “PC-LESS Presentation” – Advanced - (Continued) Following operations can be accessible while directory is displayed. ▲/▼ Moving selected item upward or downward. ► Open the closed folder. ◄ Close the folder. PAGE UP PAGE DOWN Show undisplayed portion if the tree display is not fit inside the screen.
  • Page 155 4. Utilize projector – Advanced - 4.2 Utilize “PC-LESS Presentation” – Advanced - (Continued) You can also display the directory with the projector Menu. Select “DIRECTORY” in PC-LESS PRESENTATION Menu. And press the Enter button on remote control or ► button on Keypad. Then directory will be displayed. [File information display] File information display shows following information.
  • Page 156 4. Utilize projector – Advanced - 4.2 Utilize “PC-LESS Presentation” – Advanced - (Continued) 4.2.5 “PC-LESS Presentation” error message Error message is displayed at a specific condition while “PC-LESS Presentation” mode. It appears at the bottom and the gray area of screen. Fig.

  • Page 157: Playlist

    4. Utilize projector – Advanced - 4.3 Playlist Playlist is a DOS format text file, which decides the order of displayed still image files or moving image files in the thumbnail or the slide show. Playlist file name is [imagelistdir.txt]. It is created in each folder when “PC-LESS Presentation”...

  • Page 158: Failure & Warning Alerts Via E-Mail

    4. Utilize projector – Advanced - 4.4 Failure & Warning Alerts via E-mail The projector can automatically send an alert to specified e-mail addresses when the projector requires maintenance or has encountered an error. NOTE • Up to five e-mail addresses can be specified. •...
  • Page 159 4. Utilize projector – Advanced - Mail Settings (Continued) 8) Configure the Failure/Warning Alerts via E-mail settings. Click [Alert Settings] on the main menu. 9) Select and configure each alert item. Refer to [Alert Settings] in [Configuring and Controlling the Projector via a Web Browser] for further information. 10) Click the [Apply] button to save the settings.

  • Page 160: Projector Management Via Snmp

    4. Utilize projector – Advanced - 4.5 Projector management via SNMP When SNMP is enabled, the projector is able to send Failure/Warning Alerts to a specified PC. NOTE • It is recommended that SNMP functions be carried out by a network administrator.

  • Page 161: Controlling The Projector Via Scheduling

    4. Utilize projector – Advanced - 4.6 Controlling the Projector via Scheduling The projector can be automatically controlled via scheduling. NOTE • You can schedule the following control events: Power ON/OFF, Input Source and Transferred Image Display. • There are 3 types of Scheduling, 1) daily 2) day of the week 3) specific date. •...
  • Page 162 4. Utilize projector – Advanced - Date/Time Settings (34) The Date/Time setting can be adjusted via a web browser. Example: If the IP address of the projector is set to 192.168.1.10/: 1) Enter [http://192.168.1.10] into the address bar of the web browser. Enter the Administrator ID and Password and click [Logon].
  • Page 163 4. Utilize projector – Advanced - Schedule Settings (32) Schedule settings can be configured from a web browser. Example: If the IP address of the projector is set to 192.168.1.10: 1) Enter [http://192.168.1.10/] into the address bar of the web browser. 2) Enter the Administrator ID and Password and click [Logon].

  • Page 164: E-Shot (Still Image Transfer) Display

    4. Utilize projector – Advanced - 4.7 e-SHOT (Still Image Transfer) Display The projector can display a still image that is transferred via the network. e-SHOT transmission requires an exclusive application for your PC. You can download it from the Hitachi web site (http://hitachi.us/digitalmedia). Refer to the manual for the application for instructions.

  • Page 165: Command Control Via The Network

    4. Utilize projector – Advanced - 4.8 Command Control via the Network You can configure and control the projector via the network using RS-232C commands. Communication Port The following two ports are assigned for the command control. TCP #23 TCP #9715 NOTE •...
  • Page 166 4. Utilize projector – Advanced - Command Control Settings (Continued) When the authentication setting is enabled, the following settings are required. (36) 7) Click [Security Settings] on the main menu. 8) Click [Network Control] and enter the desired authentication password. * See NOTE1.

  • Page 167: Connection

    4. Utilize projector – Advanced - Command format Command formats differ among the different communication ports. TCP #23 You can use the RS-232C commands without any changes. The reply data format is the same as the RS-232C commands. However, the following reply will be sent back in the event of authentication failure when authentication is enabled.
  • Page 168 4. Utilize projector – Advanced - Reply Data format The connection ID (the data is same as the connection ID data on the sending data format) is attached to the RS-232C commands reply data. <ACK reply> Connection Reply 0x06 1 byte <NAK reply>...
  • Page 169 4. Utilize projector – Advanced - Automatic Connection Break The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established. Authentication The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm.
  • Page 170 5. Troubleshooting 5. Troubleshooting Reference Problem Likely Cause Things to Check Page Number The projector is not turned Is the projector's lamp on? No image The projector's input source Is the projector switched to isn't switched to MIU. MIU? Check both the PC and projector's network settings.
  • Page 171 5. Troubleshooting Reference Problem Likely Cause Things to Check Page Number Try setting the image Lots of The compression rate compression to "High." interference in being used for transferring • You may experience a the images the images is too high. drop in speed.
  • Page 172 6. Specifications 6. Specifications Item Specifications Product name Liquid crystal projector File format JPEG, PNG, BMP and MPEG4 Control software Dedicated PC application and Web browser Corresponding protocol TCP/IP, DHCP client and HTTP server Firmware OS μITORN4.0 compliance Wireless LAN (IEEE802.11g) Network (Ad-Hoc and Infrastructure modes) Ethernet (100Base-TX/10Base-T)
  • Page 173 7. Warranty and After-sales service 7. Warranty and After-sales service If a problem occurs with the equipment, first refer to the “5. Troubleshooting” (80) section and run through the suggested checks. If this does not resolve the problem, contact your dealer or service company. They will tell you what warranty condition is applied.
  • Page 174 Audio Visual Products 2900 Dukane Drive Toll-free: 800-676-2487 St. Charles, Illinois 60174 Fax: 630-584-5156 www.dukcorp.com/av e-mail: avsales@dukcorp.com #401-8776-W-00...

Table of Contents
