Summary of Contents for Ironton 29559

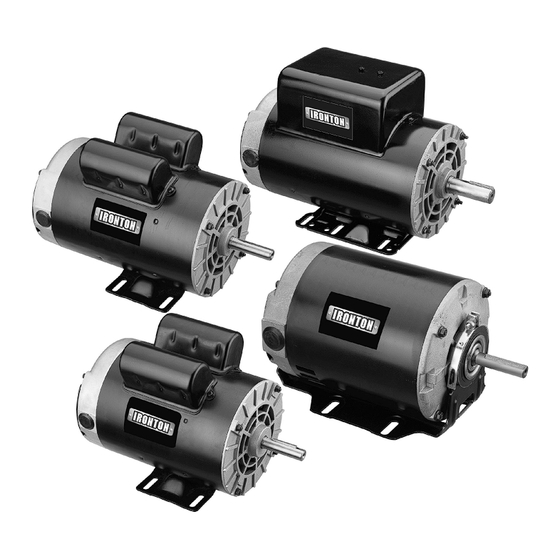

- Page 1 ELECTRIC MOTOR OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item#s 29559, 29560, 29624, 29625...
- Page 2 Thank you very much for choosing an Ironton™ product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or install this Electric Motor until they have read this manual and have developed a thorough understanding of how the Electric Motor works. -
Page 4: Personal Safety
Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any adapter plugs. Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. -
Page 5: Initial Inspection And Handling
Use safety apparel and equipment. Use safety goggles or safety glasses with side shields which comply with current national standards, or when needed, a face shield. Use as dust mask in dusty work conditions. This applies to all persons in the work area. Also use non-skid safety shoes, hardhat, gloves, dust collection systems, and hearing protection when appropriate. -
Page 6: Power Source
Use only UL listed Hazardous Location motors for service in Hazardous Locations as defined in Article 500 of the NEC. Temperature around the motor (ambient) should not exceed 104°F (40°C), unless motor nameplate states otherwise. Minimum temperature is -20°F (-29°C). WARNING Not for fans in unattended areas. -
Page 7: Starting Motor
Table A – Minimum Wire Sizes for Single-Phase Motors (*) Type S, SO, SJ, SJO, etc. flexible cable wire sizes. See NEC Article 400 for ampacity. NEC Article 310-5 — Minimum conductor size for general wiring at 115-440VAC is No. 14AWG. NOTE: Above wire sizes based on approximate 5% voltage drop during starting;... -
Page 8: Recommended Maintenance
Exercise caution with solvents; some solvents may attack motor insulation, finish or bearing lubricants; some are highly flammable. If solvents are used, make sure area is well ventilated. Ironton ball bearing motors without lubrication provision do not require periodic relubrication. Where motor has provision for bearing lubrication, lubricate as follows: 1. - Page 9 Page of 10...
- Page 10 For technical questions please call 1-800-222-5381. WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
