Summary of Contents for Areva P-2M

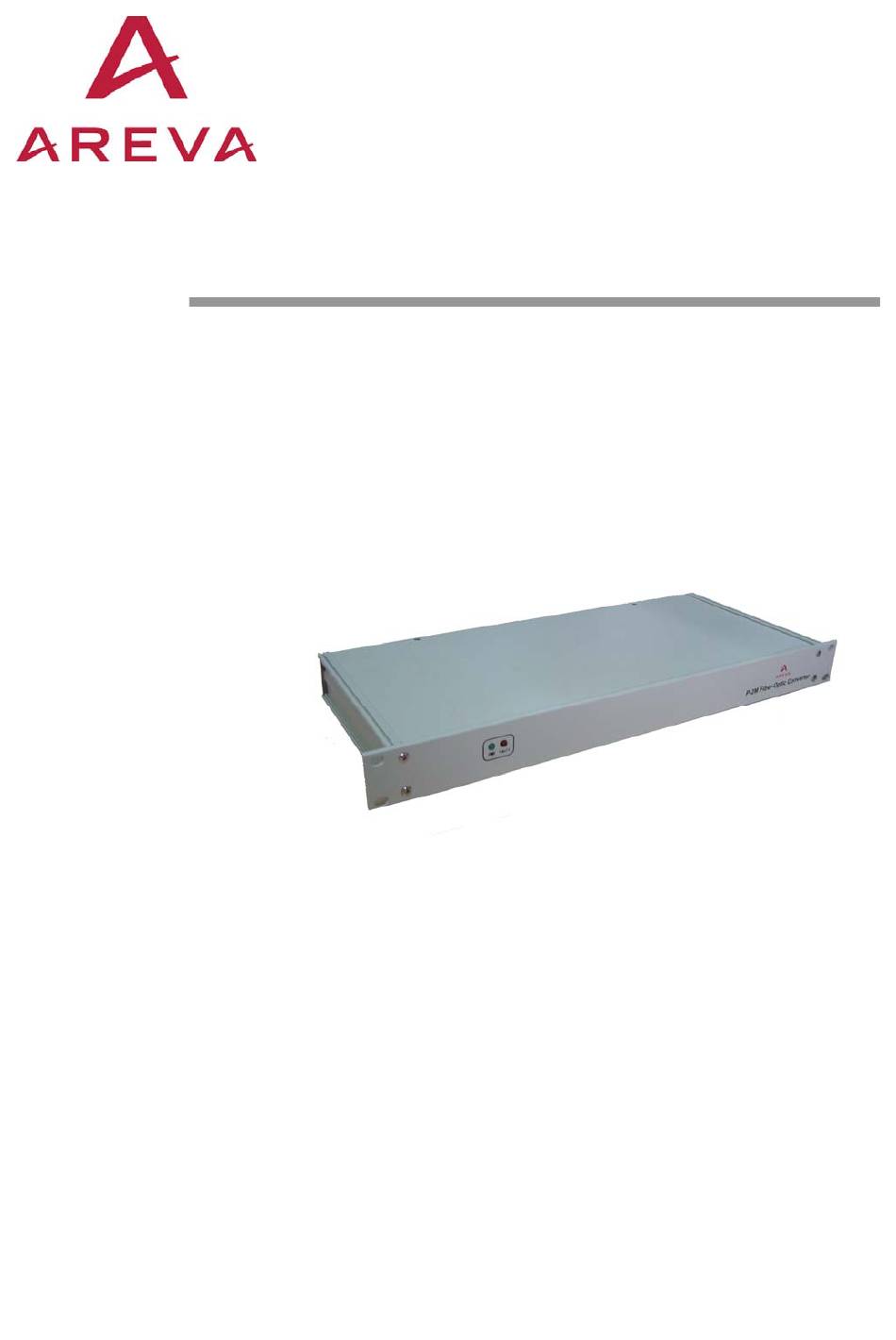

- Page 1 P-2M Fiber-Optic Converter USER’s Manual V2.1...
-
Page 2: General Description
64Kbit/s or 2048Kbit/s). The converters can be connected to a telecom network to expand the Teleprotection Equipment's communication dis- tance. The P-2M has the fault alarm indicator and alarm relay output nodes. 2. Typical Application The typical application of P-2M... - Page 3 850nm(mulitimode) 1 unit 64Kbit/s 48Vdc 1310nm(single mode) 2 units 4. Signal Interface and Connection The P-2M Fiber-Optic Converter’s front and rear panels are shown in the attached figure. 4.1 Indicators The front panel has 2 LED indicators Name Color Description...
- Page 4 P-2M User’s Manual V2.1 4.2 Power supply interface and alarm relay 4.2.1 P-2M1xxx The P-2M1xxx’s power supply and relay co-exist in a 6-pins connector, which is a product of PHOENIX CONTACT Ltd. (model: MSTB2.5/6-GF-5.08）and should match the relevant plug (model: MSTB2.5 /6-STF-5.08).The definitions of its pins are...
- Page 5 P-2M User’s Manual V2.1 4.2.2 P-2M2xxx The P-2M2xxx’s power supply , relay and the PCM interface node co-exist in a 10-pins connector, which is a product of POENIX CON- TACT Ltd. (model: MSTB2.5/10-GF-5.08）and should match the relevant plug (model: MSTB2.5/10-STF-5.08).The definitions of its pins are same as P-2M1xxx.
- Page 6 P-2M User’s Manual V2.1 4.3.2 P-2M2xxx The P-2M2xxx’s electric signal port connected to the multiplexer, is also called PCM interface, co-exists in a 10-pins connector with the power supply and the relay interface the input of a pair of 120Ω balance electric sig-...
- Page 7 P-2M User’s Manual V2.1 4.4 The optical interface connected to the protective relays The optical signal interface connected to the protective relays is a pair of ST optical con- nectors. the optical receiver the optical sender The different between P-2MxxAx and P-2MxxBx...
- Page 8 P-2M User’s Manual V2.1 5. Installation and Operation 5.1 Installation The P-2M is in a standard 19” 1U rack, and can be installed directly. 5.2 Cables connection The cables should be connected correctly as the above men- tioned. The length of cables connected to the multiplexer should not be more than 100 m.
-
Page 9: Technical Specifications
P-2M User’s Manual V2.1 6 Technical Specifications 6.1 Optical interface P-2MxxAx P-2MxxBx Typical distance ≤1Km ≤10Km Wave length 850nm 1310nm Fiber type multi-mode Single-mode Optical Output Power -19.8dBm（50/125um） -13.0dBm（G.652） Receive Sensitivity -25.4dBm -30dBm Connector 6.2 Electric interface P-2M1xxx P-2M2xxx Protocols G.703.6 2048kbit/s... - Page 10 P-2M User’s Manual V2.1 6.4 Power Supply P-2Mx1xx P-2Mx2xx Supply voltage 85VDC~264VDC 36VDC~72VDC Power consumption <4W <4W 6.5 Environment Operating temperature range C～+45 Storage temperature range C～+70 6.6 Dimensions The unit is intended to be mounted in a 19” 1U rack.
- Page 11 P-2M User’s Manual V2.1 7 Technical support We will provide overall technical support for our products, including before sales (system plan, products selection), after sales (product application, update and maintenance). Please contact us whenever you meets any problem, we will provide you satisfactory solution on time.
- Page 12 P-2M User’s Manual V2.1 Attachment Fig: front and rear panel sketch-map AERODEV○...
