Single Line Diagram; Warnings - Victron energy MultiPlus-II Manual

External transfer switch

Hide thumbs Also See for MultiPlus-II:

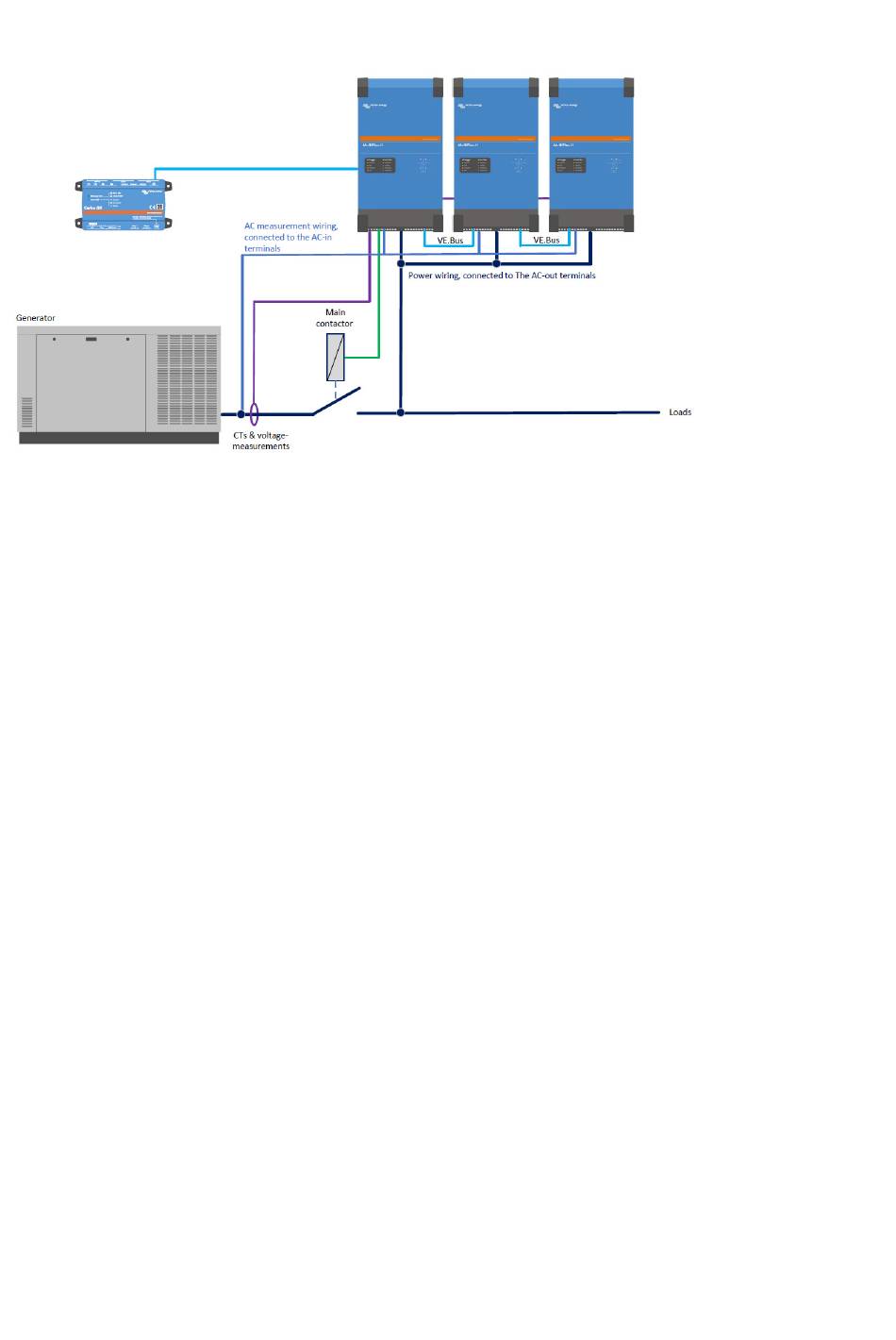

Single line diagram

See the appendix for the full-size connection diagrams.

Parallel and Multiphase systems are complex. We do not support or recommend that untrained

and/or inexperienced installers work on these size systems.

Double-check the wiring before the system's initial power-up. Wiring mistakes can damage the

MultiPlus-II units.
