ASFX2 FILM ROLLER ASSEMBLY
BOTTOM OF PLATFORM

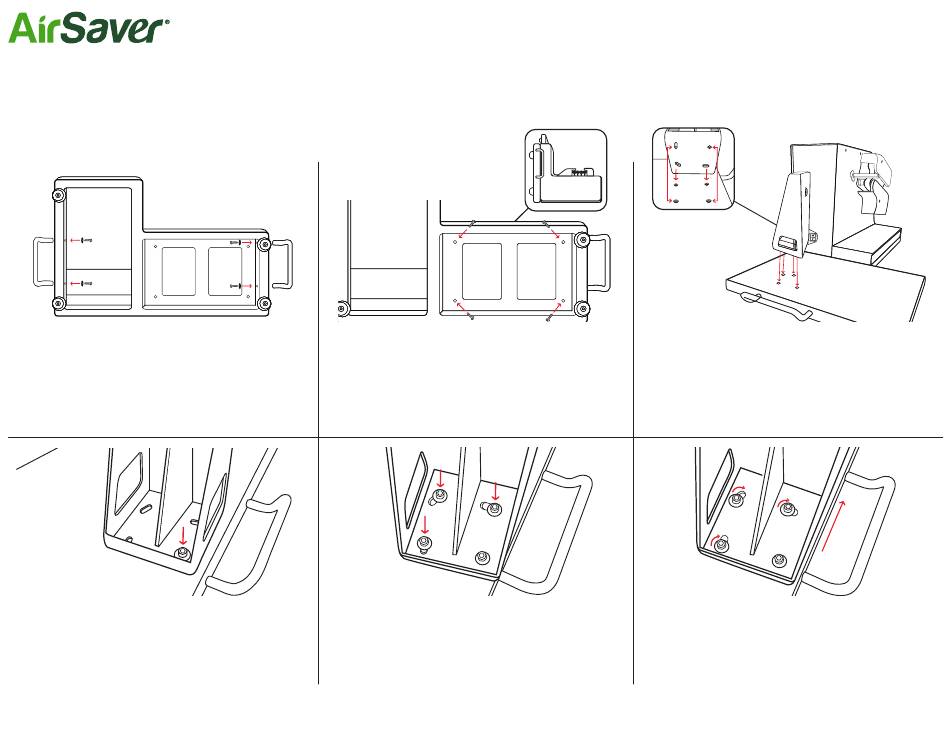

1. INSTALL THE HANDLES ON BOTH SIDES OF THE
PLATFORM USING THE APPROPRIATE ALLEN WRENCH
AND BOLTS WITH WASHERS.
4. IN THE BOTTOM RIGHT CORNER, USE THE ALLEN
WRENCH TO BOLT DOWN THE WASHER. DO NOT TIGHTEN
UNTIL STEP 6.
2. PLACE THE PLATFORM AND MACHINE ON ITS SIDE
LINING UP THE HOLES ON THE MACHINE TO THE BOLT
HOLES ON THE PLATFORM. SECURE THE MACHINE TO THE
PLATFORM USING THE SCREWS WITH NO WASHERS.
5. SCREW IN THE OTHER THREE BOLTS WITH THE WASHER
USING THE ALLEN WRENCH. DO NOT TIGHTEN UNTIL
STEP 6.
3. PLACE PLATFORM UPRIGHT. LINE UP FILM HOLDER
WITH THE FOUR BOLT HOLES.
6. WITH ALL FOUR BOLTS IN PLACE, TWIST THE FILM
HOLDER CLOCKWISE INTO PLACE. ONCE PROPERLY
ALIGNED, TIGHTEN ALL FOUR BOLTS.
