Summary of Contents for Mighty Mule MMB200

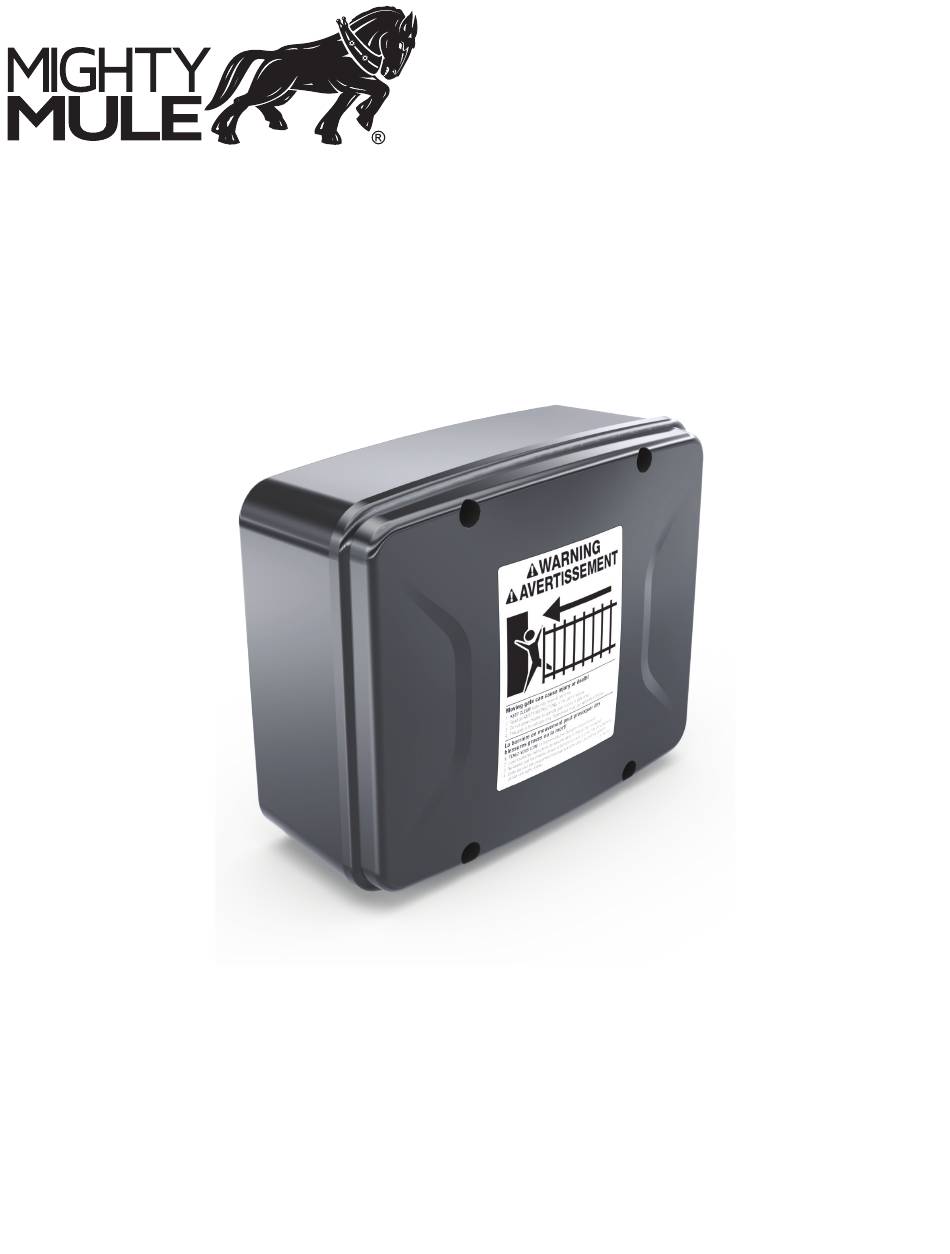

- Page 1 MMB200 Mighty Mule Battery Enclosure Kit Installation Instructions...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Enclosure Kit Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Package Contents . -
Page 3: Enclosure Kit Installation Options
The Control Box Cover is then attached to the to the Control Box . The provided Battery Enclosure Kit Cover may be discarded . See Mount the Battery Enclosure Kit, page 6, followed by Battery Harness Installation, page 7 . MMB200 Installation Instructions... -
Page 4: Package Contents
. (1) Strain Relief Fitting (2) IDC Self Stripping Connectors NOTE: Use of the supplied IDC Connector will not void your Mighty Mule product warranty . (1) Battery Harness A (1) Battery Harness B Nortek Security & Control LLC... -
Page 5: Tools Required
TOOLS REQUIRED Phillips Head Screwdriver Wire Stripper (for use in cutting wires) or Wire Cutters (Optional) Pliers (May be used to press and secure the IDC Self Stripping Connectors .) Drill with 1/2” and 7/32” Drill Bits MMB200 Installation Instructions... -
Page 6: Mount The Battery Enclosure Kit
MOUNT THE BATTERY ENCLOSURE KIT Insert the Strain Relief fitting into the access hole on the bottom of the Battery Enclosure Kit, then snap it into place . Identify a suitable mounting location for the Battery Enclosure Kit . Once you’ve identified a suitable mounting location, mount the Battery Enclosure Kit using the provided mounting screws . -
Page 7: Battery Harness Construction
Feed the spliced end of Battery Harness A (connected to the MM271 Control Box) through the Strain Relief fitting from underneath the Battery Enclosure Kit . The wiring harness will then need to be constructed and sealed inside the Battery Enclosure Kit . MMB200 Installation Instructions... - Page 8 Press black cap down to secure Press black cap down to secure Connected to MM271 Control Box Splice the two harness sections together using the two provided IDC Self Stripping Connectors, ensuring that the new harness will rest within the Battery Enclosure Kit . Insert alike wires (Black-to-Black and Red-to-Red) into one connector, then use press firmly with your thumb (or use a tool) to press down on the black cap to snap and secure the connection .
-
Page 9: Mm272W, Mm371W, Mm372W, Ts571W
NOTE: Either end of the newly constructed Battery Harness may be connected to the first battery . The opposite battery connection is available for a second battery . See Control Box – Battery Enclosure Kit Connection, page 14 . MMB200 Installation Instructions... - Page 10 MM271/MM272W BATTERY INSTALLATION This section covers battery installation for the MM271 and MM272W, however, the separate Control Box option can be used for MM371W, MM372W and TS571W installations . See MM371W, MM372W, TS571W Battery Enclosure Kit Setup, page 14, for instructions on the preferred method for MM371W, MM372W and TS571W installations . The battery harness feeds through the hole of the Strain Relief fitting at the bottom of the...
- Page 11 NOTE: If no second battery is to be installed, leave the second battery set of connectors not connected . With the battery(s) in place and connected to the wiring harness, use the four provided screws to secure the Battery Enclosure Kit cover . MMB200 Installation Instructions...
-
Page 12: Mm271 Battery Enclosure Kit Setup
MM271 BATTERY ENCLOSURE KIT SETUP MM271 Control Box – Battery Enclosure Kit Connection POWER STALL AUTO CLOSE LED3 FORCE TIME CHGR CHGR VAR1 SAFETY VAR3 EXIT VAR4 STATUS CYCLE VAR5 EDGE VAR6 VAR3 LOCK+ LOCK - ANT SHLD M_BLK M_RED VAR2 ON OFF BATT-... -
Page 13: Mm272W Battery Enclosure Kit Setup
SEC. STALL FORCE AUTO CLOSE PWR. LIMIT REMOVE JUMPER FOR PUSH TO OPEN OPTION SFTY. ≤JP1 VAR1 EXIT VAR2 CYCLE VAR3 EDGE VAR4 SENSOR COMMON VAR5 LOCK+ LOCK– BATT + BATT – CHARGE SOLA VAR6 ON OFF MMB200 Installation Instructions... -
Page 14: Mm371W, Mm372W, Ts571W Battery Enclosure Kit Setup
MM371W, MM372W, TS571W BATTERY ENCLOSURE KIT SETUP Control Box – Battery Enclosure Kit Connection Control Box 1 2 3 4 5 RESET AUTO CLOSE TERM6 BAT+ + – BAT– LOCK Battery Power Access In order to install the Battery Kit, you’ll need to provide wiring access from the Control Box to the Battery Enclosure Kit . With a drill and 1/2”... - Page 15 Use a 7/32” drill bit to drill out the holes required to secure the Control Box to the Battery Enclosure Kit . Use #10-14 x 3/4” Screws to attach the Control Panel to the Battery Enclosure Kit . NOTE: Control Box mounting screws are not included with MM371W and MM372W . MMB200 Installation Instructions...
- Page 16 Secure the cover with the four provided screws . Mighty Mule Sales: 800-543-4283 | Mighty Mule Technical Service 800-543-1236 For more information on Mighty Mule’s full line of Automatic Gate Operators, Gate Openers and Access Controls visit www .mightymule .com ©2021 Nortek Security &...
